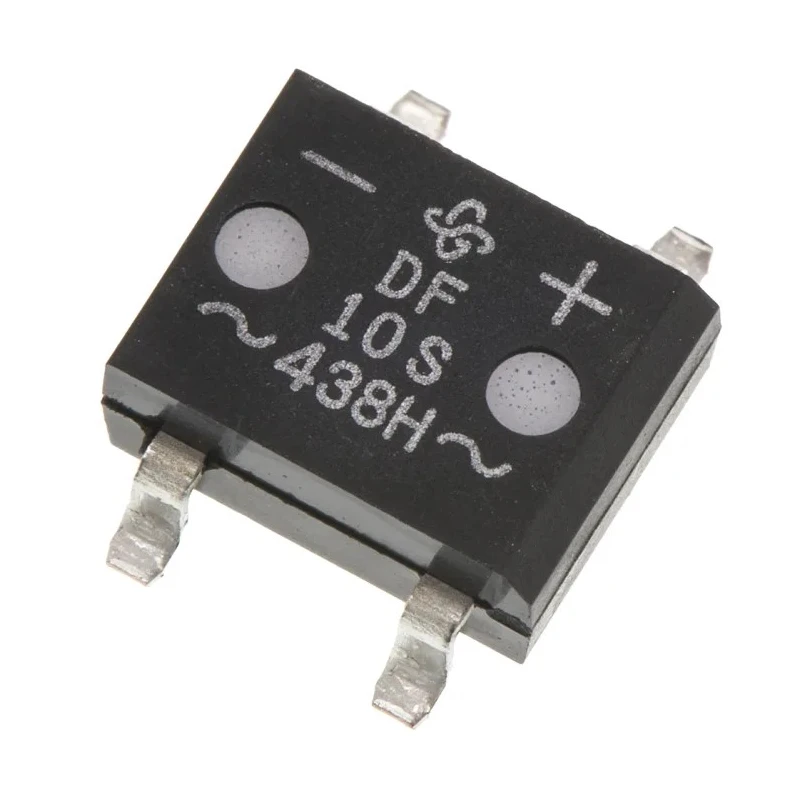

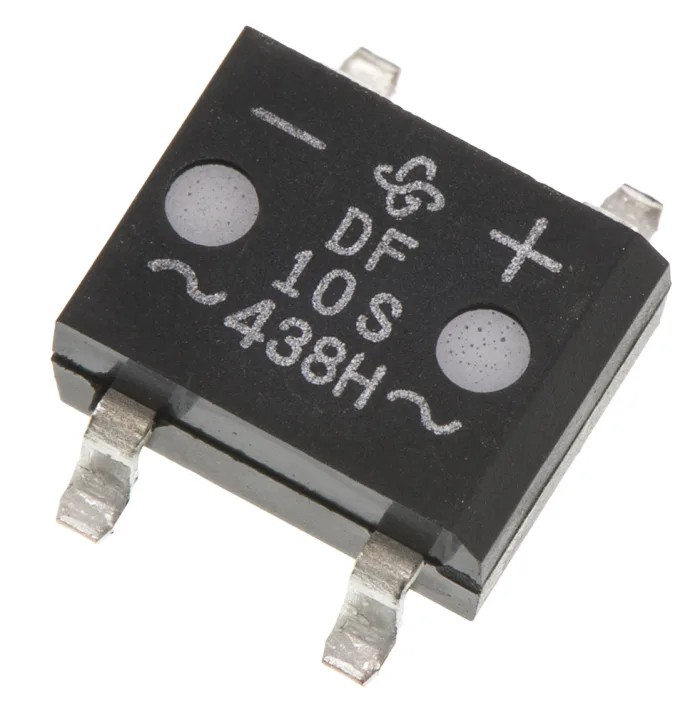

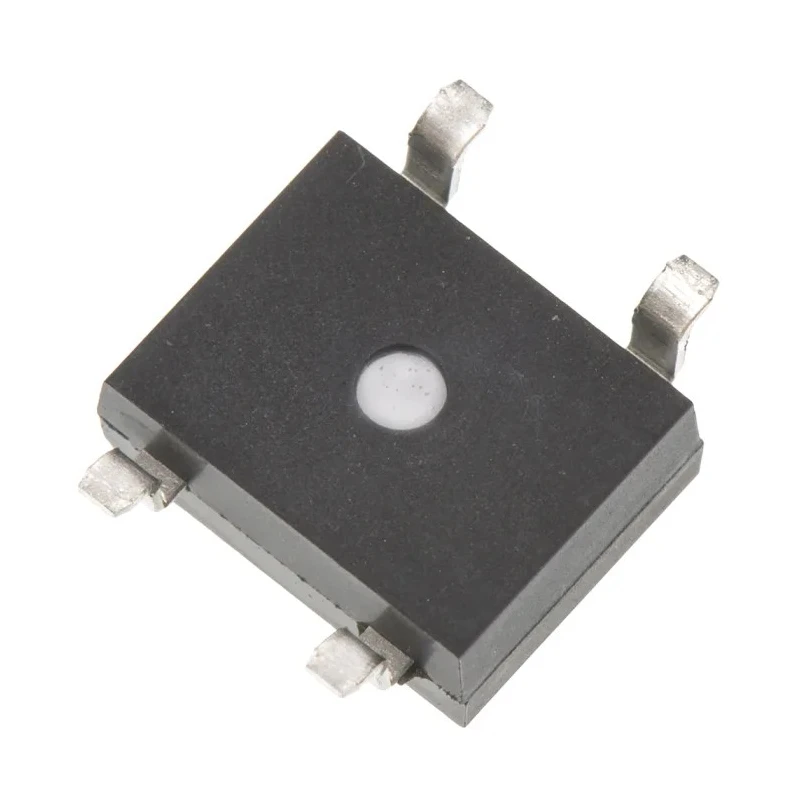

Vishay Bridge Rectifier 1000 V 50 A 4-Pin Surface Mount DFS Package DF10S-E3/77

Vishay DF10S-E3/77 bridge rectifier is a discrete semiconductor designed for converting alternating current (AC) input into direct current (DC) output through full-wave rectification. This 4-pin single-phase device is housed in a compact DFS surface mount package, offering a minimal footprint combined with outstanding thermal management, suitable for modern automated PCB assembly lines.

The rectifier features a peak reverse repetitive voltage rating of 1000 V and is capable of delivering a continuous forward current of 1 A, with a peak non-repetitive surge current of up to 50 A, making it robust for transient conditions in power supply circuits. Thermal operation spans from -55°C to 150°C, ensuring consistent performance under varying environmental conditions.

Design considerations include a low peak forward voltage of 1.1 V and minimal peak reverse current of 5 μA, promoting energy efficiency and low power dissipation. The device is suited for industrial machinery, HVAC systems, power electronics, and manufacturing equipment requiring reliable AC to DC conversion.

The DFS package's compact dimensions (8.51 mm length x 6.5 mm width x 3.3 mm height) aid in space-saving circuit layouts without compromising electrical performance. It is optimized for high reliability and long service life, meeting stringent industrial standards, although it does not carry automotive-specific certifications.

Set this rectifier as a key component in power rectification circuits where surge handling and durability are essential. It is compatible with reflow soldering processes, facilitating efficient assembly in automated production environments.

Full-wave rectification converting AC to DC output for power electronics. High surge current capability enhances circuit robustness. Compact DFS package with dimensions 8.51 mm x 6.5 mm x 3.3 mm. Wide operating temperature range from -55°C to 150°C.

Low peak forward voltage of 1.1 V reduces energy losses. Low peak reverse current of 5 μA ensures minimal leakage. Designed for automated PCB surface mount assembly and reflow soldering. Suitable for applications in industrial, HVAC, manufacturing, and power supply sectors.
