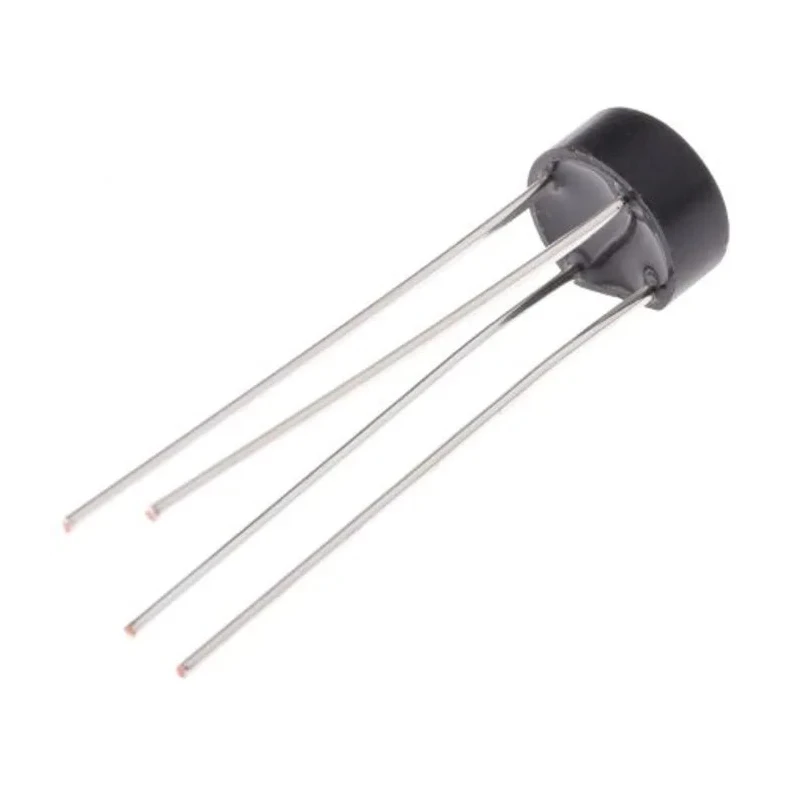

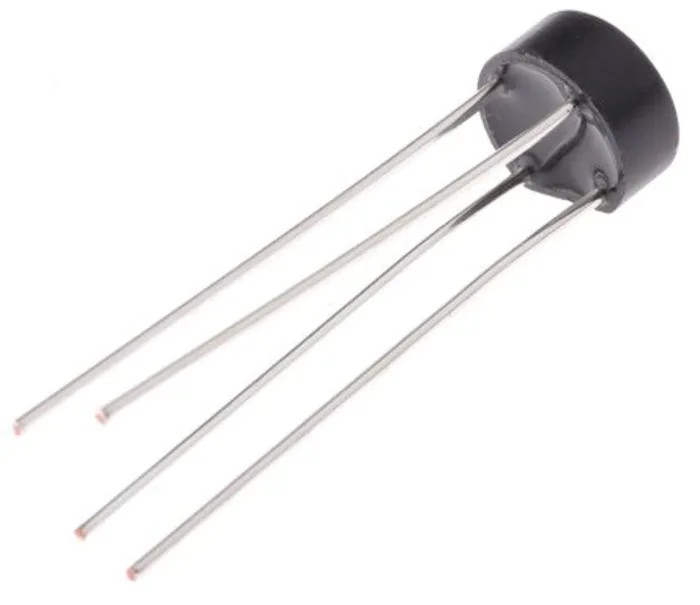

Vishay Bridge Rectifier 200 V 50 A Through Hole Mount, 4-Pin Single Configuration B125C1500G-E4/51

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 200 V 50 A Through Hole Mount, 4-Pin Single Configuration B125C1500G-E4/51

Name: Vishay Bridge Rectifier 200 V 50 A Through Hole Mount, 4-Pin Single Configuration B125C1500G-E4/51
Brand: Vishay
SKU: 376348
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	5.6mm
Length	9.86mm
Model	B125C1500G-E4/51
Width	8.84mm
Mount Type	Through Hole
Series	B125C1
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	WOG
Minimum Operating Temperature	-40°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	200V
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	1.6A
Peak Forward Voltage Vf	1V

Key Features

Operates at peak reverse repetitive voltage of 200 V.
Forward current rating is 1.6 A with a peak forward voltage of 1 V.
Maximum operating temperature reaches up to 125°C.
Features low forward voltage drop and high dielectric strength case.
Peak non-repetitive forward surge current is 50 A.
Designed for printed circuit board through hole mounting with wire lead structure.
Wide operating temperature range from -40°C to 125°C.
High reliability and thermal performance for industrial applications.

Product Description

Vishay B125C1500G-E4/51 Bridge Rectifier is a robust semiconductor device designed for converting alternating current (AC) input into direct current (DC) output, employing single phase full-wave rectification. It features a 4-pin single configuration with a through hole mount suitable for printed circuit boards, ensuring secure installation and reliable connections in electronic circuits.

This bridge rectifier is rated for a peak reverse repetitive voltage of 200 V and a forward current of 1.6 A, with a peak forward voltage of 1 V, making it suitable for medium power applications requiring effective AC to DC conversion. Its high peak non-repetitive forward surge current capacity of 50 A enables it to withstand transient current spikes efficiently.

The device operates reliably under a wide temperature range from -40°C up to a maximum of 125°C. The compact package dimensions (Length 9.86 mm, Width 8.84 mm, Height 5.6 mm) and wire lead structure provide excellent thermal performance and ease of mounting in various industrial, manufacturing, and electronic applications.

Designed to meet industrial quality standards, this bridge rectifier exhibits low forward voltage drop and high dielectric strength, enhancing efficiency and durability in power conversion circuits. Although it does not include automotive standards or specific approvals, it serves effectively in laboratory, industrial controls, and power supply applications.

Operates at 200 V peak reverse repetitive voltage. Rated forward current of 1.6 A with low forward voltage drop. High surge current capacity of 50 A for transient tolerance. Suitable for PCB through hole mounting with wire lead structure.

Compact dimensions for space-constrained designs. Wide operating temperature range from -40°C to 125°C. High dielectric strength case ensures electrical isolation and safety. Provides reliable full-wave rectification in AC to DC conversion.

Ideal for industrial, manufacturing, electronics, and power supply use cases.

Choose Vishay Bridge Rectifiers for efficient and reliable AC to DC conversion in industrial and electronic equipment. Explore more power semiconductor devices and related components in our Electronics & Electricals category on EnvMart.
