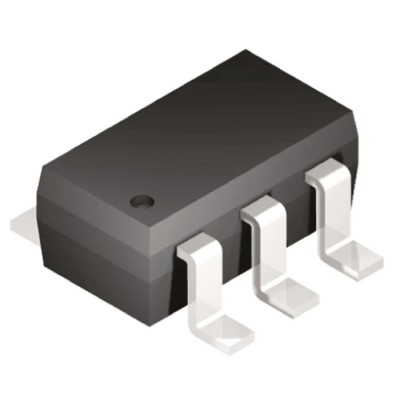

Texas Instruments 4-Element Uni-Directional ESD Protection Array, 45 W, 6-Pin SOT-23 TPD4E1U06DBVR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.3mm |
| Length | 3.05mm |
| Model | TPD4E1U06DBVR |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TPD4E1U06 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 3 |
| Pin Count | 6 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 15V |
| Diode Configuration | Complex Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.5V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Peak Pulse Power Dissipation Pppm | 45W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 3A |
| Maximum Reverse Leakage Current | 10nA |
Key Features
- Uni-directional diode configuration ensures precise ESD protection.
- Compact SOT-23 surface mount package with 6 pins.
- Peak pulse power dissipation of 45 W for robust transient suppression.
- Operates reliably between -40°C to 125°C maximum temperature.
- Minimum breakdown voltage of 6.5 V and maximum reverse stand-off voltage of 5.5 V.
- Low maximum reverse leakage current of 10 nA minimizes power loss.
- Designed for USB 3.0 interface surge protection at 6 Gbps speeds.
- Array contains 4 elements per chip for multi-line protection.
Product Description
Texas Instruments TPD4E1U06DBVR is a 4-element uni-directional electrostatic discharge (ESD) protection array designed for sensitive electronic components. Featuring a peak pulse power dissipation of 45 W and housed in a compact 6-pin SOT-23 surface mount package, this device is optimized for high performance transient voltage suppression.
Its uni-directional diode configuration and low leakage current (10 nA max) provide effective ESD, over voltage (OVP), and over current protection (OCP). The array's breakdown voltage is 6.5 V with a maximum reverse stand-off voltage of 5.5 V, and it clamps at 15 V to safeguard circuits during voltage spikes.
Operating within a temperature range of -40°C to 125°C, the TPD4E1U06DBVR is suitable for industrial, automotive, telecommunications, and computing applications. The device is ideal for protecting high-speed data lines such as USB 3.0 interfaces running at 6 Gbps.
The small 3.05 mm length, 1.75 mm width, and 1.3 mm height enable compact PCB layouts while delivering multi-line transient protection with four integrated elements per chip. This device supports enhanced electromagnetic interference (EMI) protection and current-limited load switching.
Uni-directional diode configuration for focused ESD protection. Compact 6-pin SOT-23 surface mount package. Peak pulse power of 45 W for transient suppression. Operational temperature from -40°C to 125°C. Minimum breakdown voltage of 6.5 V and max reverse stand-off voltage of 5.5 V.
Low maximum reverse leakage current of 10 nA. 4 elements per chip for multi-line protection. Clamping voltage of 15 V for circuit safety. Designed for USB 3.0 data line protection. Ideal for ESD, OVP, OCP, and EMI protection in electronic devices.
This ESD Protection Array is compliant with surface mount technology and designed to improve the reliability and lifespan of sensitive electronic circuits. Explore a wide range of advanced transient voltage suppressors and ESD protection devices in the EnvMart Electronics & Electricals category for semiconductor discrete components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the TPD4E1U06DBVR is 45 W, allowing for robust transient suppression.
This unit operates reliably within a temperature range of -40°C to 125°C.
The clamping voltage for this ESD protection array is 15 V, providing circuit safety during voltage spikes.
The TPD4E1U06DBVR contains 4 elements per chip, allowing for multi-line protection.
It features a uni-directional diode configuration, ensuring focused ESD protection.
This ESD protection array is housed in a compact SOT-23 surface mount package.
The minimum breakdown voltage for the TPD4E1U06DBVR is 6.5 V.
This device is designed for surge protection of USB 3.0 interfaces, suitable for high-speed data lines.
The dimensions of this model are 3.05 mm in length, 1.75 mm in width, and 1.3 mm in height.
This ESD protection array is suitable for applications in industrial, automotive, telecommunications, and computing environments.
