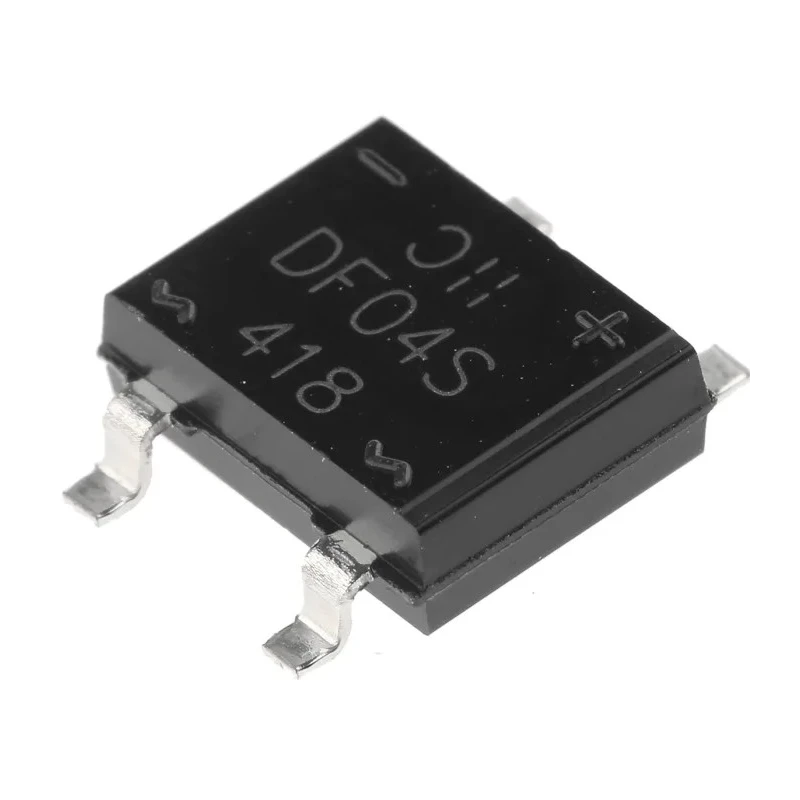

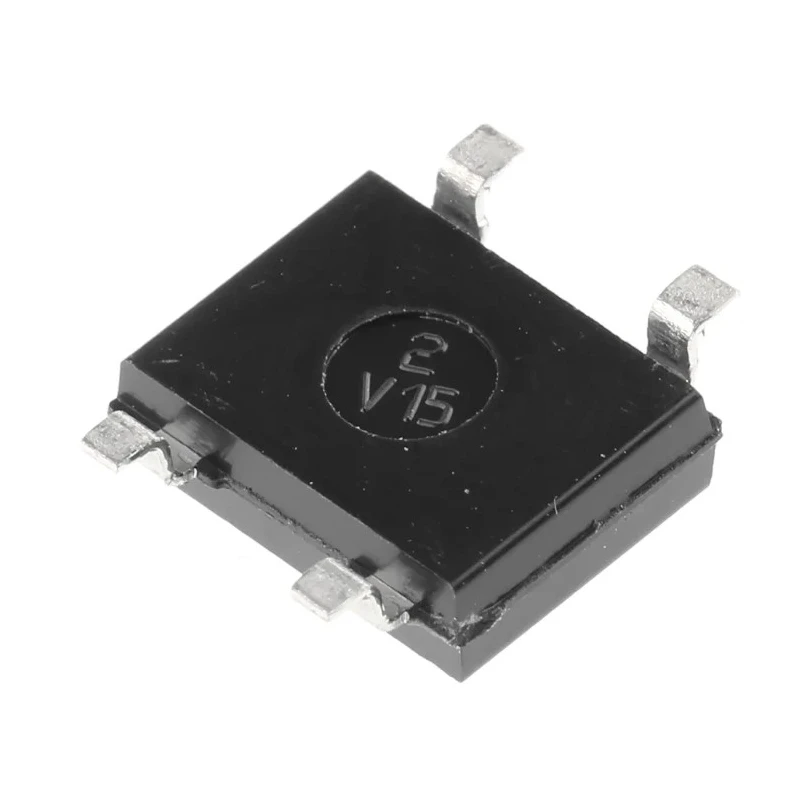

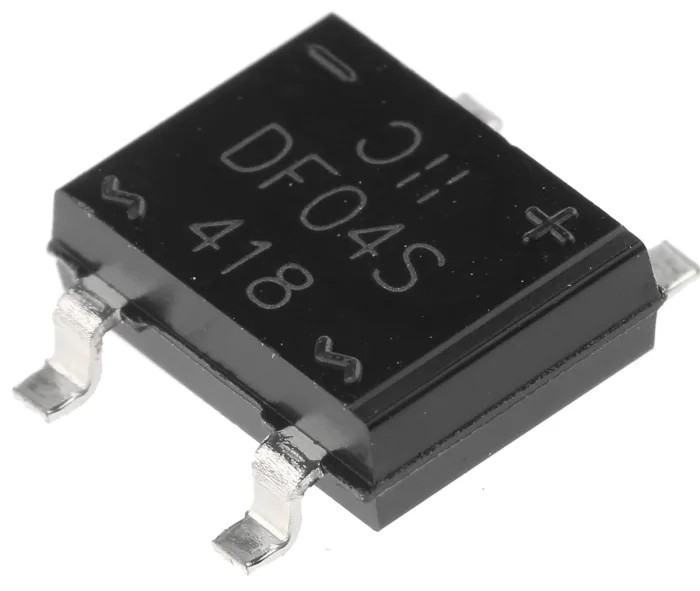

DiodesZetex Bridge Rectifier 400 V 50 A 4-Pin Surface Mount DFS Package DF04S-T

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Bridge Rectifier 400 V 50 A 4-Pin Surface Mount DFS Package DF04S-T

Name: DiodesZetex Bridge Rectifier 400 V 50 A 4-Pin Surface Mount DFS Package DF04S-T
Brand: DiodesZetex
SKU: 361496
Price: 0.3 USD
Availability: InStock



Category Bridge Rectifiers Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	2.6mm
Length	8.51mm
Model	DF04S-T
Width	6.5mm
Mount Type	Surface
Series	DF-S
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	DFS
Minimum Operating Temperature	-65°C
Number of Phases	1
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	738-5005PBrand: DiodesZetexManufacturers Part No.: DF04S-T
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	1A
Peak Forward Voltage Vf	1.1V

Key Features

Designed for PCB surface mount applications with a compact DFS package.
Glass passivated die construction for reliability and low forward voltage drop.
Operates at a maximum temperature of 150°C and minimum temperature of -65°C.
Rated forward current of 1 A and peak surge current of 50 A.
Forward voltage drop of 1.1 V and peak reverse current of 500 µA.
Constructed with a single-phase configuration having 4 pins for easy integration.
Package dimensions are 8.51 mm length, 6.5 mm width, and 2.6 mm height.
Suitable for converting AC input to DC output in power supply circuits.

Product Description

DiodesZetex DF04S-T Bridge Rectifier is a high-reliability semiconductor device designed for converting alternating current (AC) inputs into direct current (DC) outputs. This surface mount bridge rectifier features a DFS package with compact dimensions of 8.51 mm length, 6.5 mm width, and 2.6 mm height, optimizing space on printed circuit boards.

With a peak reverse repetitive voltage rating of 400 V and a forward current rating of 1 A, this bridge rectifier supports robust power handling capabilities. The diode’s glass passivated die construction ensures durability and a low forward voltage drop of 1.1 V, enhancing efficiency in power conversion applications.

It can operate reliably across a temperature range from -65°C to 150°C, making it suitable for various industrial and electronic environments. The device supports a peak non-repetitive forward surge current of 50 A, allowing it to handle transient current spikes effectively.

The 4-pin single-phase configuration simplifies PCB design and mounting, while the surface mount mount type facilitates automated assembly and improved production efficiency.

This bridge rectifier is ideal for industrial electronics, power supplies, and semiconductor applications, where efficient and reliable AC to DC conversion is critical. It is part of the DF-S series and does not conform to automotive standards, focusing on general electronic component markets.

Designed for PCB surface mount applications with a compact DFS package. Glass passivated die construction for reliability and low forward voltage drop. Operates at a maximum temperature of 150°C and minimum temperature of -65°C.

Rated forward current of 1 A and peak surge current of 50 A. Forward voltage drop of 1.1 V and peak reverse current of 500 µA. Constructed with a single-phase configuration having 4 pins for easy integration. Package dimensions are 8.51 mm length, 6.5 mm width, and 2.6 mm height.

Suitable for converting AC input to DC output in power supply circuits. Manufactured in China under the DF-S series with no automotive standards. Explore the range of DiodesZetex Bridge Rectifiers and related semiconductor components at EnvMart for reliable electronic design solutions.
