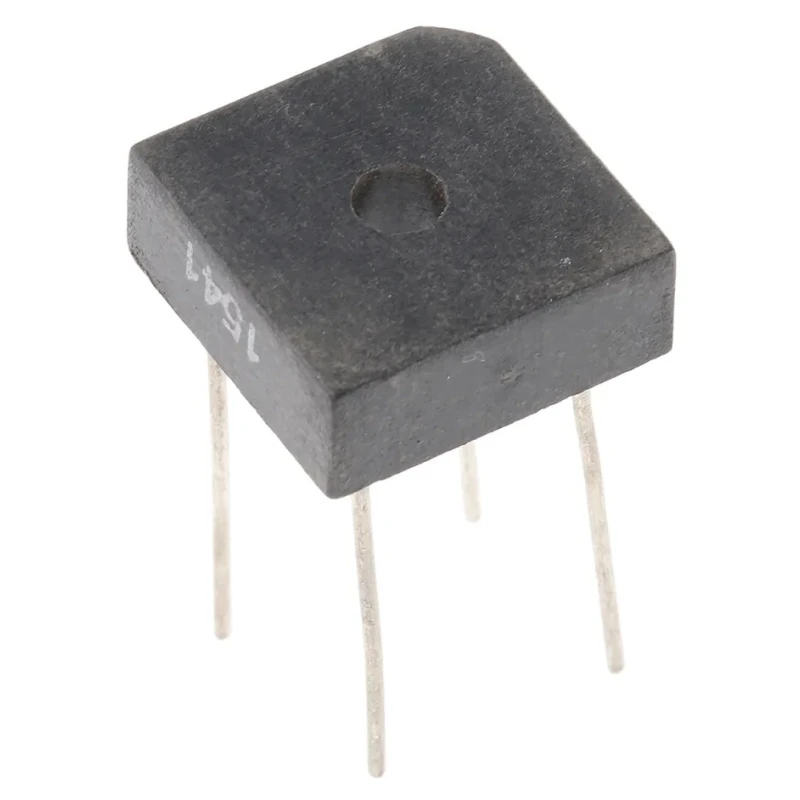

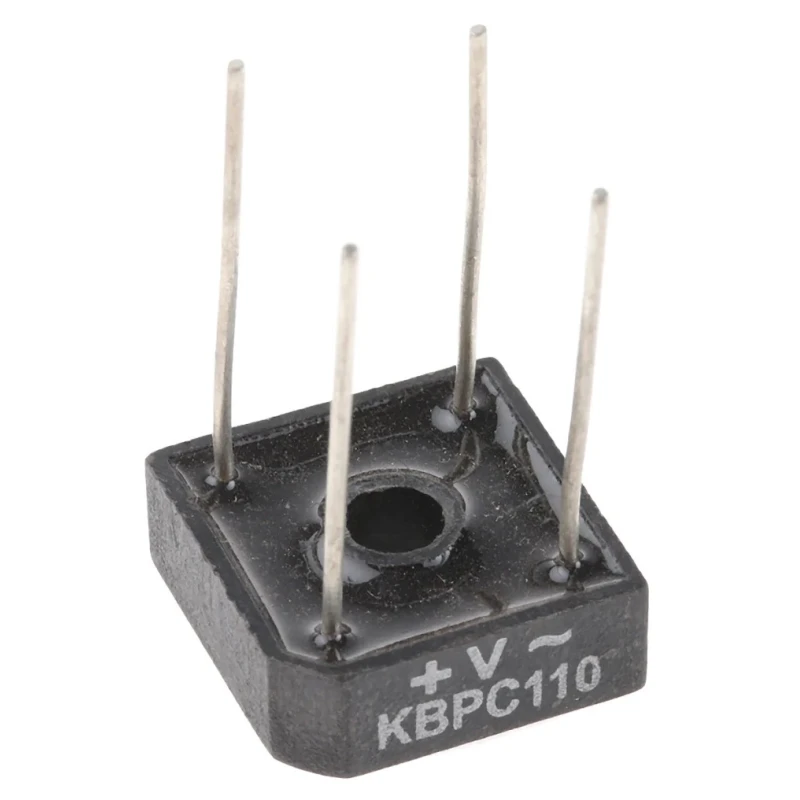

Vishay Bridge Rectifier, 1000 V Peak Reverse Voltage, 55 A Peak Surge Current, 4-Pin Single VS-KBPC110
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.35mm |
| Length | 16.7mm |
| Model | VS-KBPC110 |
| Width | 16.7mm |
| Mount Type | Through Hole |
| Series | VS-KBPC1 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-46 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-5471PBrand: VishayManufacturers Part No.: VS-KBPC110 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 55A |
| Forward Current If | 3A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- Operates with a peak reverse repetitive voltage of 1000 V.
- Supports a forward current of 3 A and a peak forward surge current of 55 A.
- Compact D-46 package suitable for through-hole mounting.
- Wide operating temperature range from -40°C to 150°C ensures durability.
- Peak forward voltage of 1.1 V and peak reverse current of 10 μA enable efficient rectification.
- Reliable diode bridge configuration for full-wave rectification applications.
- Designed for PCB or chassis mounting with wire lead structure.
- No automotive standards or special approvals apply to this model.
Product Description
Vishay VS-KBPC110 bridge rectifier is a robust discrete semiconductor component designed for power conversion by converting alternating current (AC) into direct current (DC) in electronic circuits. It features a 4-pin, single-phase configuration enclosed in a compact D-46 package, optimized for reliable through-hole mounting on printed circuit boards (PCBs) or chassis.
This bridge rectifier supports a peak reverse repetitive voltage (Vrrm) of 1000 V and can handle a continuous forward current (If) of 3 A with a peak non-repetitive forward surge current (Ifsm) of 55 A, making it suitable for high surge conditions often encountered in power supply applications.
The device operates efficiently with a peak forward voltage (Vf) of 1.1 V and maintains low leakage current, exhibiting a peak reverse current (Ir) of just 10 μA. Its wide operating temperature range from -40°C to 150°C ensures reliable performance in various industrial environments.
Physical dimensions include a length and width of 16.7 mm each and a height of 6.35 mm, supporting compact design requirements in industrial, laboratory, and commercial power management systems.
The VS-KBPC110 series is ideal for full-wave rectification in power supplies for industrial machines, electronic equipment, and HVAC systems where efficient and stable DC output is critical.
Operates with a peak reverse repetitive voltage of 1000 V. Supports 3 A forward current and 55 A peak surge current. Compact D-46 through-hole package for PCB mounting. Wide operating temperature range of -40°C to 150°C.
Peak forward voltage of 1.1 V for efficient rectification. Low peak reverse current of 10 μA reducing losses. Dimensions: 16.7 mm x 16.7 mm x 6.35 mm. Single-phase, 4-pin bridge rectifier configuration. No special automotive standards or approvals.
Explore our Electronics & Electricals category for more high-quality discrete semiconductors and Bridge Rectifiers at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VS-KBPC110 bridge rectifier operates with a peak reverse repetitive voltage of 1000 V.
This model supports a continuous forward current of 3 A.
The peak non-repetitive forward surge current for this unit is 55 A.
The dimensions of this bridge rectifier are 16.7 mm in length, 16.7 mm in width, and 6.35 mm in height.
It operates within a wide temperature range from -40°C to 150°C.
This model is designed for through-hole mounting on printed circuit boards (PCBs) or chassis.
The peak forward voltage of the VS-KBPC110 is 1.1 V.
The peak reverse current for this bridge rectifier is 10 μA.
This bridge rectifier has a total of 4 pins.
It features a single-phase configuration.
Yes, it is designed for full-wave rectification applications in power supply systems.
The country of origin for this model is India.
