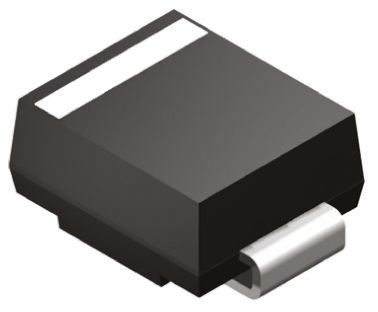

STMicroelectronics 1-Element Bi-Directional TVS Diode 600W Peak Pulse Power Surface Mount DO-214 SM6T22CAY
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Package | DO-214AA (SMB) |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T22CAY |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6TY |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 39.3V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 20.9V |
| Maximum Reverse Stand-off Voltage Vwm | 18.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 102A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed for surface mount with DO-214 package type.
- Minimum breakdown voltage of 20.9V ensures reliable surge protection.
- Bi-directional diode configuration protects against voltage spikes in both directions.
- High peak pulse current of 102A safeguards sensitive components.
- Operates safely between -55°C to 150°C suitable for harsh automotive environments.
- Clamping voltage at 39.3V provides effective transient voltage suppression.
- Meets automotive standard AEC-Q101 for quality and reliability.
- Compact dimensions of 4.6mm length and 3.95mm width accommodate space-constrained designs.
Product Description
STMicroelectronics SM6T22CAY is a 1-element bi-directional transient voltage suppressor (TVS) diode designed for automotive applications requiring robust ESD and surge protection. It provides a peak pulse power dissipation of 600W in a compact surface mount DO-214 package. This diode protects sensitive circuits against surges defined in ISO 7637-2 and electrostatic discharges according to ISO 10605, making it ideal for automotive electronic components.
The device features a minimum breakdown voltage of 20.9V and a maximum reverse standoff voltage of 18.8V, ensuring effective voltage clamping during transient events. With a clamping voltage of 39.3V and a peak pulse current rating of 102A, this TVS diode offers excellent protection capability without damaging downstream electronics.
It supports operation over a wide temperature range from -55°C up to 150°C, ensuring reliability in harsh automotive environments. Its 2-pin DO-214 surface mount package facilitates easy PCB integration while maintaining a small footprint with dimensions of 4.6mm length, 3.95mm width, and 2.45mm height.
Single diode configuration with bi-directional conduction. Compliant with automotive AEC-Q101 standard for enhanced durability. Very low maximum reverse leakage current of 1μA to minimize power dissipation. Robust protection for automotive systems against voltage transients and ESD events.
Suitable for various industrial, automotive, and power electronics protection applications.
Packaged in a reliable DO-214AA (SMB) format, this diode is a preferred choice for transient voltage suppression in automotive and industrial electronic assemblies. Explore more semiconductor and Transient Voltage Suppressor components on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SM6T22CAY has a peak pulse power dissipation of 600W.
The minimum breakdown voltage is 20.9V, ensuring reliable surge protection.
It operates safely between -55°C to 150°C, making it suitable for harsh automotive environments.
The clamping voltage for this diode is 39.3V, which provides effective transient voltage suppression.
This model has a maximum peak pulse current rating of 102A, safeguarding sensitive components during surges.
The SM6T22CAY is packaged in a DO-214AA (SMB) format, suitable for surface mount applications.
This is a 1-element diode configuration, designed for bi-directional conduction.
It meets the automotive standard AEC-Q101 for quality and reliability in automotive applications.
The maximum reverse stand-off voltage is 18.8V, ensuring effective voltage clamping during transient events.
The dimensions are 4.6mm in length, 3.95mm in width, and 2.45mm in height.
The maximum reverse leakage current is 1μA, which helps minimize power dissipation.
It is suitable for various industrial, automotive, and power electronics protection applications.
