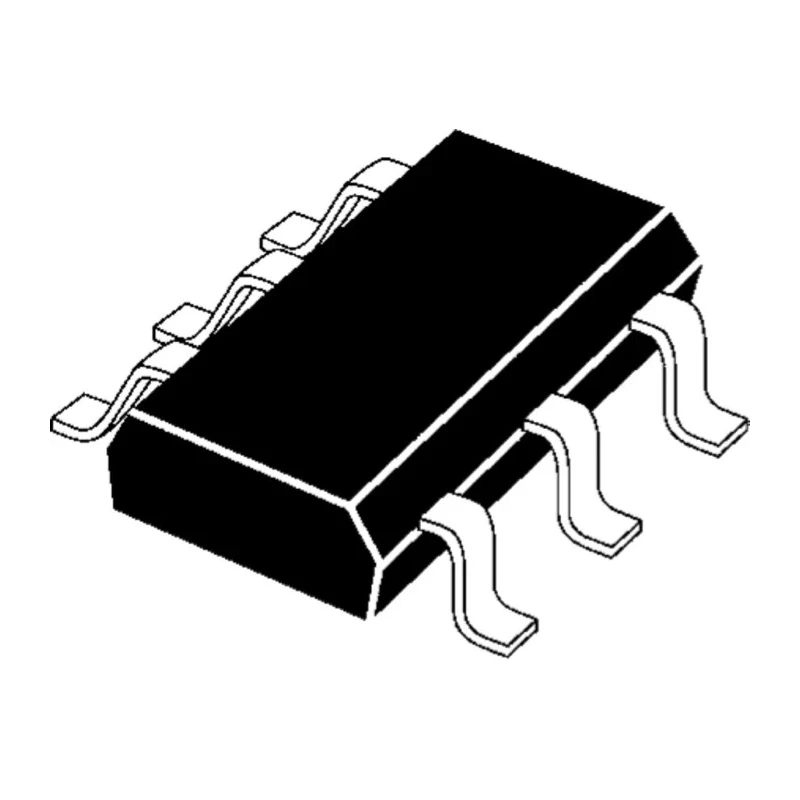

Littelfuse 9-Element Uni-Directional TVS Diode Array 6-Pin SC-70 SP3003-04JTG
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Littelfuse |
| Height | 1mm |
| Length | 2.25mm |
| Model | SP3003-04JTG |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | SP3003 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 9 |
| Clamping Voltage VC | 15V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.5V |
| Maximum Reverse Stand-off Voltage Vwm | 6V |
| Test Current It | 1μA |
| Maximum Peak Pulse Current Ippm | 2.5A |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- Features 9 elements integrated in a 6-pin SC-70 surface mount package.
- Uni-directional diode array with a minimum breakdown voltage of 6.5 volts.
- Maximum reverse stand-off voltage of 6 volts ensuring circuit protection.
- Low capacitance of 0.65 pF typical per I/O for minimal signal distortion.
- Peak pulse current capacity of 2.5 amps to handle transient surges.
- Operational temperature range from -40°C to 125°C suitable for automotive use.
- Compact dimensions of 2.25 mm length, 1.35 mm width, and 1 mm height to save board space.
- Compliant with automotive standard AEC-Q101 for high reliability.
Product Description
Littelfuse SP3003-04JTG is a 9-element Uni-Directional TVS Diode Array designed to provide robust protection against electrostatic discharge (ESD) and transient voltage spikes in electronic circuits. Packaged in a compact 6-pin SC-70 surface mount format, this diode array is ideal for space-constrained applications in automotive and industrial environments.
Featuring a minimum breakdown voltage of 6.5 volts and a maximum reverse stand-off voltage of 6 volts, the SP3003-04JTG ensures effective clamping of voltage spikes up to 15 volts. It incorporates ultra low capacitance diodes with a typical capacitance of 0.65 pF per I/O, making it suitable for protecting high frequency and high-speed data lines without signal degradation.
The device can safely withstand ESD events up to ±8kV contact discharge and peak pulse currents up to 2.5 A, providing excellent protection for sensitive electronic components. Its operating temperature range from -40°C to 125°C and compliance with the AEC-Q101 automotive standard ensure reliable performance in harsh conditions.
The Littelfuse SP3003 series diode array is widely used in computer peripherals, mobile phones, PDAs, digital cameras, network hardware, and medical equipment to mitigate damage from electrostatic discharges and voltage transients. The small SC-70 form factor allows designers to integrate the diode array on densely populated PCBs where board space is at a premium.
Features 9 integrated diodes configured as a uni-directional array for efficient circuit protection. Low leakage current of 500 nA maximum at standard operating voltages for minimal power loss. Robust construction allows repeated ESD strikes without performance degradation.
Small package saves board space and supports surface mount assembly processes. Ideal for protecting HDMI, DVI, USB2.0, and IEEE 1394 high-speed signal lines from transient voltages.
This product is made in Thailand and is supplied new in original packaging. It is intended for use in industrial, automotive, telecommunications, and consumer electronics applications requiring reliable transient voltage suppression.
Explore more Littelfuse TVS Diodes and diode arrays at EnvMart to help meet your electronic circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 6.5 volts.
The maximum reverse stand-off voltage is 6 volts, ensuring effective circuit protection.
This diode array features 9 integrated elements configured as a uni-directional array.
It can handle peak pulse currents up to 2.5 amps, making it suitable for transient surge protection.
The dimensions are 2.25 mm in length, 1.35 mm in width, and 1 mm in height.
The operational temperature range is from -40°C to 125°C, suitable for automotive applications.
The clamping voltage is 15 volts, allowing it to effectively clamp voltage spikes.
The maximum reverse leakage current is 500 nA at standard operating voltages.
It complies with the AEC-Q101 automotive standard, ensuring high reliability.
The package type is SC-70, designed for surface mount applications.
This diode array is suitable for protecting HDMI, DVI, USB2.0, and IEEE 1394 high-speed signal lines from transient voltages.
It is manufactured in Thailand and supplied new in original packaging.
