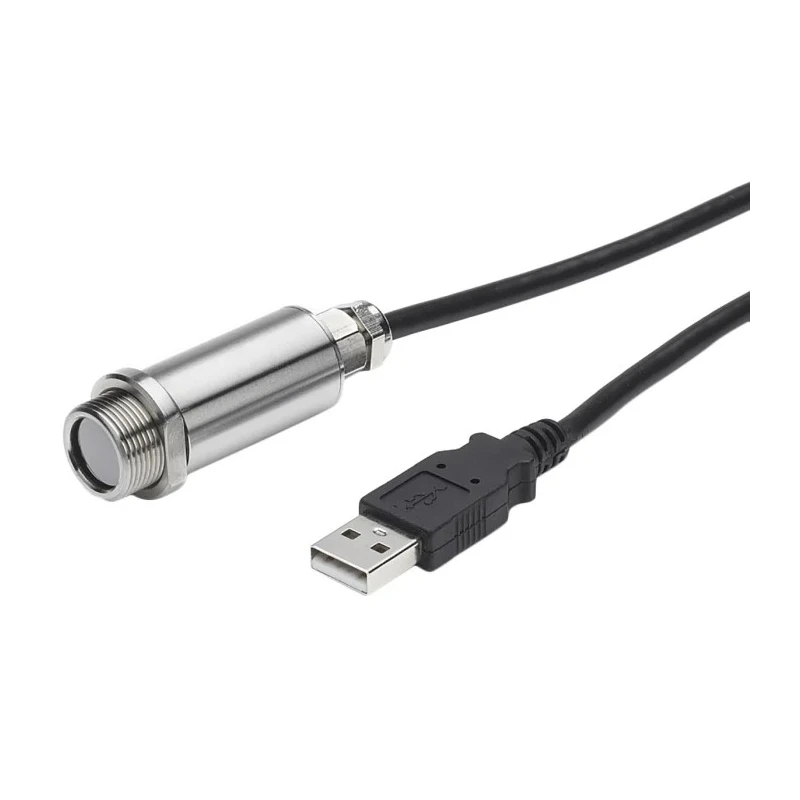

Calex Infrared Temperature Sensor IEEE 1588, USB Interface, Screw Mount, IP65, -20°C to 1000°C PMU21
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Accuracy | ±1 % |
| Diameter | 18mm |
| Brand | Calex |
| Spectral range | 8 to 14 μm |
| Light Source | Infrared |
| Model | PMU21 |
| Sensor Type | IEEE 1588 |
| Mount Type | Screw |
| Series | PMU |
| Interfaces | USB communications |
| Terminal type | M16 Thread |
| Maximum Ambient Temperature | 75°C |
| Standards/Approvals | EN61326-1EN61326-2-3RoHS |
| Maximum Supply Voltage | 5V |
| Maximum Temperature Sensed | 1000°C |
| Minimum Temperature Sensed | -20°C |
| Cable Length Sensing Head | 1.45m |
| Cable Length Output | 1.45m |
| Response Time 90% | 125ms |
| IP Rating Sensing Head | IP65 |
| Housing Material Sensing Head | 316 Stainless Steel |
| Emissivity Setting | 0.2 to 1 |
| Analogue Output Type | USB, Modbus |
| Digital Interface Type | USB |
| Calex PMU201 Infrared Infrared Temperature Sensor 1.45 m, -20 °C to 1000 °CBrand | Calex |
Key Features
- Miniature non-contact temperature sensor designed for benchtop, laboratory, and educational use.
- Equipped with a 1.45 m USB cable and included PC software for configuration and data logging.
- Features an IP65 rated sensing head made from 316 stainless steel for durability and industrial use.
- Provides accurate temperature measurements with ±1% accuracy and a response time of 125 ms.
- Supports configurability with emissivity setting ranging from 0.2 to 1 for various material types.
- Uses an open Modbus protocol allowing integration with user’s own software via USB.
- Capable of sensing infrared emissions across the spectral range of 8 to 14 μm.
- Suitable for measuring materials including paper, plastics, rubber, food items, and painted or oily metals.
Product Description
Calex PMU21 IEEE 1588 Infrared Temperature Sensor offers precise, non-contact temperature measurement ranging from -20 °C up to 1000 °C with USB communications and a screw mount design.
This miniature sensor is ideal for industrial, laboratory, benchtop, and educational environments where reliable temperature monitoring is critical.
The IP65 rated sensing head is constructed from 316 stainless steel ensuring robustness in harsh ambient conditions up to 75 °C. It includes a 1.45-meter USB cable and PC software for convenient data logging and sensor configuration.
With a fast response time of 125 milliseconds and an accuracy of ±1%, this sensor excels in applications requiring quick and precise temperature readings. The emissivity settings ranging from 0.2 to 1 allow measurement of a broad range of materials including paper, thick plastics, rubber, food products, painted metals, and oily surfaces.
Communication uses standard USB and supports the open Modbus protocol, facilitating integration with user-developed software. The sensor detects infrared light within the 8 to 14 μm spectral range, ensuring versatile temperature sensing capabilities.
Miniature non-contact temperature sensor with USB communications and PC software included. Temperature range from -20 °C to 1000 °C with ±1% accuracy. Stainless steel IP65 housing for durability in industrial conditions.
Configurable emissivity settings for diverse material measurements. Fast response time of 125 milliseconds. Open Modbus protocol enabled for software integration. Spectral detection range 8 to 14 μm. Screw mount with M16 threaded terminal.
Suitable for industrial measurement, laboratory experiments, HVAC monitoring, manufacturing processes, and quality control applications. This Calex PMU21 sensor combines precision, robustness, and user-friendly digital interfacing for advanced temperature monitoring solutions.
Discover more innovative sensors and temperature measurement devices in the Electronics & Electricals category at EnvMart.
