Optris Infrared Temperature Sensor Thermometer -50 °C to 1030 °C Stainless Steel Sensing Head CATCSMVLT15SF0505K
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±1 % |
| Diameter | 12mm |
| Brand | Optris |
| Spectral range | 8 to 14 μm |
| Model | CATCSMVLT15SF0505K |
| Sensor Type | Thermometer |
| Mount Type | Screw |
| Series | CSmicro 3M |
| Interfaces | USB cable and adapters USB-C / USB-A |
| Maximum Ambient Temperature | 120°C |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 30V dc |
| Maximum Temperature Sensed | 1030°C |
| Minimum Temperature Sensed | -50°C |
| Response Time 90% | 0.014s |
| Housing Material Sensing Head | Stainless Steel |
| Emissivity Setting | Adjustable |
| Digital Interface Type | USB |
| Optical Resolution 15 | 1 and response time 14mS |
Key Features

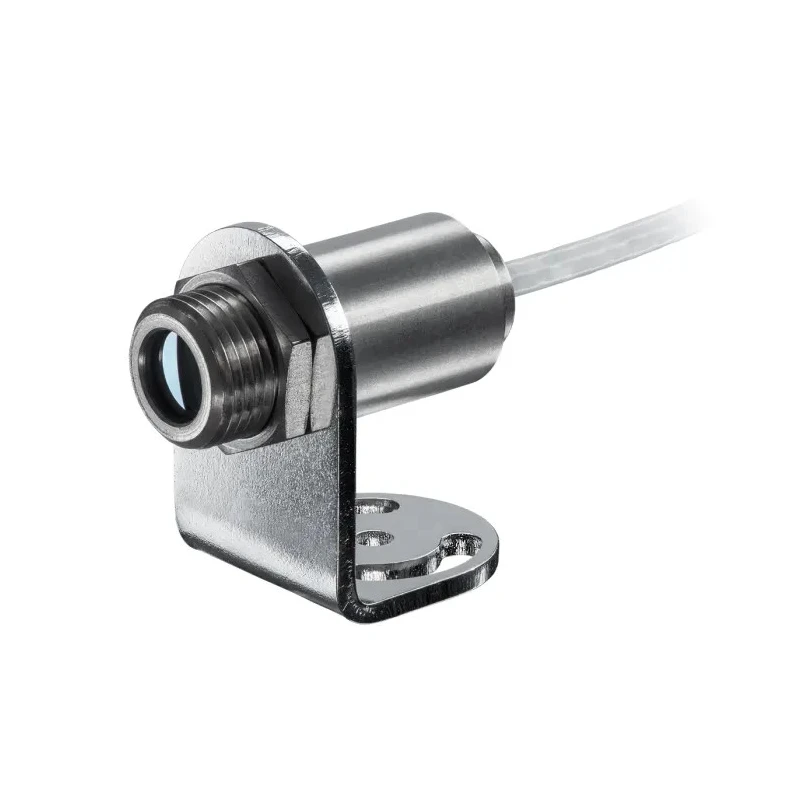

- The sensor features a miniaturised stainless steel measuring head optimized for installation in limited spaces.
- The device supports USB digital interface for easy connectivity and configuration.
- Accuracy is ±1%, making it suitable for critical industrial temperature monitoring.
- Adjustable emissivity enables accurate sensing of various materials.
- Equipped with a configurable LED display that functions as alarm, target support, self-diagnosis, or temperature-code display.

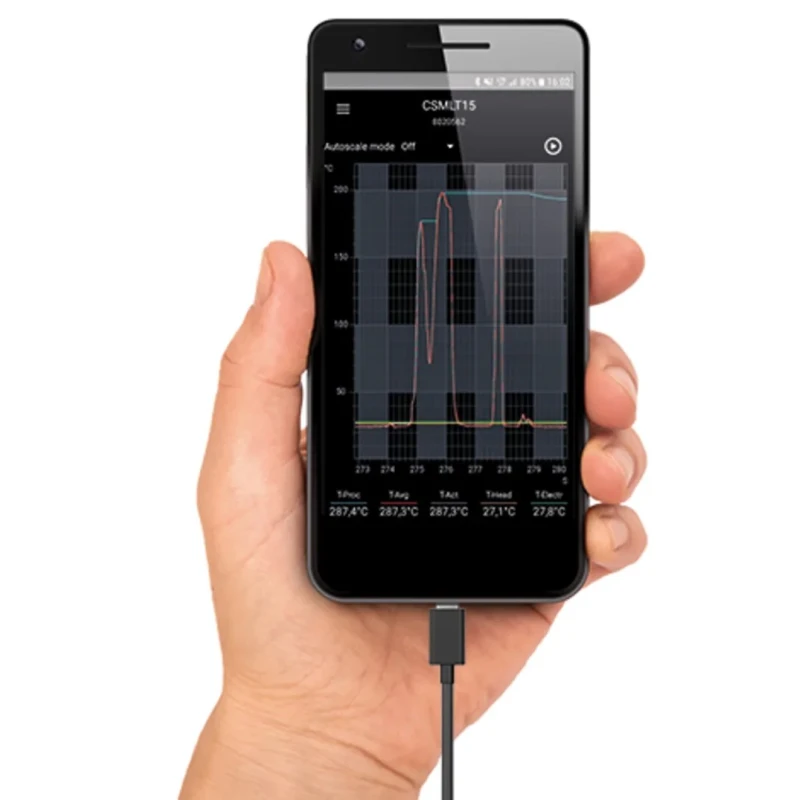

- The product is compatible with the free IR mobile app for Android and Windows software for enhanced monitoring and data analysis.
- Operating ambient temperature up to 120 °C ensures durability in harsh environments.

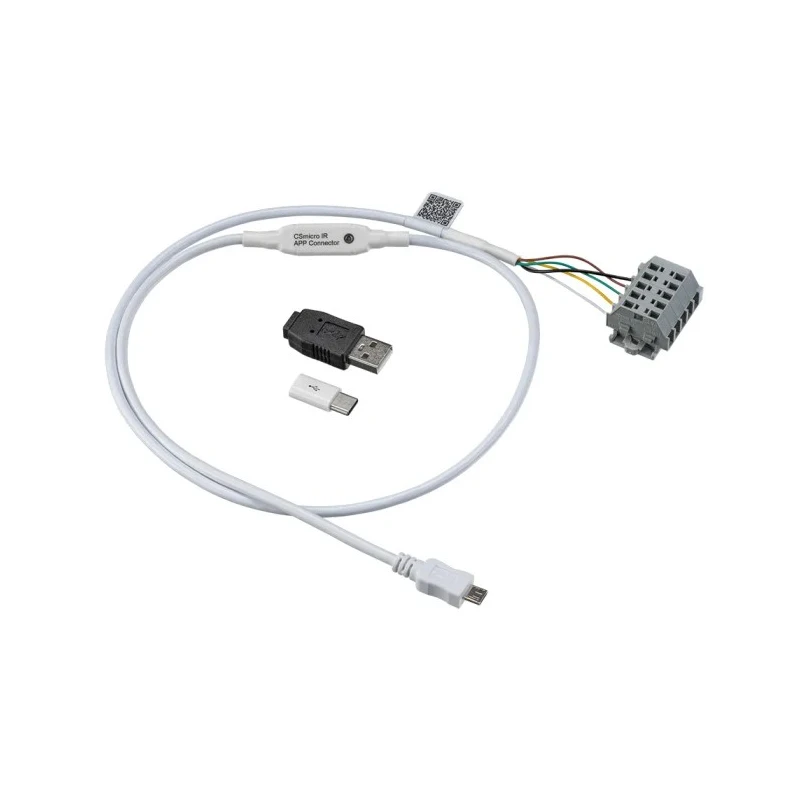

- Includes mounting bracket, two nuts, 1 meter connection cable, micro-USB cable with USB-C and USB-A adapters, and software package Compact Connect.
Product Description
Optris CATCSMVLT15SF0505K is an advanced infrared temperature sensor thermometer featuring a compact stainless steel sensing head, designed for precise temperature measurement ranging from -50 °C to 1030 °C. With a fast response time of 14 milliseconds and an optical resolution of 15:1, it is ideal for industrial applications requiring quick and accurate thermal readings.

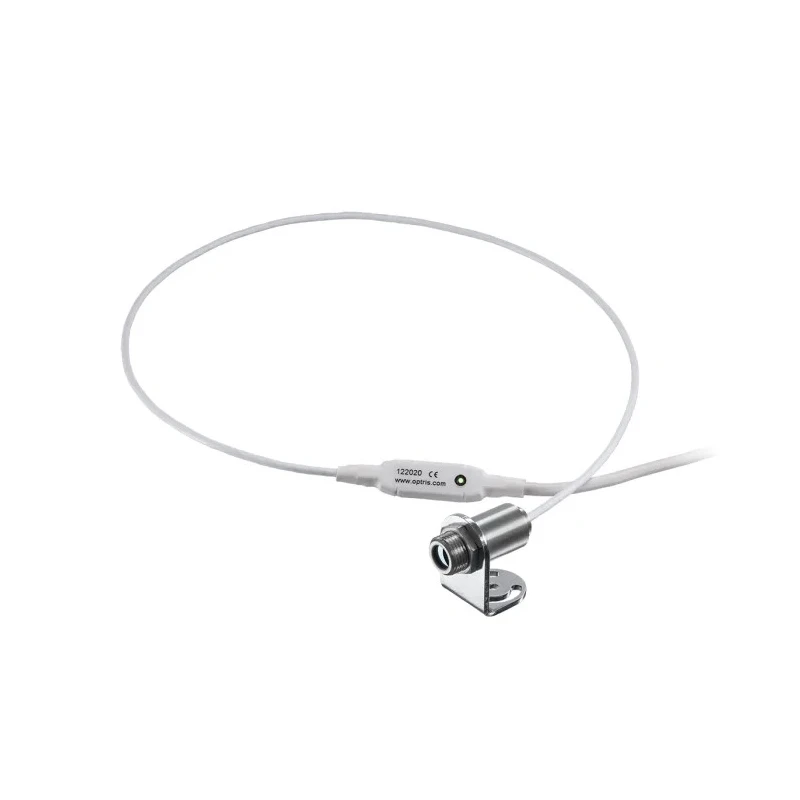

The miniature design allows the sensor to be easily installed in tight spaces. Its robust stainless steel housing ensures longevity and resistance to harsh ambient conditions up to 120 °C. The thermometer includes an innovative LED display integrated into the cable, which offers configurable alarm signals, target support, and self-diagnostic functions to enhance usability.
This sensor communicates through a USB digital interface, complemented by a free IR mobile app for Android devices and a Windows software suite, enabling real-time monitoring, data logging, and advanced temperature analysis. The adjustable emissivity setting allows accurate temperature sensing for various surface materials, improving measurement reliability.
The package includes a mounting bracket, two installation nuts, a 1-meter connection cable, and micro-USB cable with USB-C and USB-A adapters. These accessories ensure straightforward setup and integration in diverse industrial, laboratory, HVAC, manufacturing, and process control environments.
The miniaturised stainless steel measuring head suits cramped spaces. Temperature range of -50 to 1030 °C with ±1% accuracy. Fast response time of 0.014 seconds enhances dynamic temperature measurement. USB interface and free software apps support advanced configuration and monitoring.
Configurable LED indicator integrated within cable provides multiple status signals. Durable up to 120 °C ambient temperatures. Comes complete with mounting and connection accessories for easy installation.
This Optris Infrared Temperature Sensor is engineered to meet demanding industrial standards and carries the RoHS certification. It is manufactured in Germany to ensure quality and performance. Suitable for sectors including industrial automation, laboratory instrumentation, HVAC systems, and manufacturing process control.
Explore more Optris temperature sensing solutions and related products on EnvMart for your precision temperature measurement needs.
