Optris Infrared Thermometer Temperature Sensor with USB Interface -50 °C to 1030 °C CATCSMALT15SF0505K
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±1 % |
| Diameter | 12mm |
| Brand | Optris |
| Spectral range | 8 to 14 μm |
| Model | CATCSMALT15SF0505K |
| Sensor Type | Thermometer |
| Mount Type | Screw |
| Series | CSmicro 3M |
| Interfaces | USB cable and adapters USB-C / USB-A |
| Maximum Ambient Temperature | 120°C |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 30V dc |
| Maximum Temperature Sensed | 1030°C |
| Minimum Temperature Sensed | -50°C |
| Response Time 90% | 0.014s |
| Housing Material Sensing Head | Stainless Steel |
| Emissivity Setting | Adjustable |
| Digital Interface Type | USB |
| Optical Resolution 15 | 1 and response time 14mS |
Key Features

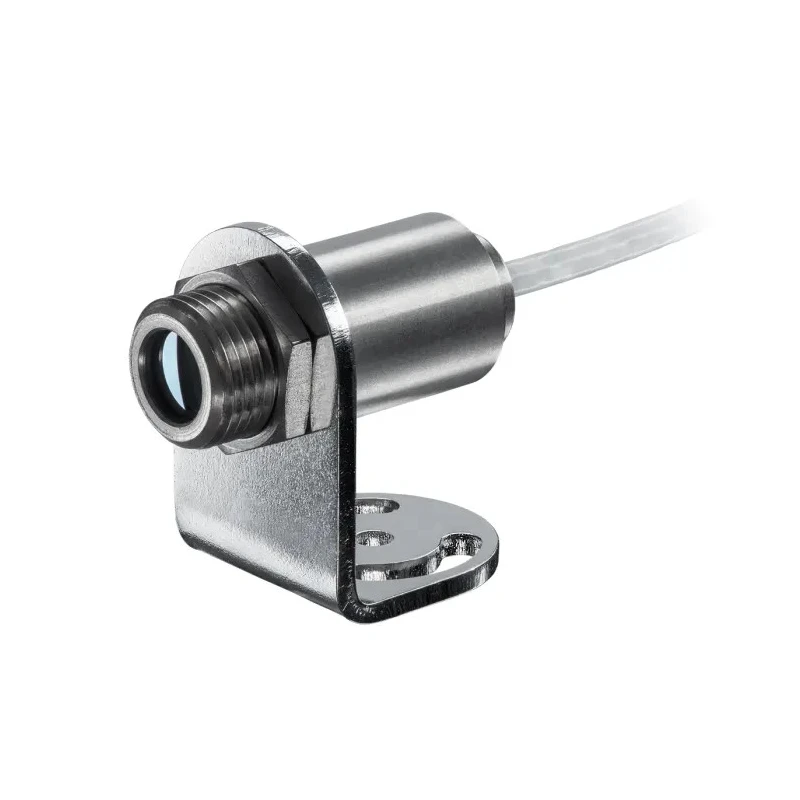

- The sensor has a compact 12 mm stainless steel sensing head designed for placement in limited spaces.
- Provides ±1 % accuracy and fast response time of 0.014 seconds (90%).
- Temperature range from -50 °C minimum to 1030 °C maximum sensing capability.
- Emissivity setting is adjustable for versatile applications.
- Includes LED indication for alarm signals and self-diagnostics.
- Equipped with analog 4-20mA output and configurable electronics in the cable.

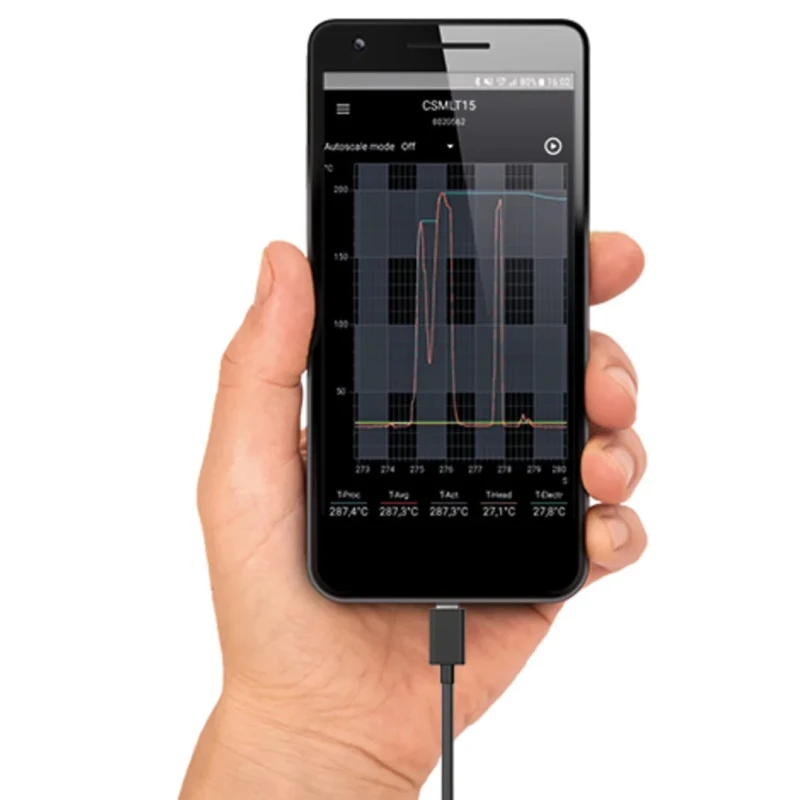

- Operable via IR mobile app for Android and Windows software for monitoring and analysis.
- Mount type is screw mount for secure attachment.
Product Description

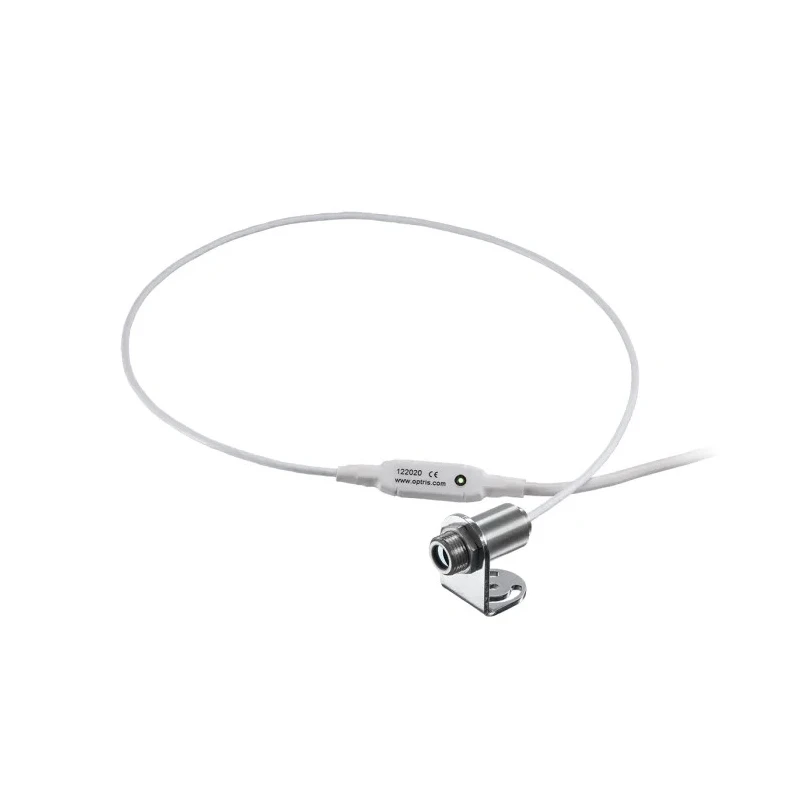

Optris CATCSMALT15SF0505K infrared thermometer temperature sensor is engineered for precise temperature measurements ranging from -50 °C to 1030 °C with a spectral range of 8 to 14 μm. Its miniaturized stainless steel sensing head with 12 mm diameter enables installation in confined spaces, suitable for industrial, laboratory, HVAC, and manufacturing environments where accurate non-contact temperature sensing is critical.
The sensor offers a high optical resolution of 15:1 and an exceptionally fast 90% response time of 14 milliseconds, ensuring real-time data collection. Its adjustable emissivity setting allows for accurate readings across a variety of surface types. The device is powered via a maximum supply voltage of 30 V DC and communicates through a USB digital interface, facilitating integration with monitoring systems and software.
Featuring configurable electronics with LED indicators for alarms and diagnostics directly on the cable, it enhances usability and safety in operation. The infrared sensor can be managed using the free Android IR app or included Windows software, enabling remote monitoring and data analysis on smartphones or computers.

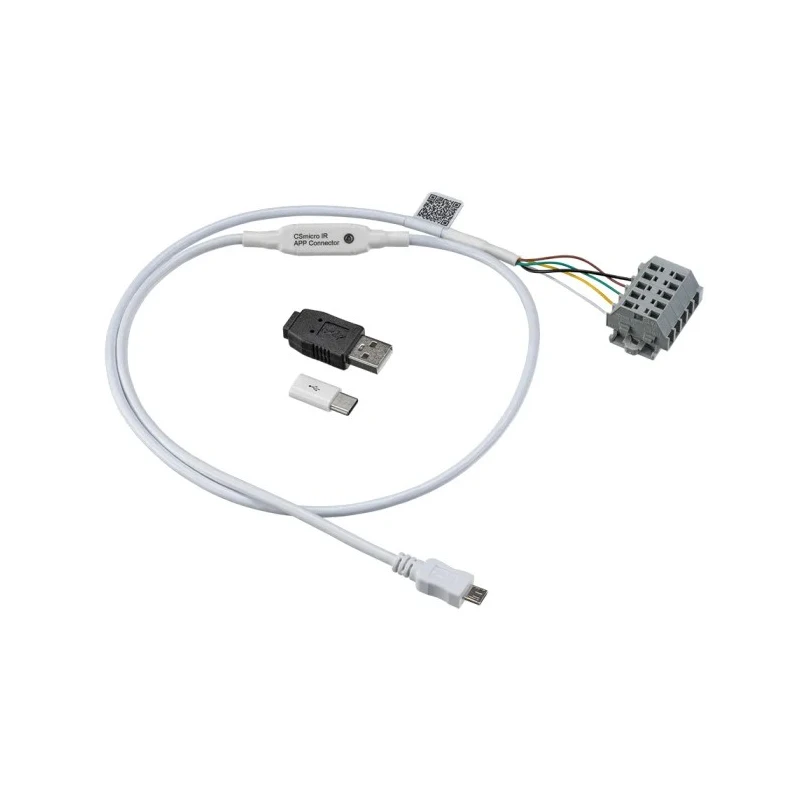

The package includes the CSmicro pyrometer with mounting bracket, two nuts, a one-meter connection cable, Micro-USB cable, and USB-C / USB-A adapters. Manufactured under RoHS compliance in Germany, this advanced sensor is ideal for applications in automation, process control, and quality assurance in diverse industrial sectors.
The sensor's miniature stainless steel head suits tight mechanical integration. Highly accurate with ±1 % tolerance and fast response. Wide temperature sensing range up to 1030 °C. Adjustable emissivity optimizes measurement precision.
USB interfacing supports modern connectivity requirements. Configurable LED signals enhance operational feedback. Free mobile and desktop apps for real-time monitoring. Sturdy construction meeting international RoHS standards.
Comprehensive accessory kit included for immediate use. Ideal for industrial, laboratory, HVAC, and manufacturing use cases. Explore more advanced Infrared Temperature Sensors and measuring instruments in the comprehensive Optris product lineup at EnvMart.
