Optris Infrared Temperature Sensor Screw Mount 12mm Diameter Adjustable Emissivity -50 °C to 975 °C CATCTLT15CB3K
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±1 % |
| Diameter | 12mm |
| Brand | Optris |
| Interface | CATACCTMBRTUB (Modbus RTU board), CATACCPFBDPK (Profibus-DPv1board),CATACCTRS232K (RS232 board), CATACCTRS485USBK (RS485/422-USB cable and block),CATACCTRS485B (RS485 board), CATACCTRI (Relay interfaces) |
| Spectral range | 8 to 14 μm |
| Model | CATCTLT15CB3K |
| Sensor Type | Temperature Sensor |
| Mount Type | Screw |
| Series | CSlaser LT |
| Interfaces | USB cable and adapters USB-C / USB-A |
| Maximum Ambient Temperature | 180°C |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 36V dc |
| Maximum Temperature Sensed | 975°C |
| Minimum Temperature Sensed | -50°C |
| Response Time 90% | 0.15s |
| Housing Material Sensing Head | Stainless Steel |
| Emissivity Setting | Adjustable |
| Temperature Range -50 to 600°C and Optical Resolution 15 | 1 |
Key Features
- The sensor features a compact stainless steel sensing head with a 12 mm diameter.
- It supports screw mounting for secure installation in confined spaces.
- Adjustable emissivity allows accurate temperature readings on diverse surfaces.
- Maximum ambient temperature tolerance of 180 °C ensures durability in industrial environments.
- Fast response time of 0.15 seconds for timely temperature detection.
- Equipped with selectable analog and optional digital outputs for versatile interfacing.
- Includes a separate electronic box with LCD display and programming keys for configuration.

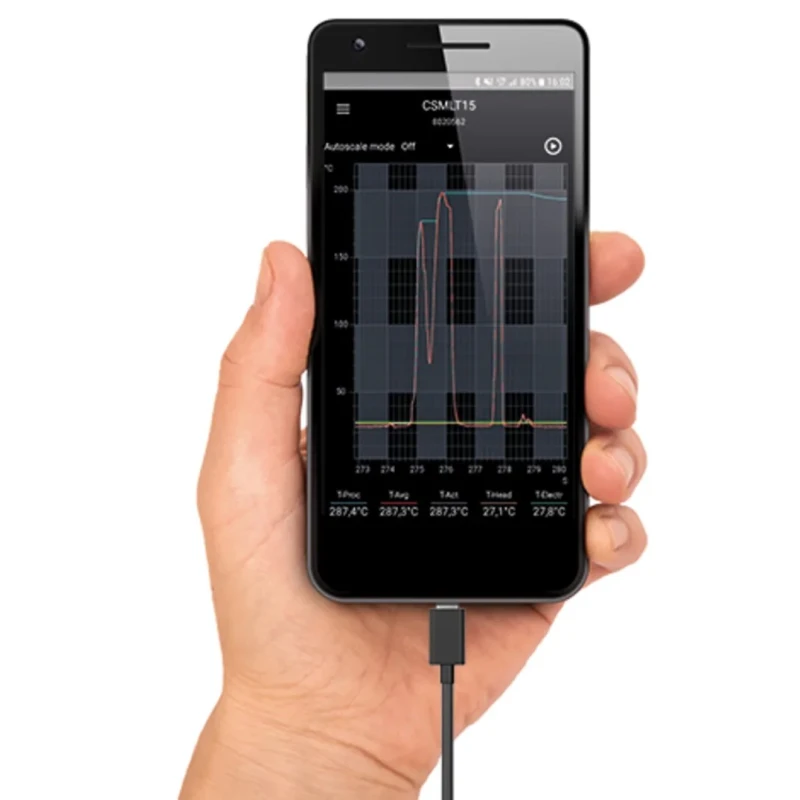

- Compatible with IR mobile app and Windows software for convenient setup and data analysis.
Product Description
Optris CATCTLT15CB3K is a high-precision infrared temperature sensor designed to measure temperature accurately from -50 °C to 975 °C. Featuring a compact stainless steel sensing head with a 12 mm diameter, it is ideal for installation in limited spaces. The sensor’s screw mount type enables secure and easy mounting for various industrial and laboratory applications.
The sensing head can withstand operating ambient temperatures up to 180 °C, making it suitable for demanding environments. Its adjustable emissivity setting allows precise temperature measurement on different surface materials. The sensor offers a rapid response time of 0.15 seconds for fast temperature detection and control.

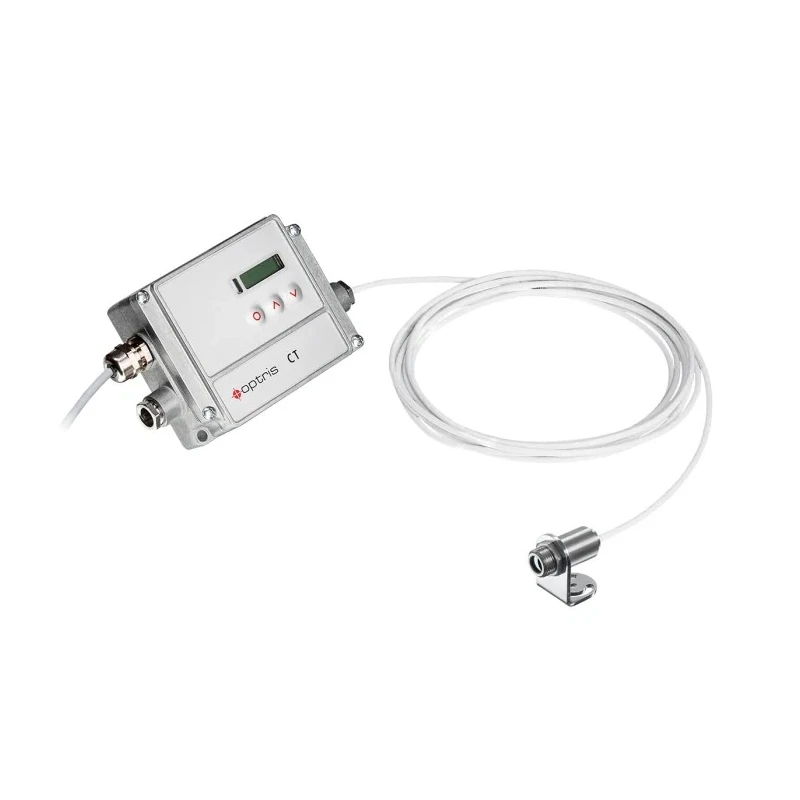

The electronic box is detachable and configurable, featuring a clear LCD display and three programming buttons. It offers selectable analog outputs and supports multiple optional digital interfaces such as RS485, Relay, and Profibus. The device can be set up conveniently using the integrated buttons, the IR mobile app available for Android, or the included Windows software.
This model has broad industrial utility, including use in automation systems, manufacturing processes, HVAC monitoring, water and chemical treatment plants, and laboratory instrumentation. It delivers reliable, real-time temperature data essential for process control and quality assurance.

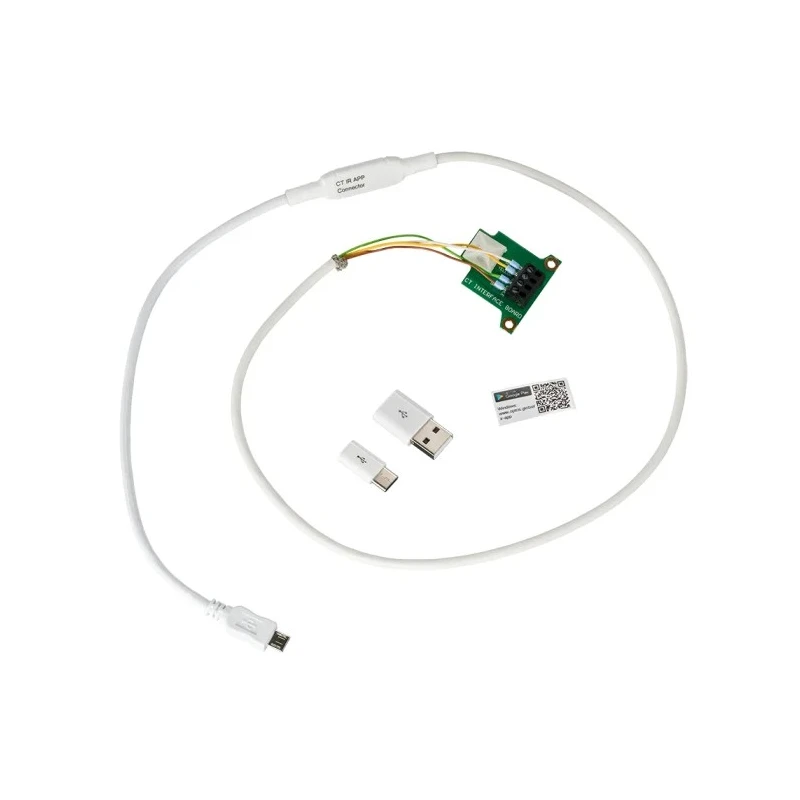

The full scope of delivery includes the CT pyrometer, mounting bracket with nut, 3-meter head cable, IR app connector, micro-USB cable with USB-C and USB-A adapters, and a software package for compact connection and monitoring.
Accessories are available separately, including air purge collars, mounting forks, close focus lenses, and various interface boards for Modbus RTU, Profibus DPv1, RS232, RS485, and relay outputs.
The sensor’s compact stainless steel head and screw mount facilitate installation in restricted spaces. Adjustable emissivity and fast response time enhance measurement accuracy and speed. Multiple output options and digital interfaces offer versatile connectivity and integration.
Software support for mobile and PC platforms ensures ease of monitoring and control. Robust design withstands ambient temperatures up to 180 °C for industrial reliability. Explore more Infrared Temperature Sensors and measurement solutions in the Sensors category at EnvMart.
