Optris Infrared Temperature Sensor, Temperature Range -50 °C to 975 °C, Accuracy ±1 %, Diameter 12mm, Screw CATCTLT20CB3K
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±1 % |
| Diameter | 12mm |
| Brand | Optris |
| Interface | CATACCTMBRTUB (Modbus RTU board), CATACCPFBDPK (Profibus-DPv1board),CATACCTRS232K (RS232 board), CATACCTRS485USBK (RS485/422-USB cable and block),CATACCTRS485B (RS485 board), CATACCTRI (Relay interfaces) |
| Spectral range | 8 to 14 μm |
| Model | CATCTLT20CB3K |
| Sensor Type | Temperature Sensor |
| Mount Type | Screw |
| Series | CSlaser LT |
| Interfaces | USB cable and adapters USB-C / USB-A |
| Maximum Ambient Temperature | 18°C |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 36V dc |
| Maximum Temperature Sensed | 975°C |
| Minimum Temperature Sensed | -50°C |
| Response Time 90% | 0.15s |
| Housing Material Sensing Head | Stainless Steel |
| Emissivity Setting | Adjustable |
| Temperature Range -50 to 975°C and Optical Resolution 22 | 1 |
Key Features
- The sensor features a compact 12mm diameter sensing head with screw mounting.
- It operates reliably with a maximum ambient temperature of 18 °C.
- Equipped with adjustable emissivity settings for flexible measurement.
- Fast response time of 0.15 seconds ensures timely temperature readings.
- The device offers spectral range from 8 to 14 micrometers for accurate infrared detection.
- Constructed with stainless steel housing for durability and high temperature resistance.
- Includes configurable electronics box with LCD display and multiple interface options.

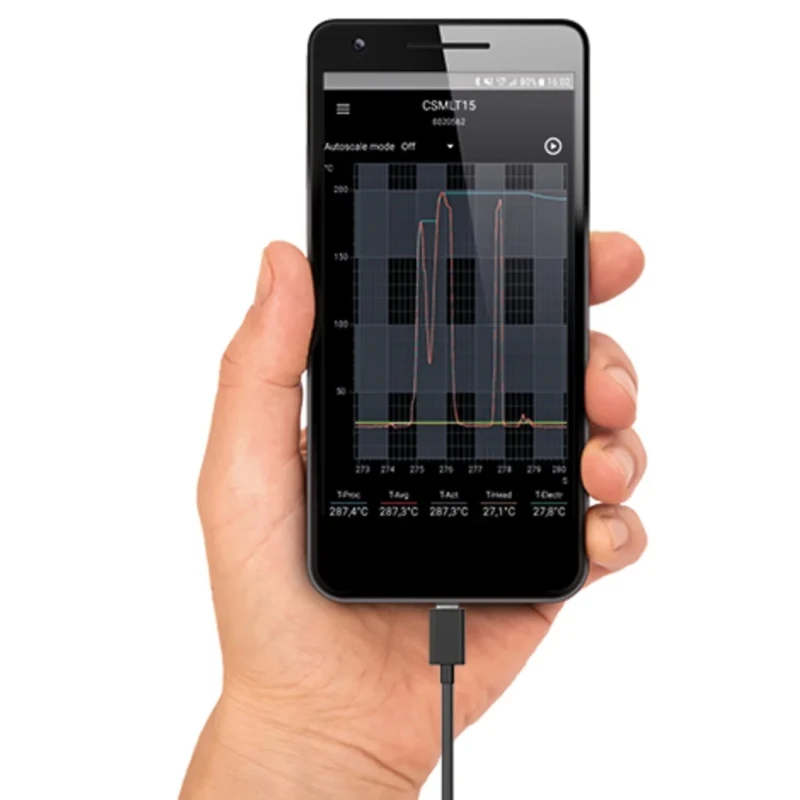

- Compatible with Android IR mobile app and Windows software for remote monitoring.
Product Description
Optris CATCTLT20CB3K is a high-precision Infrared Temperature Sensor designed to measure temperatures ranging from -50 °C to 975 °C with an accuracy of ±1 % and an outstanding optical resolution of 22:1. The sensor features one of the world's smallest infrared sensing heads at 12mm diameter, crafted from robust stainless steel to endure industrial environments.
This compact sensor is mounted via screw fitting and is optimized for installations in limited space applications. It has a maximum ambient temperature tolerance of 18 °C and includes adjustable emissivity settings to adapt measurement conditions for various materials.
The sensor's fast response time of 0.15 seconds allows rapid temperature acquisition, critical for industrial process control. It covers a spectral range between 8 to 14 micrometers, capturing accurate infrared temperature data.

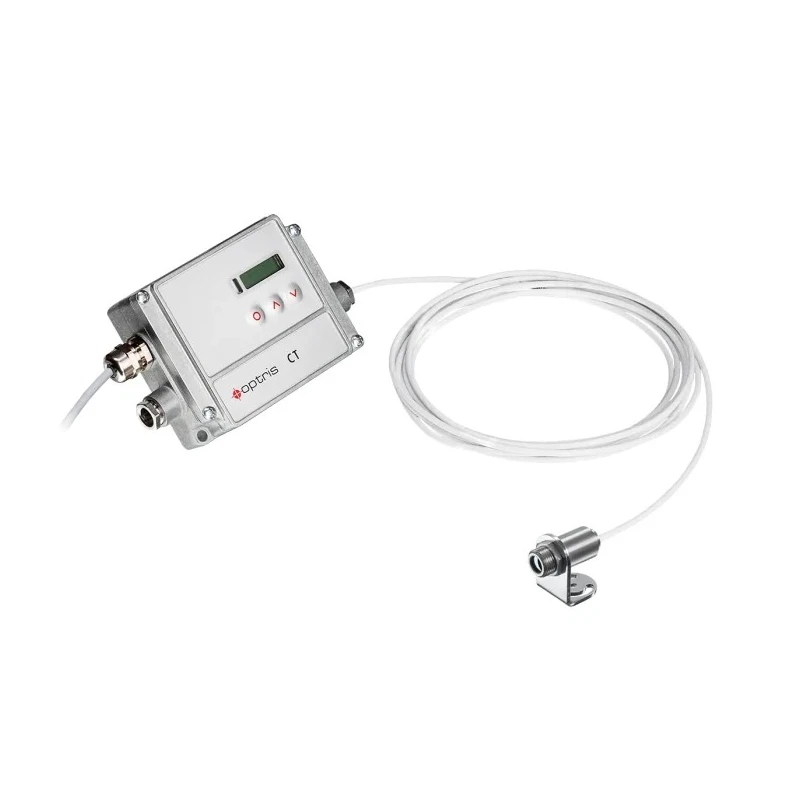

The device is comprised of a separate electronics box featuring a configurable terminal device with selectable analog outputs and optional digital interfaces including RS485, relay, and Profibus for versatile connectivity. Users can configure and monitor measurements via a built-in LCD display, three physical buttons, an Android IR mobile app, or included Windows software.

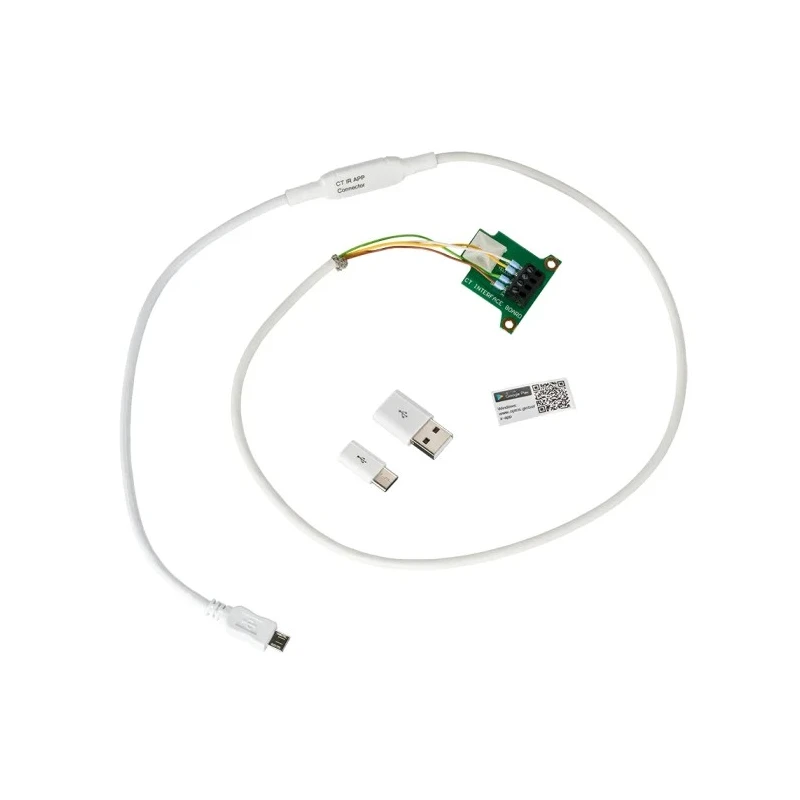

The package contains the CT pyrometer sensor, mounting bracket, nut, 3-meter head cable, IR app connector, Micro-USB cable with USB-C/USB-A adapters, and the software package Compact Connect. Optional accessories such as air purge collar, mounting forks, close focus lenses, and various interface boards are available to enhance functionality.
This sensor is suitable for diverse industrial applications including HVAC systems, manufacturing process monitoring, laboratory instrumentation, and automation control. Originating from Germany, the sensor is RoHS compliant and part of the CSlaser LT series.
The sensor offers industrial-grade infrared temperature sensing with high accuracy and fast response time. Its compact stainless-steel design is built for confined spaces and harsh environments. Several output interfaces and software options enable flexible integration into control systems.
Adjustable emissivity and configurable electronics provide adaptable operation for varying materials. Comprehensive accessory options support specialized mounting and interfacing requirements. Explore further sensor, control gear, and automation solutions within the EnvMart Electronics & Electricals Sensors category.
