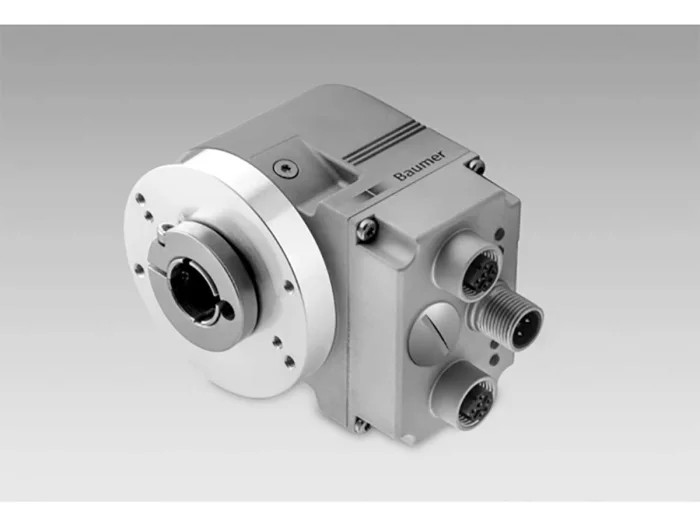

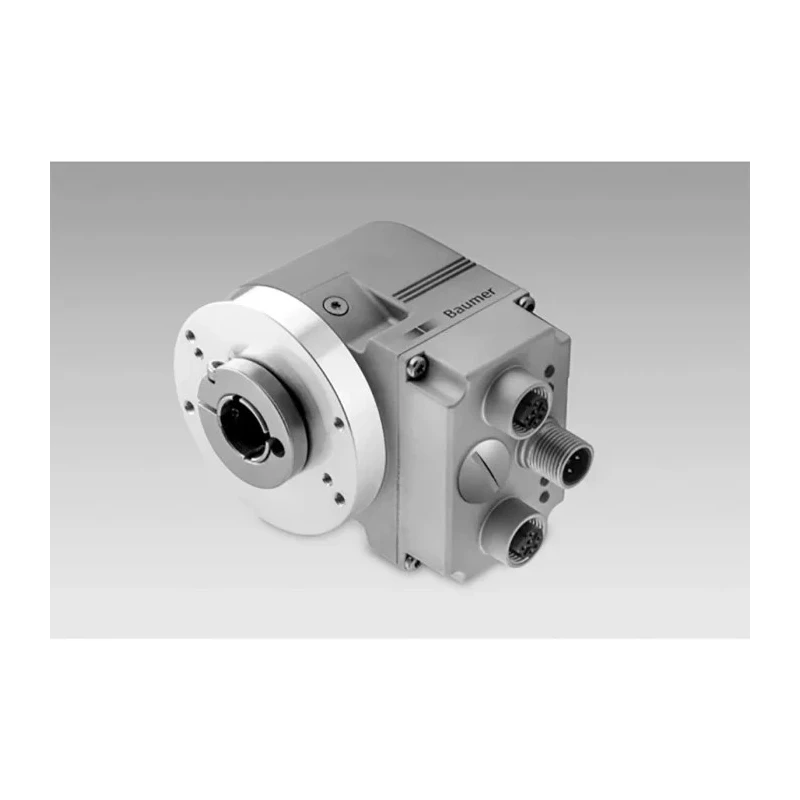

Baumer Optical Absolute Encoder 30V DC, Analogue Signal, Hollow Shaft 12 mm, EtherCAT Interface EAL580

Baumer EAL580 series Optical Absolute Encoder is engineered for industrial motion control and automation systems requiring precise position feedback. This encoder utilizes an optical sensing method which delivers high resolution and accuracy, with up to 18 bits in single-turn and 16 bits for multi-turn applications, facilitating precise angular measurement and control.

The encoder features a hollow shaft design with a 12 mm diameter, enabling convenient installation with various mechanical systems requiring blind hollow shaft flange mounting. It provides an analogue output signal along with an EtherCAT interface, ensuring seamless integration into modern automation networks for real-time data transfer and control.

Its robust construction provides an IP65 ingress protection rating, granting resistance against dust and water ingress. It is capable of operating in harsh industrial environments with temperature limits ranging from -40°C to 85°C. The encoder includes an LED status display for clear indication of operational status, and it provides excellent resistance against magnetic interference, ensuring reliable performance in electromagnetic harsh conditions.

The compact dimensions of 90.9 mm in height, 58 mm in width, and 59 mm in depth allow for efficient space utilization in tight control panels or machinery. This device complies with UL standards and is manufactured in Germany, assuring premium quality and durability.

Typical applications include industrial automation, manufacturing machinery, robotics, and any systems requiring precise rotary position sensing and feedback with high reliability.

Utilizes optical encoder technology for high accuracy and reliability. Features a hollow shaft with a diameter of 12 mm to accommodate various mounting configurations. Provides analogue output signal and supports EtherCAT interface for effective communication.

Operates at a maximum supply voltage of 30V DC with IP65 rating for environmental protection. Supports high resolution with single turn 18 bit and multi-turn 16 bit capability. Equipped with LED status display for operational feedback.

Designed for operation in wide temperature range from -40°C to 85°C. Complies with UL standards and offers maximum resistance against magnetic fields. Compact dimensions with overall height 90.9 mm, width 58 mm, and depth 59 mm.

Manufactured in Germany ensuring high quality and precision engineering. Explore the range of Baumer encoders and sensors at EnvMart for reliable industrial automation components.
