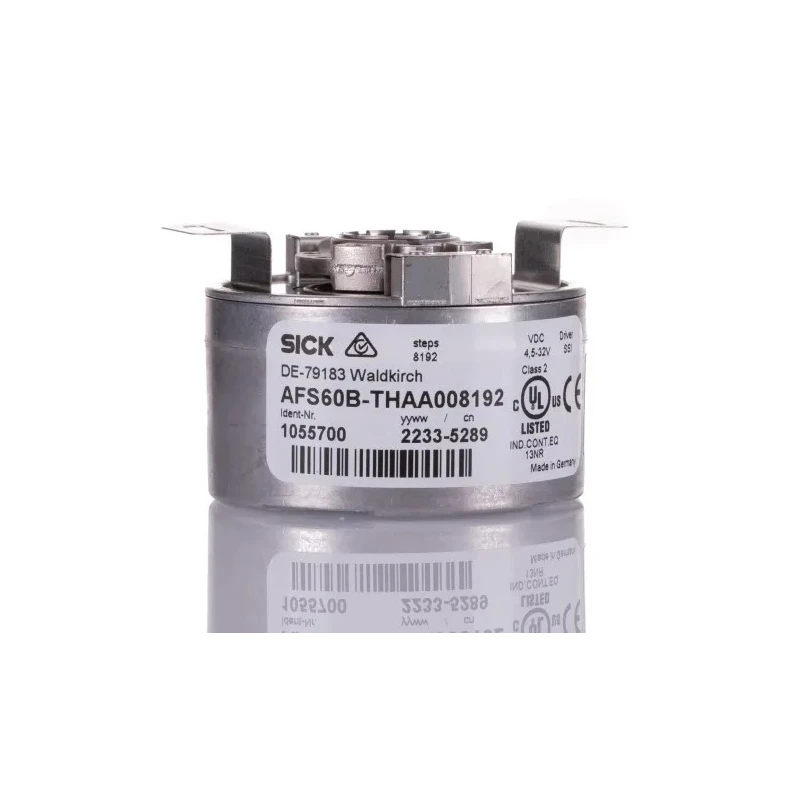

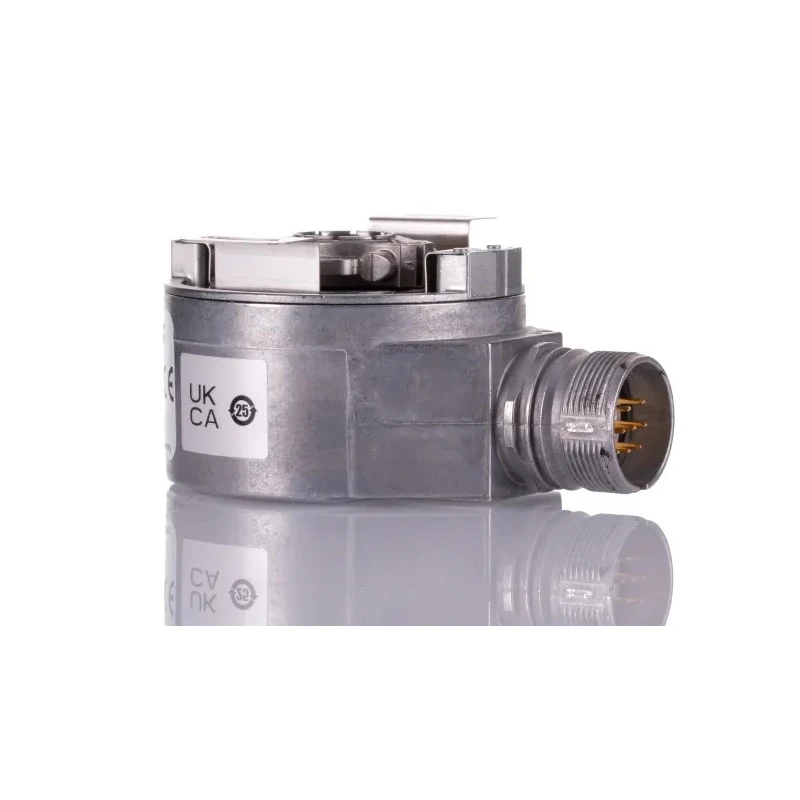

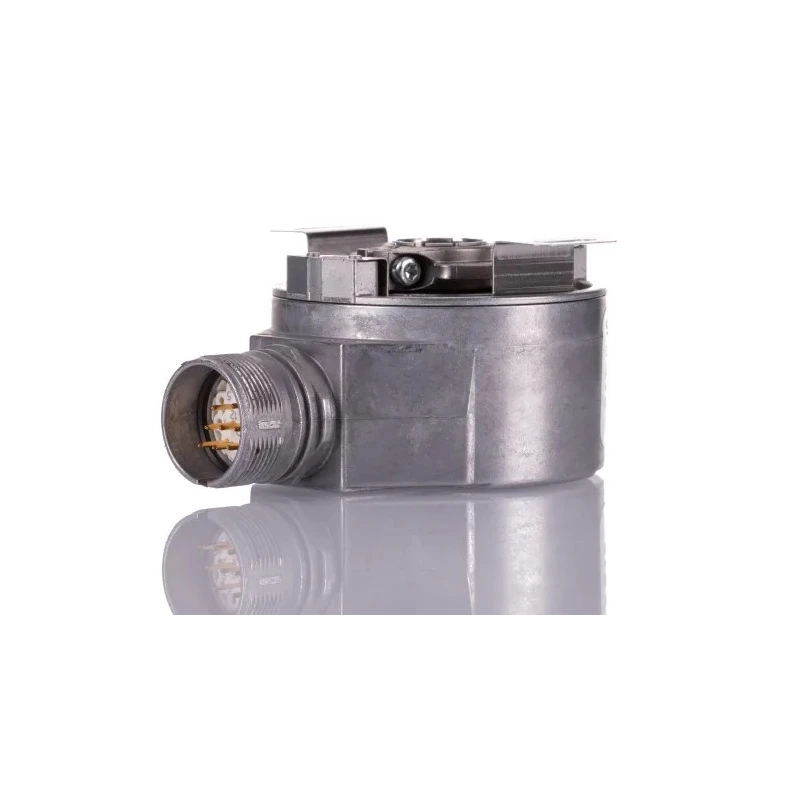

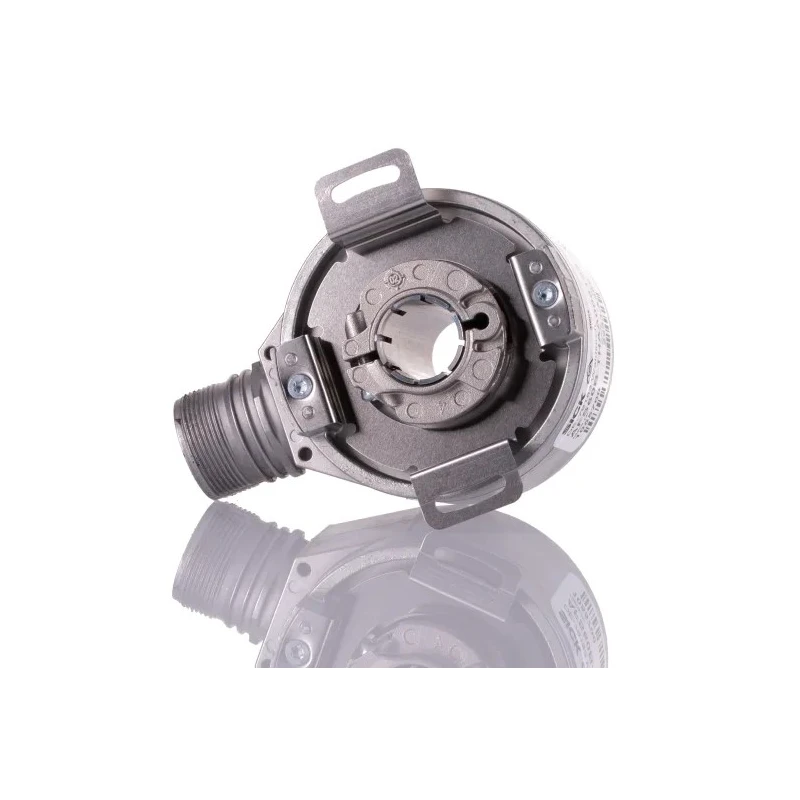

SICK AFS/AFM60 SSI Series Absolute Encoder, 32V Supply Voltage, 8192 PPR, Through Hollow Shaft 15 mm AFM60
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Operating Temperature | - 40 °C ... +100 °C (depending on the type) |
| Connectivity | M12 or M23 male connector or cable connection |
| Model | AFM60 |
| IP Rating | IP65 |
| Mount Type | Hollow Shaft Mount |
| Series | AFS/AFM60 SSI |
| Overall Width | 60mm |
| Maximum Operating Temperature | 100°C |
| Enclosure Rating | IP67 (housing), IP65 (shaft) |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 15mm |
| Overall height | 60mm |
| Shaft Type | Through Hollow Shaft |
| Terminal type | Plug-In |
| Interface Type | M23 |
| Pulses per Revolution | 8192ppr |
| Standards/Approvals | DIN ISO 1319-1, DIN ISO 55350-13 |
| Maximum Supply Voltage | 32V |
| Overall Depth | 43mm |
| Encoder Technology | Absolute |
| Maximum Revolutions | 9000rpm |
| Output Signal Type | SSI |
| Large selection of mechanical interfaces and electrical contacting options | suitable for all applications |
Key Features
- High resolution absolute encoder suitable for precision rotary measurement.
- Operating voltage up to 32V with robust SSI output signal.
- Through hollow shaft design with a diameter of 15 mm for versatile mounting.
- Compact dimensions of 60 mm height and width with 43 mm depth.
- Wide operating temperature range from -40°C to 100°C for harsh environments.
- Enclosure protection rated IP67 housing and IP65 shaft for industrial durability.
- Maximum rotational speed up to 9000 rpm for dynamic applications.
- M23 plug-in interface for secure electrical connection.
Product Description
The SICK AFM60 SSI Series Absolute Encoder is a high-precision rotary encoder designed for industrial motion control applications. Featuring an Absolute Encoder technology with up to 30 bits resolution, it delivers accurate positioning and speed measurement with an output of 8192 pulses per revolution. Operating on a 32V supply voltage, this encoder integrates a through hollow shaft with a 15 mm diameter, allowing flexible and compact mounting in machines.
Designed in Germany and certified to DIN ISO 1319-1 and DIN ISO 55350-13 standards, the AFM60 offers excellent reliability and long-term durability. It supports SSI interface signals and is offered with M23 plug-in connections, ensuring robust electrical communication in demanding environments. Its IP67 rated housing and IP65 shaft sealing provide protection against dust and water ingress, making it suitable for factory automation, packaging, printing presses, and wood processing machinery.
With a maximum rotational speed of 9000 rpm and an operating temperature ranging from -40°C to 100°C, the AFM60 is engineered for harsh industrial settings. The product family allows programmability of resolution, offsets, and other parameters with dedicated programming tools like PGT-08-S or PGT-10-Pro, reducing inventory and enhancing machine availability.
The compact overall dimensions (60 x 60 x 43 mm) and hollow shaft mount type facilitate installation even in space-constrained applications. Its long bearing distance delivers superior rotational accuracy compared to blocked ball bearing designs. This encoder is widely used in measurement of absolute position, press stroke height adjustment, azimuth motor control, pitch motor control, and speed monitoring of various industrial machines.
High resolution absolute rotary encoder with configurable parameters. Through hollow shaft with 15 mm diameter for versatile mounting options. Industrial IP67 housing and IP65 shaft sealing for harsh conditions. Wide temperature and speed operational range suitable for diverse applications.
German-made with compliance to DIN ISO standards ensuring quality and performance. Explore more precision sensors and encoders at EnvMart to enhance your industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the AFM60 encoder is 32V.
This model has a resolution of 8192 pulses per revolution (PPR).
The operating temperature range for the AFM60 is from -40°C to 100°C.
It uses an SSI output signal type for communication.
The through hollow shaft has a diameter of 15 mm.
The overall dimensions of this unit are 60 mm in height and width, with a depth of 43 mm.
The maximum rotational speed of this encoder is 9000 rpm.
It features an M23 plug-in connector for secure electrical connection.
The housing is rated IP67, while the shaft is rated IP65 for protection against dust and water ingress.
It is certified to DIN ISO 1319-1 and DIN ISO 55350-13 standards.
This encoder is suitable for applications such as absolute position measurement, speed monitoring, and motor control in industrial environments.
The AFM60 is designed with a through hollow shaft mount type, allowing for flexible installation.
