Baumer ARS60 Series Absolute Encoder, IP65 Rated, 32V DC Supply, 8192 ppr, SSI Interface, Solid 10 ARS60-A4A08192 / 1031447

Free Delivery in India | Lowest Global Shipping Charges

Baumer ARS60 Series Absolute Encoder, IP65 Rated, 32V DC Supply, 8192 ppr, SSI Interface, Solid 10 ARS60-A4A08192 / 1031447

Name: Baumer ARS60 Series Absolute Encoder, IP65 Rated, 32V DC Supply, 8192 ppr, SSI Interface, Solid 10 ARS60-A4A08192 / 1031447
Brand: Baumer
SKU: 395428
Price: 1394.31 USD
Availability: InStock



Category Absolute Encoder Brand Baumer Condition New

Specifications

Country of Origin	Germany
Brand	Baumer
Model	ARS60-A4A08192 / 1031447
IP Rating	IP65
Mount Type	Flange
Series	ARS60
Overall Width	78.5mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Shaft Diameter	10mm
Overall height	78.5mm
Shaft Type	Solid
Terminal type	M12 Male Connector
Interface Type	SSI-Grey
Pulses per Revolution	8192ppr
Standards/Approvals	CE, cULus
Maximum Supply Voltage	32V dc
Overall Depth	60mm
Encoder Technology	Absolute
Maximum Revolutions	10000rpm
Output Signal Type	SSI

Key Features

Provides absolute angular data for precise position sensing.
Operates with a maximum 32V DC supply voltage range.
Robust IP65 enclosure ensures protection in harsh environments.
Solid 10 mm diameter shaft designed for flange mounting.
Supports operating temperature range from -20°C to 85°C.
Equipped with M12 male connector for easy integration.
High repeatability with bearing lifetime of 3.6 billion revolutions.
Suitable for servo drive, packaging machinery, and automation applications.

Product Description

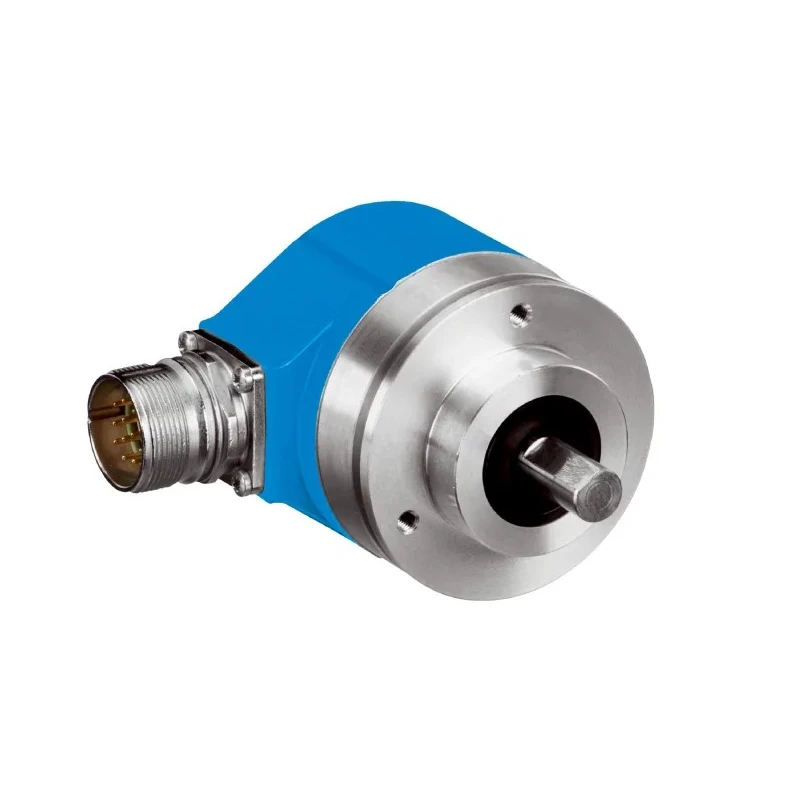

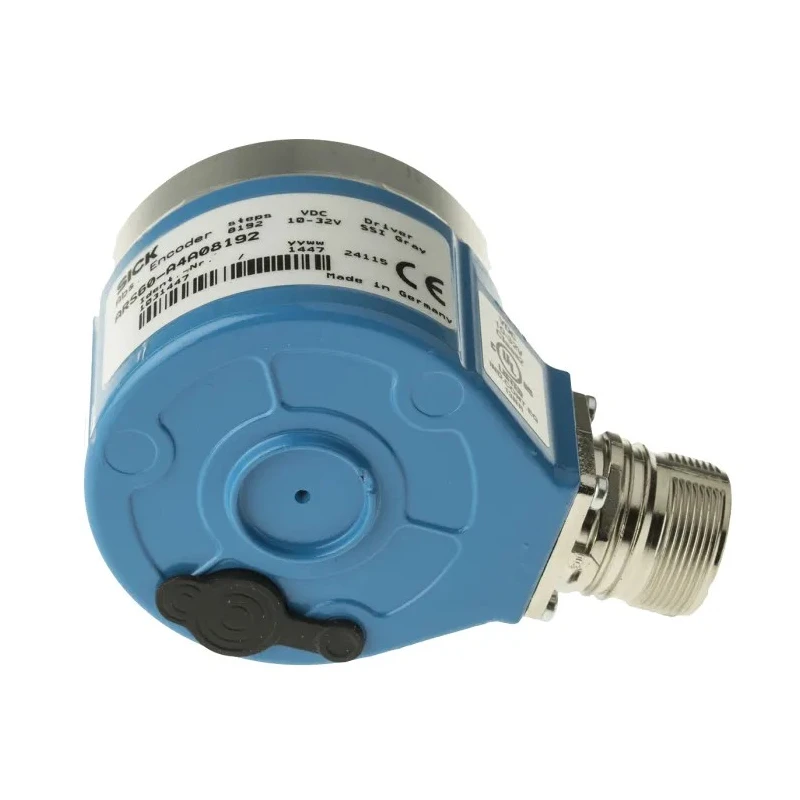

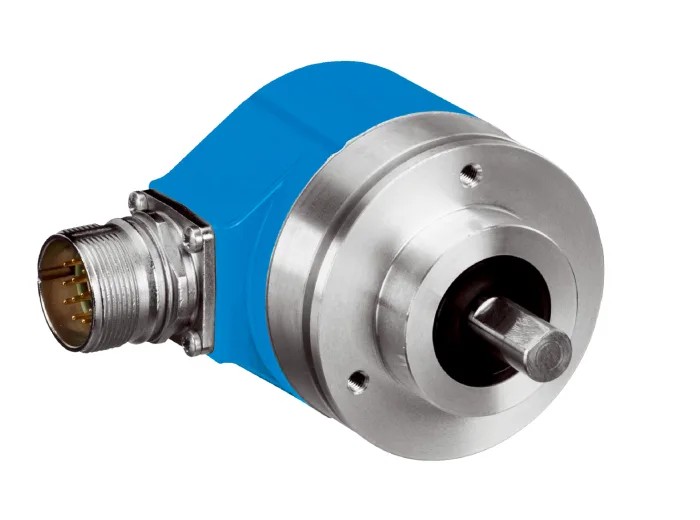

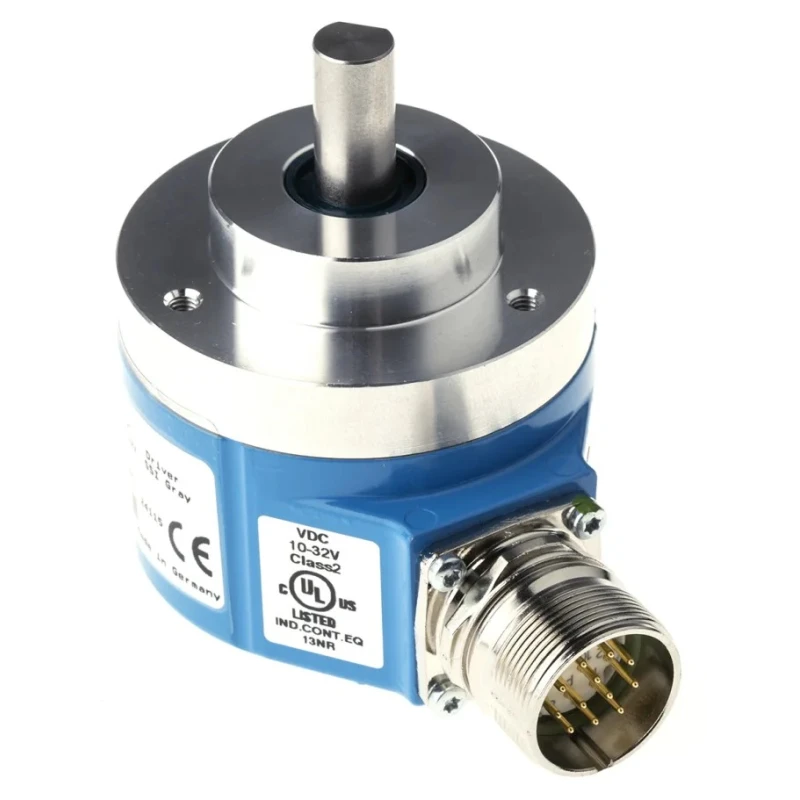

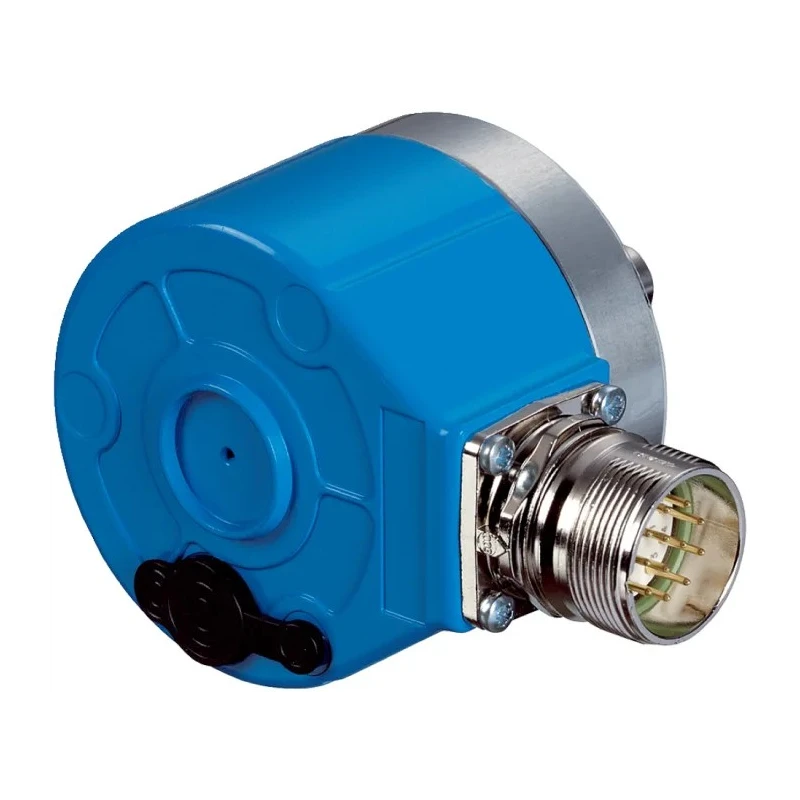

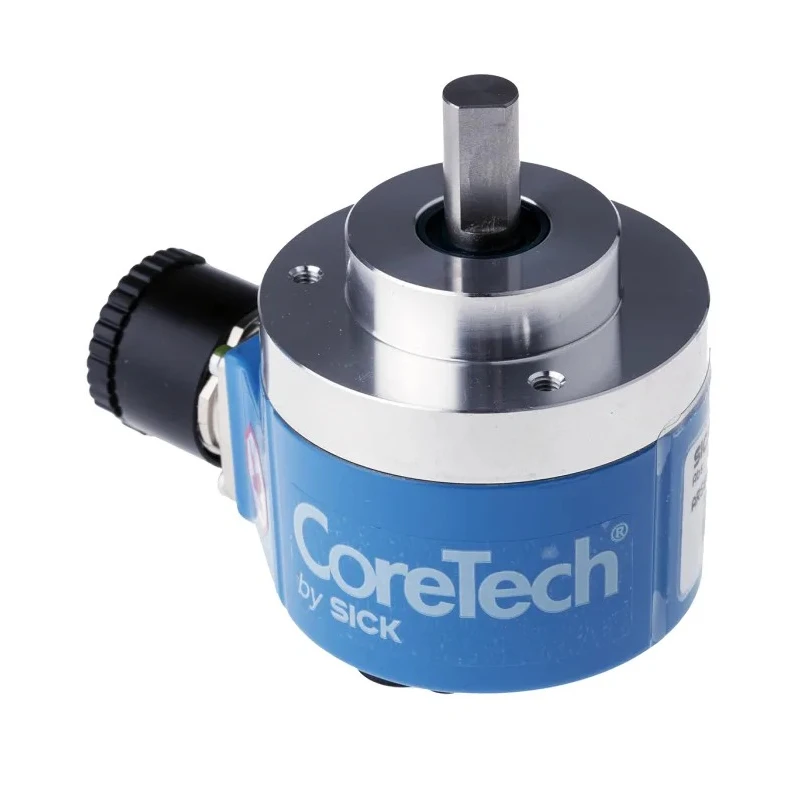

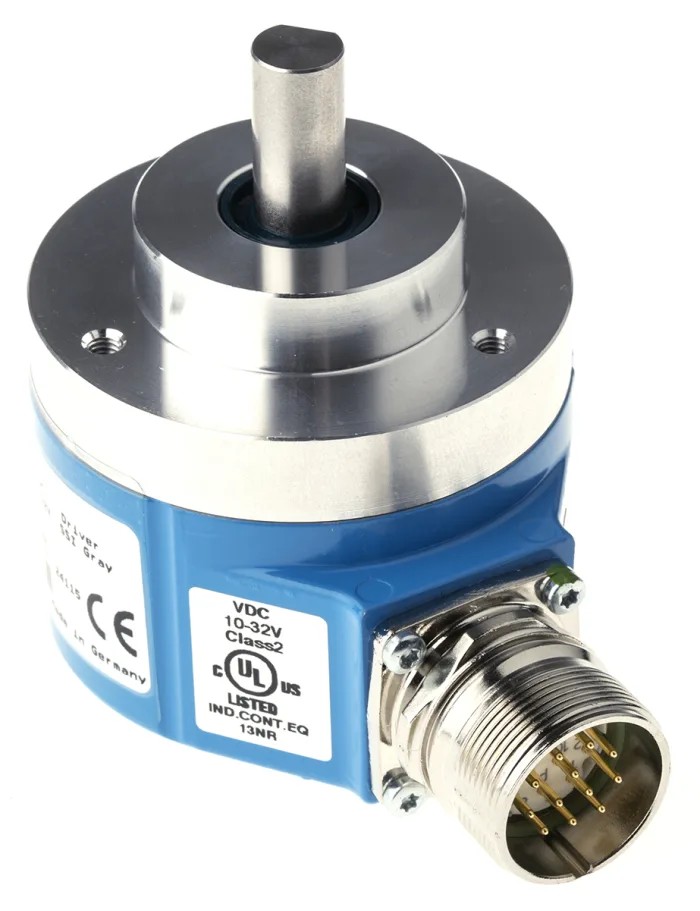

SICK ARS60-A4A08192 / 1031447 is an Absolute Encoder designed to deliver high single-turn resolution of 8192 steps via SSI-Grey interface for industrial automation applications. It supports a maximum supply voltage of 32V DC and features an IP65 rated robust enclosure, making it ideal for harsh industrial environments.

The encoder has a solid 10 mm diameter shaft and is designed for flange mounting. It features a radial M12 male connector for secure electrical connection. With a repeatability of 0.005° and a bearing life exceeding 3.6 billion revolutions, this encoder minimizes maintenance intervals and supports tight control loops.

Operational temperature ranges from -20°C to +85°C, ensuring reliability in varied environmental conditions. Shock resistance up to 50g and vibration tolerance up to 20g meet stringent industrial standards. The device is suitable for servo drives, rotary indexing tables, packaging machinery, PLCs requiring SSI feedback, and test rigs demanding high repeatability.

Absolute angular positional feedback via SSI interface. Solid 10 mm shaft with 20 N radial and 10 N axial load capacity. IP65 enclosure protects against dust and water ingress. Supports motor feedback and precise rotary indexing needs.

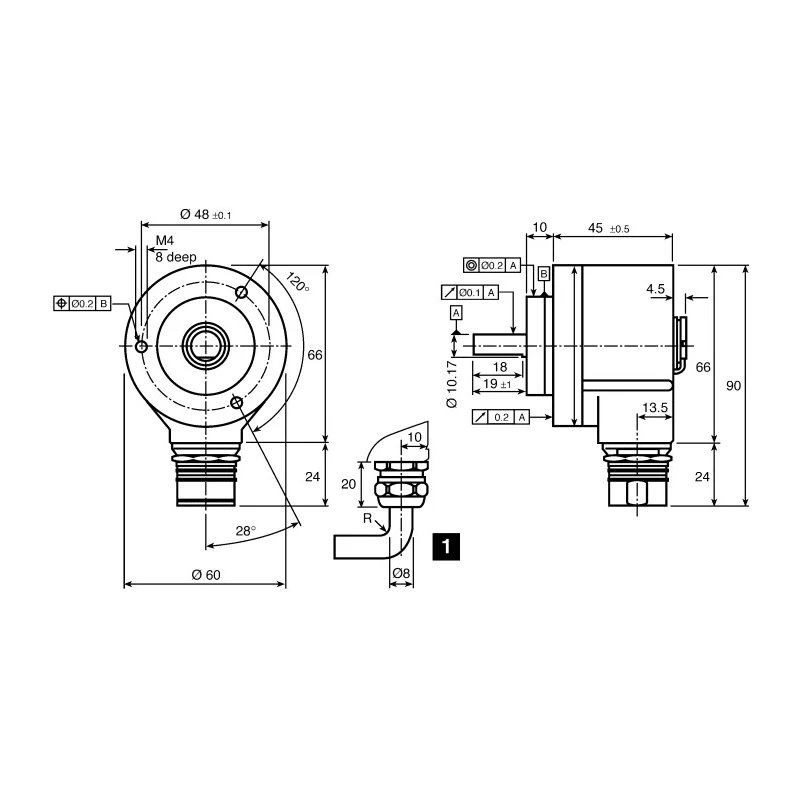

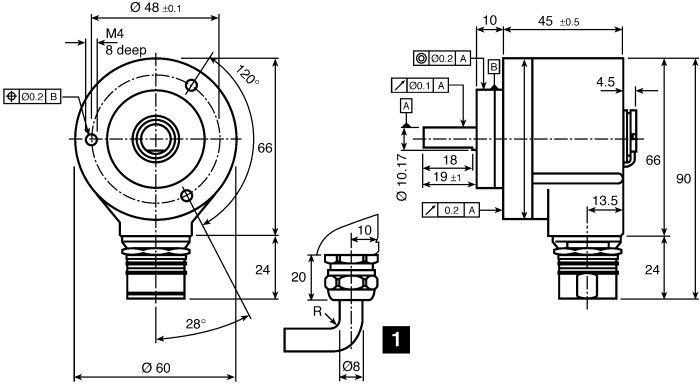

Robust mechanical and electrical design for long service life. Flange mounting type with compact dimensions (78.5 x 78.5 x 60 mm). Certified to CE and cULus standards for safety and quality.

SICK ARS60 Series encoders are ideal for industrial, automation, manufacturing, and motion control use cases that require precise and reliable absolute position data. This product is made in Germany and offers superior performance for demanding industrial environments.
