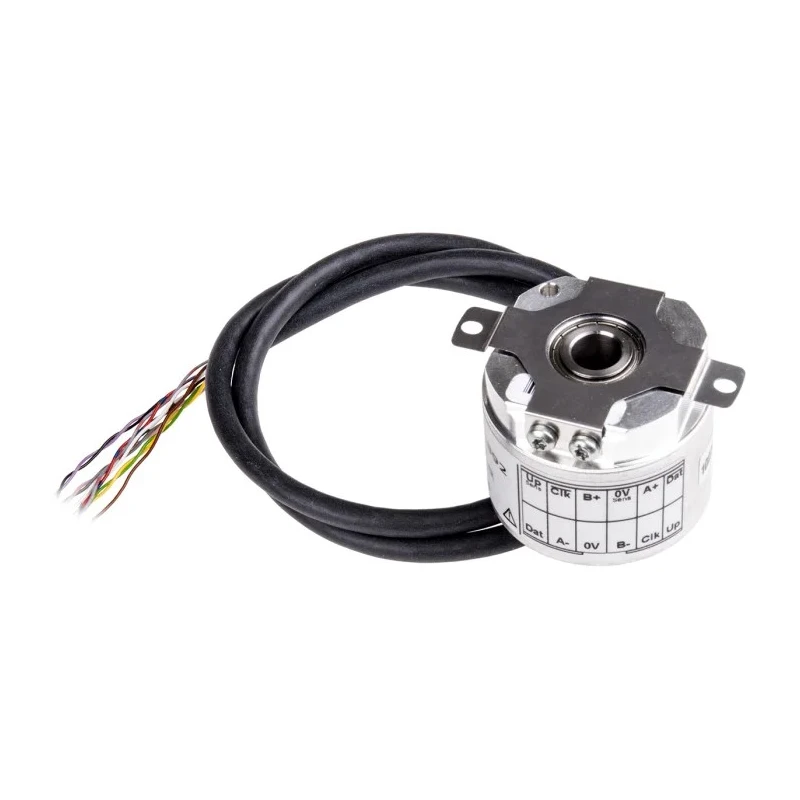

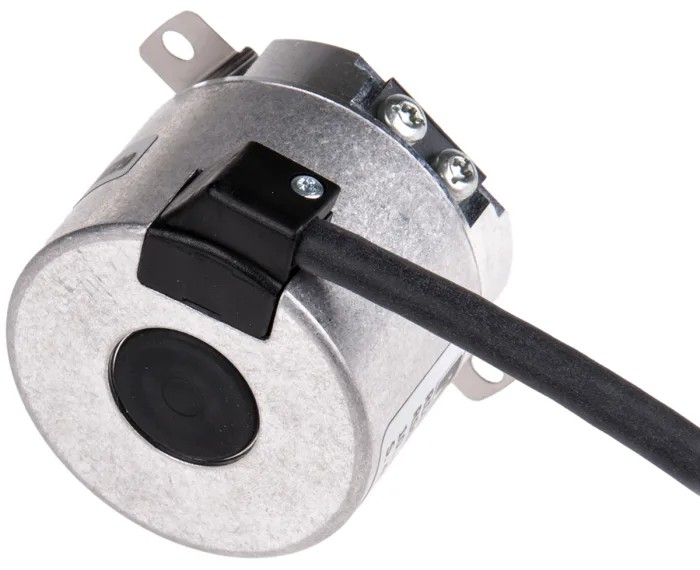

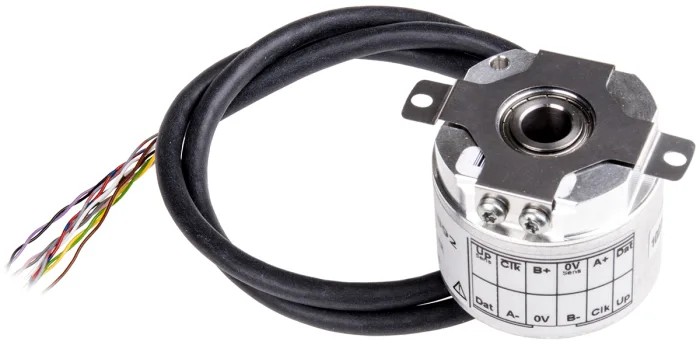

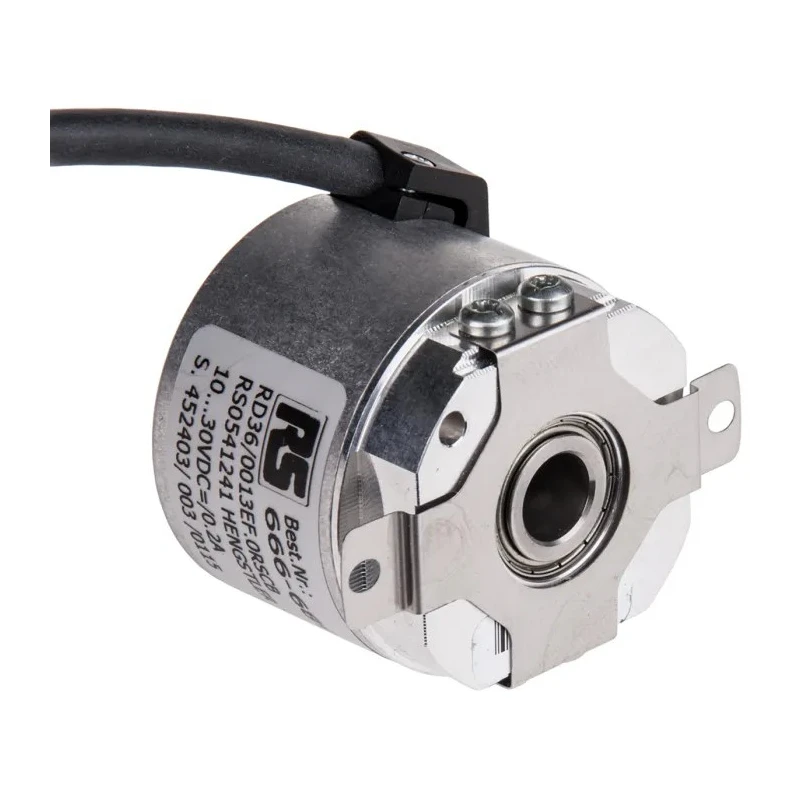

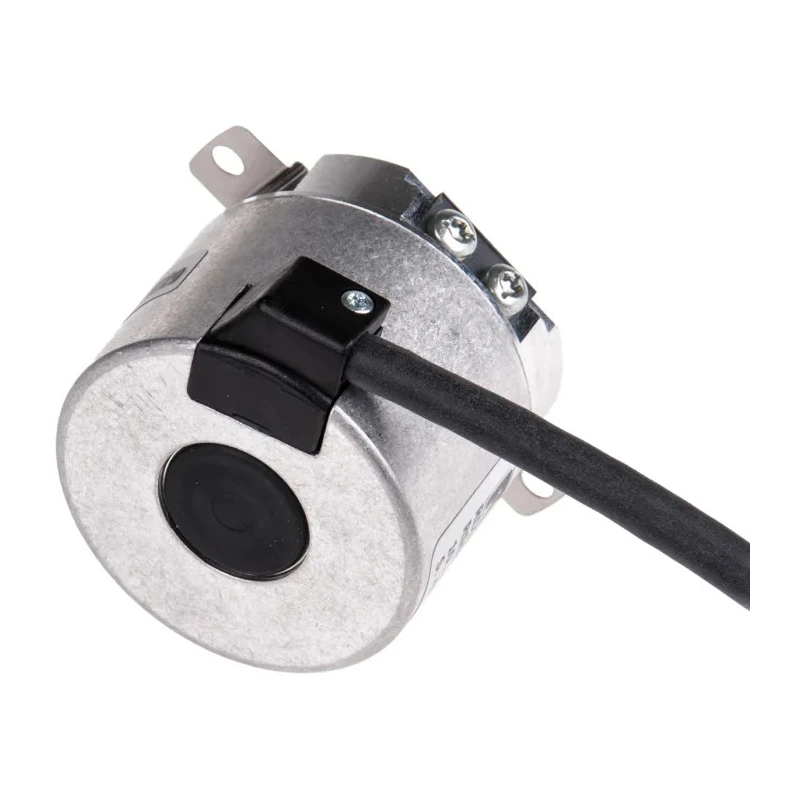

Hengstler 30V DC, 7V DC 2048 PPR Sinus-Cosinus 1 Vpp Pulse Absolute Encoder with 8mm Through Hollow Shaft AD36/0013EF.0RSCB

Hengstler AD36/0013EF.0RSCB is a high-precision absolute rotary encoder designed for industrial, automation, and HVAC control applications requiring reliable position feedback. This model supports pulse output of 2048 pulses per revolution with Sinus-Cosinus signals at 1 Vpp, facilitating accurate measurement of angular position. It features an 8mm through hollow shaft enabling straightforward integration with diverse rotary systems.

The encoder operates within a supply voltage range of 7 V to 30 V DC, suitable for various low-voltage control systems. Its spring mount design enhances mechanical stability, ensuring consistent sensor alignment and vibration durability. The device can operate at speeds up to 10,000 RPM, making it suitable for high-speed machinery and motor feedback scenarios.

With a 17-bit resolution, the encoder provides detailed and high-resolution positional output, critical for precise motion control and feedback loops. The product conforms to EN 60529 ingress protection standards, offering environmental protection and suitability for demanding manufacturing and industrial environments. It withstands temperatures ranging from -40°C to 120°C, enabling deployment in harsh operational conditions.

Manufactured in Germany, the ACURO-DRIVE series encoder delivers premium quality and reliability. It includes a 12-pole radial PCB connector with a 0.5m cable for reliable electrical connection. The through hollow shaft design simplifies installation and maintenance, while the absolute encoding eliminates the need for homing procedures after power loss.

Provides accurate absolute position feedback for industrial and automation applications. Operates at supply voltages between 7 V and 30 V DC for versatile compatibility. Supports a maximum operating speed of 10,000 RPM for high-speed machinery.

Features an 8mm through hollow shaft and spring mounting for secure mechanical fit. Ensures durability and environmental protection with EN 60529 compliance. Suitable for extreme temperature ranges from -40°C to 120°C. Offers high resolution with 17-bit optical encoder technology.

Includes a radial PCB connector with 0.5m cable for easy electrical integration.

For industrial applications requiring precise motion control, motor feedback, and automation monitoring, this Hengstler Absolute Encoder provides reliable performance with high accuracy and environmental resilience. Browse our complete range of Hengstler ACURO-DRIVE encoders and other precision sensors at EnvMart for your automation and electronics component needs.
