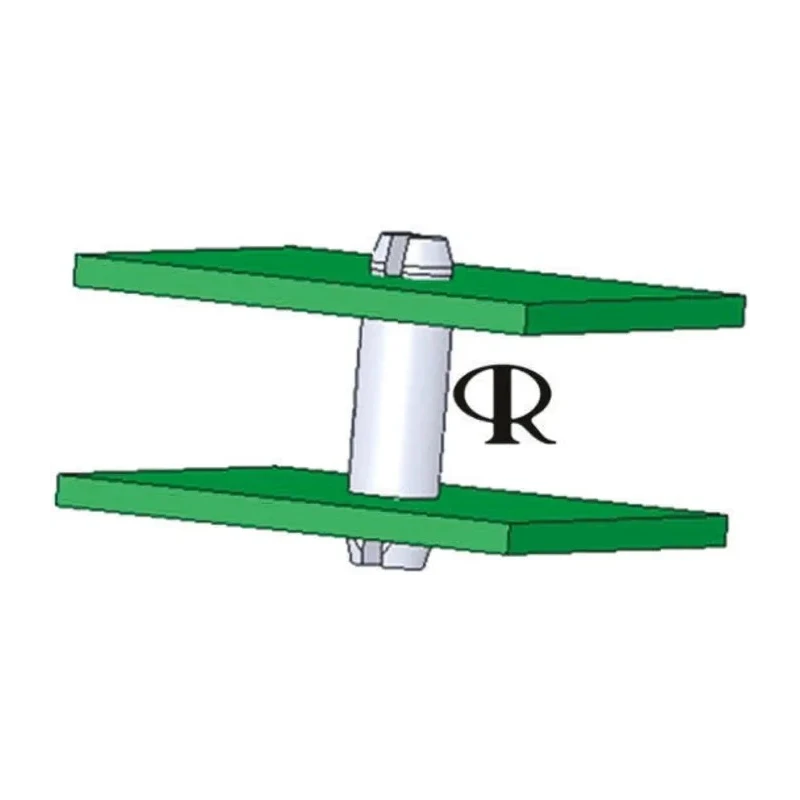

Essentra Nylon PCB Post 4.8 mm Height 12.2 mm Overall Height for 3.18 mm PCB Hole MSPM-3-01

Essentra MSPM-3-01 is a high-quality nylon PCB post engineered for use in electronic components assembly and prototype applications. Featuring a post height of 4.8 mm and an overall height of 12.2 mm, this micro-miniature support pillar is specifically designed to fit 3.18 mm diameter PCB holes and accommodate PCB thicknesses of 1.57 mm. The natural Nylon 66 material ensures durability and resistance to mechanical stress, making it suitable for industrial and laboratory electronic environments.

This PCB post features a 4.6 mm support base width which provides stable and secure mounting on printed circuit boards. It snaps easily into place on both the PCB and the chassis, eliminating the need for fixing screws, thus streamlining assembly and maintenance tasks. The posts can also be manually released by hand, facilitating quick disassembly and rework when needed.

Compliant with RoHS directives, the component meets safety and environmental standards required for electronic manufacturing. Originating from the United Kingdom, the MSPM-3-01 adheres to strict quality controls ensuring consistent performance and reliability in sensitive electronic applications.

Typical usage scenarios include industrial electronics manufacturing, laboratory prototyping, electronic equipment assembly, and PCB support during soldering and testing processes. Its miniature size is well suited for compact and dense PCB layouts.

Constructed from durable natural Nylon 66 material. Micro-miniature post snaps into place without any fixing screws. Suitable for PCB thickness of 1.57 mm. Support base width measures 4.6 mm for stable mounting. Complies with RoHS standards for safety and environmental protection.

Originates from the United Kingdom, ensuring quality manufacturing. Designed for easy manual release from both chassis and PCB. Ideal for electronic component prototyping and PCB assembly support. Discover a wide range of PCB Supports and electronic components on EnvMart for your industrial and laboratory requirements.
