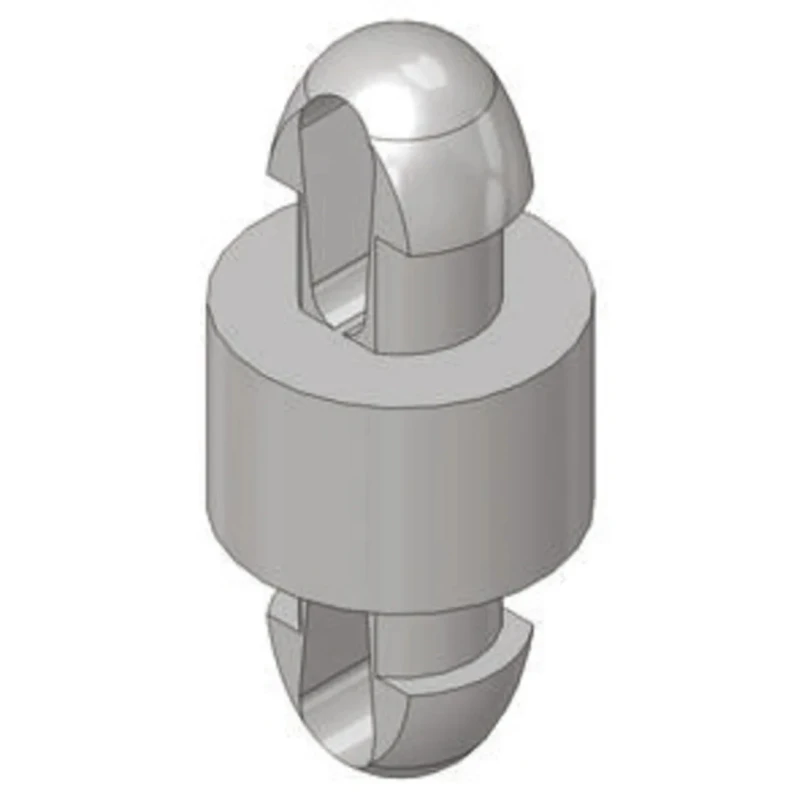

Essentra Nylon PCB Post 8 mm Height, 12 mm Overall Height, 2.5 mm PCB Hole Diameter MDLSP-1-100-8M-01

Essentra MDLSP-1-100-8M-01 nylon PCB post is a high-quality component designed for secure mechanical support in electronic circuit boards. Made from durable nylon, it ensures high electrical insulation and mechanical stability.

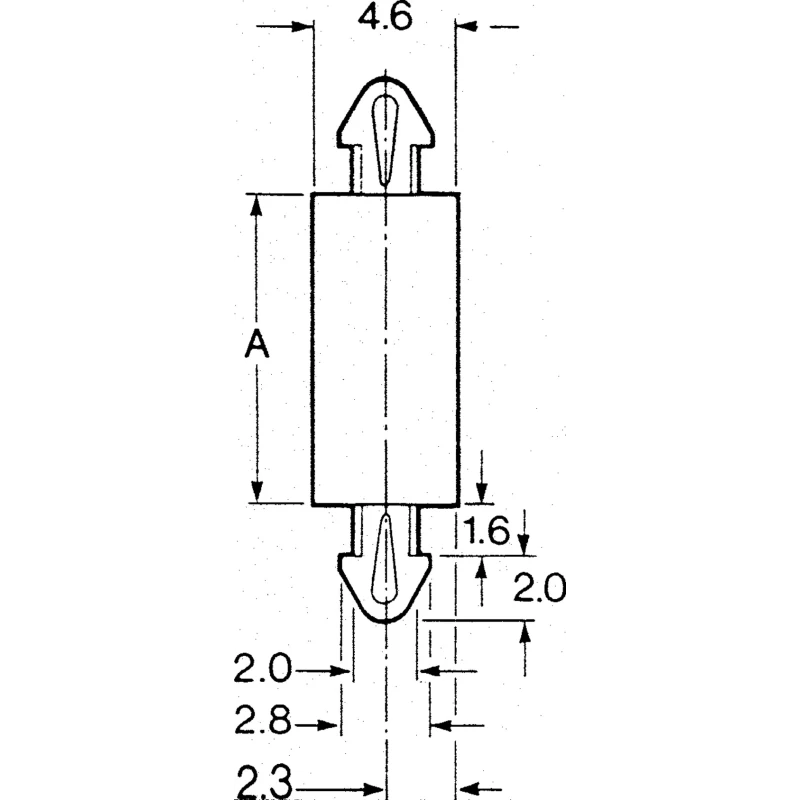

This PCB post is 8 mm high with an overall height of 12 mm, engineered to fit 2.5 mm diameter PCB holes and support boards with a thickness of 1.65 mm. The support base width of 4.6 mm provides a stable footprint for mounting applications.

Compliant with RoHS standards, this component is environmentally safe and widely used in LCD display mounting and various electronic prototyping applications.

Installation requires manual mounting, with the mounting system designed to be identical on both the board side and the chassis side for ease of assembly and consistent support. Its nylon construction offers strength while being lightweight and resistant to corrosion.

Durable nylon material ensures electrical insulation. 8 mm height combined with 12 mm overall height supports robust mounting. Fits a 2.5 mm PCB hole diameter precisely. 4.6 mm support base provides stability. RoHS compliance guarantees environmental safety.

Typical LCD display mounting use case in electronics industry. Manual installation with identical mounting on both sides.

This component is ideal for industrial electronics manufacturing, laboratory prototyping, and commercial electronic assembly environments. The part is manufactured in the United Kingdom ensuring high-quality standards.
