JST Right Angle Through Hole Shrouded PCB Header 26 Contacts 2 mm Pitch 2 Row S26B-PHDSS (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

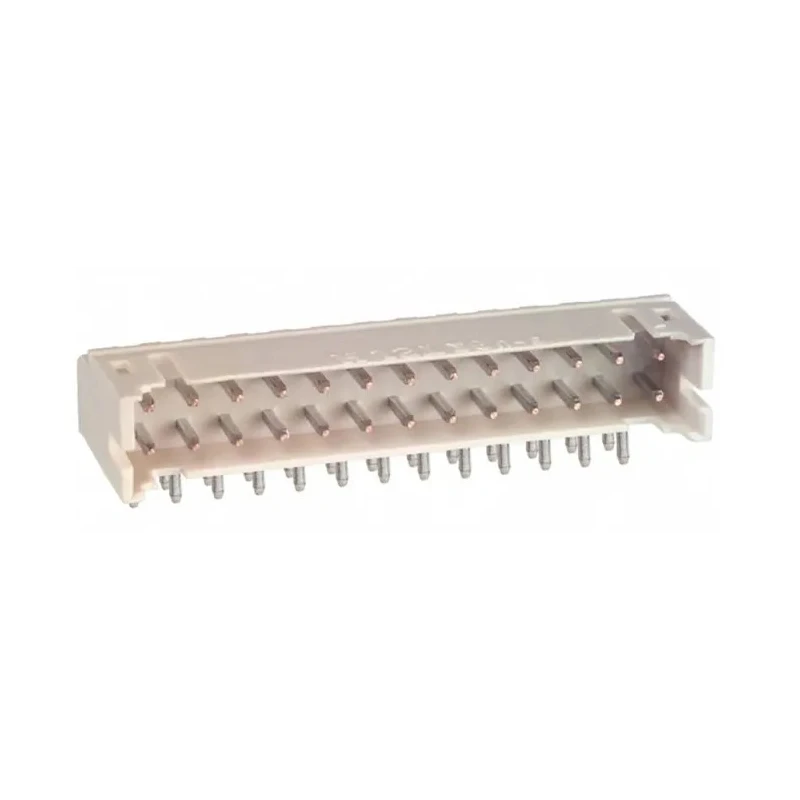

JST Right Angle Through Hole Shrouded PCB Header 26 Contacts 2 mm Pitch 2 Row S26B-PHDSS (LF)(SN)



Category PCB Connector Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S26B-PHDSS (LF)(SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PHD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	26
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Shrouded design prevents incorrect mating and contamination.
Double row contact configuration ensures high density connection.
Compact low profile with 8.8 mm height after mating.
Suitable for 250V operating voltage and up to 3A current.
Contact material is copper alloy with tin plating for reliable conductivity.
Operating temperature range from -25°C to 85°C.
Through hole mount type for secure PCB mounting.
Male contact gender ensures firm connection with mating components.

Product Description

JST S26B-PHDSS (LF)(SN) Right Angle Through Hole Shrouded PCB Header is a high-density 2.0 mm pitch connector featuring 26 contacts arranged in 2 rows. Its shrouded design effectively prevents incorrect mating and protects contacts from flux and contaminant intrusion, making it highly reliable for industrial electronic applications.

This right angle connector is designed with a compact, low profile, with a height of just 8.8 mm after mating. It supports a 250V voltage rating and a current of up to 3A, making it suitable for a wide range of PCB assembly requirements where space and performance are critical.

The contact pins are made from copper alloy and plated with tin to ensure excellent electrical conductivity and corrosion resistance. The connector system adopts wire-to-board configuration with a through hole mount method, ensuring secure soldered connections onto the PCB. Operating temperature ranges from -25°C to 85°C support diverse environmental conditions.

This JST PHD Series connector is perfect for industrial, laboratory, manufacturing, and electronic device assembly use cases requiring compact, robust, and precise PCB connectivity solutions. It helps maintain efficient signal integrity and mechanical stability in complex electronic systems.

Shrouded to prevent incorrect mating and contamination. Double row configuration enables compact high-density connections. Low profile design of 8.8 mm height after mating. Supports 250V voltage and 3A current rating. Copper alloy contacts with tin plating for durability and conductivity.

Through hole solder termination for secure PCB mounting. Wide operating temperature range of -25°C to 85°C. Ideal for electronic components, industrial, and manufacturing applications. Discover our extensive range of PCB headers and connectors at EnvMart to find perfect compatibility for your electronic assembly needs.
