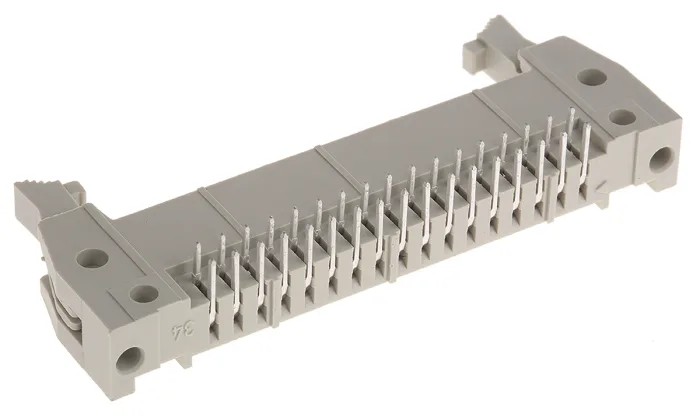

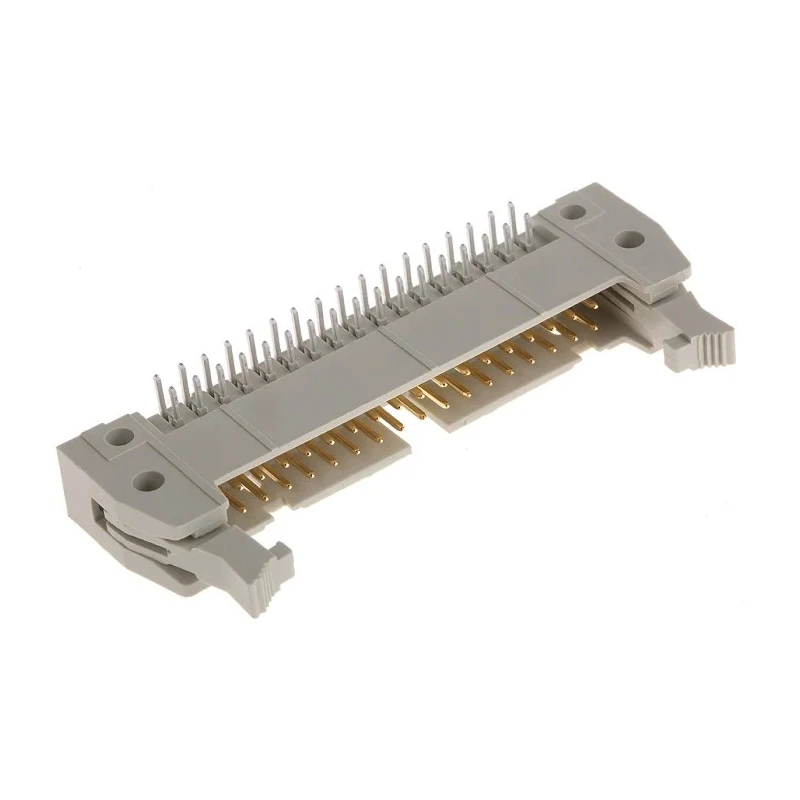

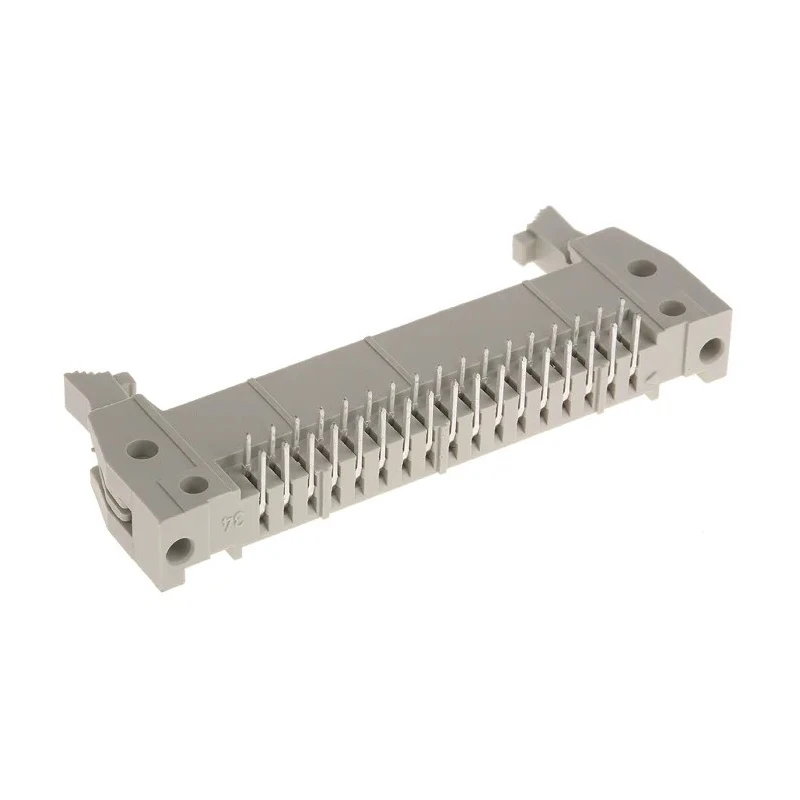

HARTING SEK 18 Series Right Angle Through Hole PCB Header 34 Contacts 2.54 mm Pitch 2 Row Shrouded 09185346903

Free Delivery in India | Lowest Global Shipping Charges

HARTING SEK 18 Series Right Angle Through Hole PCB Header 34 Contacts 2.54 mm Pitch 2 Row Shrouded 09185346903

Name: HARTING SEK 18 Series Right Angle Through Hole PCB Header 34 Contacts 2.54 mm Pitch 2 Row Shrouded 09185346903
Brand: HARTING
SKU: 184005
Price: 4.71 USD
Availability: InStock



Category PCB Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Voltage	1000V
Brand	HARTING
Orientation	Right Angle
Current	1A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	SEK 18
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	34
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header supports a maximum current of 1 ampere for stable electrical performance.
Constructed with a polybutylene terephthalate housing for durability under varied conditions.
Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
The right-angle orientation allows efficient board layout and soldering through-hole mount compatibility.
Rated for voltage up to 1000 V and operating temperatures from -55°C to 125°C.
Termination type is solder, providing strong mechanical and electrical joint integrity.
Designed with a shrouded connector system to prevent misalignment during mating.
Complies with IEC 60 603-13 standards, ensuring quality and interoperability.

Product Description

HARTING 09185346903 SEK 18 Series Right Angle Through Hole PCB Header offers a high-quality, durable connector solution tailored for electronic and industrial applications. The connector features 34 male contacts arranged in 2 rows with a 2.54 mm pitch, designed for wire-to-board mounting with through-hole solder termination.

Constructed with a robust polybutylene terephthalate housing material, the shrouded design provides protection and secure mating. Contacts are made of copper alloy and plated with gold to enhance conductivity and resist corrosion. The right-angle orientation optimizes board space and solder junction reliability.

The header supports current up to 1 Ampere and withstands voltages up to 1000 V, making it suitable for versatile electronic environments. With an operating temperature range from -55°C to 125°C, it performs reliably under demanding thermal conditions.

This product complies with IEC 60 603-13 standards and has no additional approvals stated. The termination method is solder, ensuring a reliable connection to printed circuit boards.

Ideal for industrial, electronic manufacturing, and PCB assembly applications, the HARTING SEK 18 Series headers deliver precise electrical connectivity and mechanical stability, supporting the design and production of complex electronic systems.

This PCB header supports a maximum current of 1 ampere for stable electrical performance. Constructed with a polybutylene terephthalate housing for durability under varied conditions. Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.

The right-angle orientation allows efficient board layout and soldering through-hole mount compatibility. Rated for voltage up to 1000 V and operating temperatures from -55°C to 125°C. Termination type is solder, providing strong mechanical and electrical joint integrity.

Designed with a shrouded connector system to prevent misalignment during mating. Complies with IEC 60 603-13 standards, ensuring quality and interoperability. Browse the complete range of PCB Connectors and headers at EnvMart for reliable and precision-engineered electronic components across industrial and commercial sectors.
