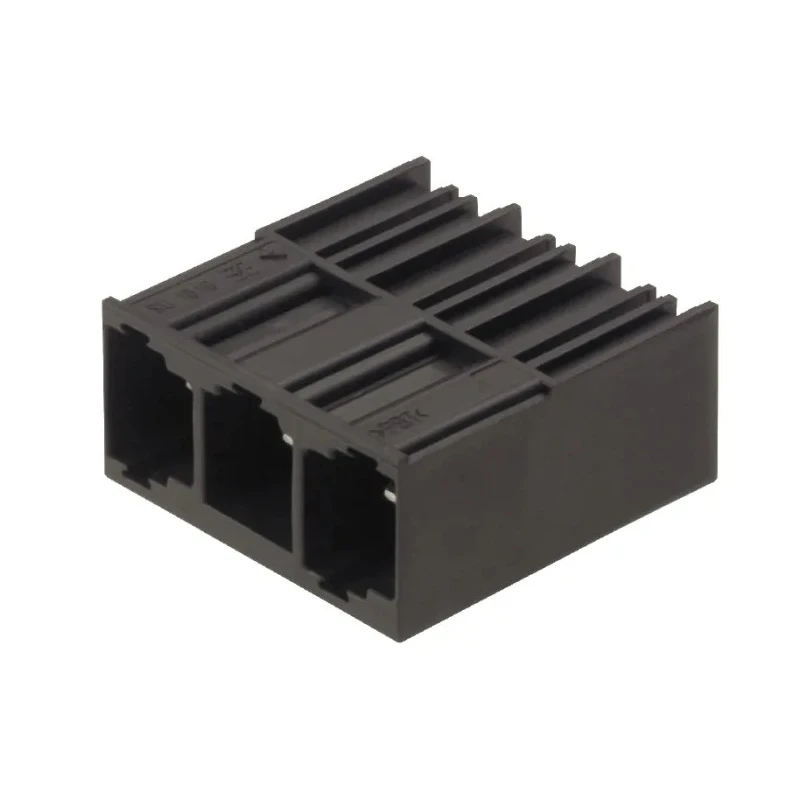

Weidmüller BU/SU 10.16HP Series PCB Connector 6-Contact 10.16 mm Pitch 1 Row 1kV 60A Male Header 90° Orientation 1813370000

Weidmüller 1813370000 PCB Connector from the BU/SU 10.16HP Series is a robust electronic component designed for high-current and high-voltage applications on printed circuit boards. Featuring a single-row 6-contact male header with a 10.16 mm pitch and an orientation of 90°, it is engineered for secure mounting and reliable operation in industrial, manufacturing, electronic assembly, and power distribution contexts.

The connector's housing is made from fibreglass reinforced polybutylene terephthalate, providing strength and resistance to environmental stresses. It supports high electrical loads, rated at 60 amperes and 1 kilovolt, and complies with key international standards such as UL 1059, IEC 61984, and IEC 60664-1, ensuring safety and performance reliability.

Designed for wave soldering with optimised 3.5 mm pin length, the connector facilitates efficient assembly on through-hole technology (THT) PCBs. The unique mating profile prevents incorrect connections and includes a patented flange design for fast locking without tools, enhancing maintenance convenience and reducing installation time.

This component is suitable for a wide range of uses including industrial automation, power electronics, control panels, and equipment requiring durable plug-in connections. Its black colour housing aids in consistent system identification and wiring arrangement.

Key physical dimensions include a length of 60.96 mm, width of 13.16 mm, and depth of 32 mm, balancing compact size with functional performance. Being manufactured in the Czech Republic underscores its quality craftsmanship and adherence to stringent manufacturing processes.

The connector features 6 contacts in a single row with 10.16 mm pitch for PCB integration. Rated for 60A current and 1kV voltage ensuring robust electrical performance. Constructed with fibreglass reinforced polybutylene terephthalate housing for durability.

Designed with a male header and 90° orientation supporting wave soldering processes. Complies with UL 1059, IEC 61984, IEC 60664-1 standards and RoHS compliant. Black colour housing facilitates easy identification and integration.

Compact dimensions of Length 60.96mm, Width 13.16mm, Depth 32mm. Manufactured in Czech Republic maintaining quality assurance. Explore the Electronics Components category on EnvMart for advanced PCB Connectors and related industrial solutions from Weidmüller and other reputed brands.
