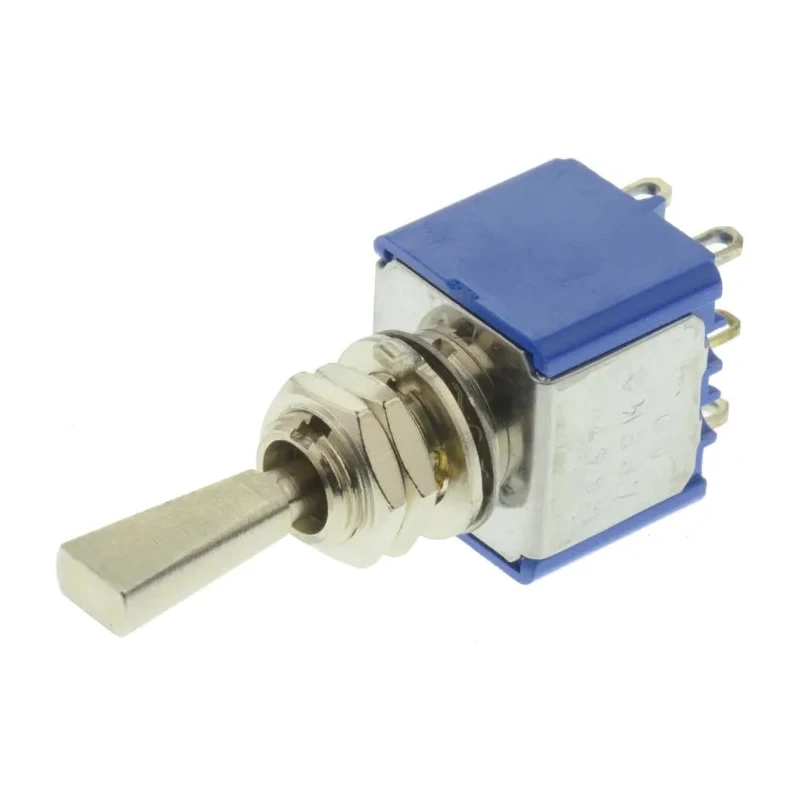

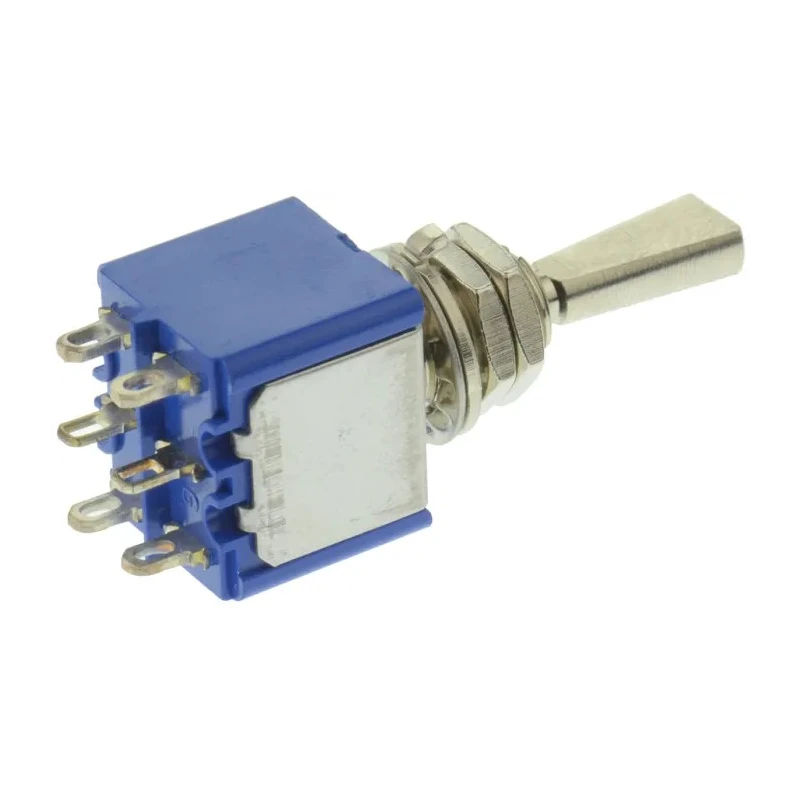

APEM Toggle Switch Panel Mount On-Off-On DPST Solder Terminal 30V DC 250V AC 5647A9
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 34.2mm |
| Length | 13.2mm |
| Model | 5647A9 |
| Width | 12mm |
| Mount Type | Panel |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Switch Configuration | (On)-Off-(On) |
| Minimum Operating Temperature | -40°C |

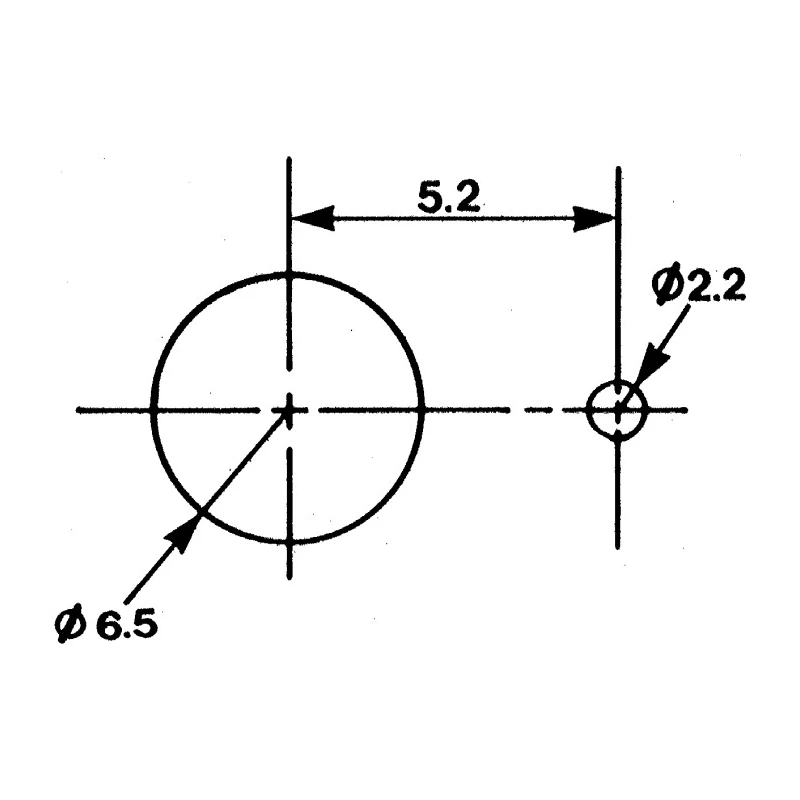

| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder |
| Standards/Approvals | UL, RoHS, CSA, CECC |
| Switch Operation | On-Off-On |
| Actuator Length | 11.4mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- Features panel mount installation with a 6.5 mm cutout size for precise fitting.
- Switch operation is On-Off-On with Double Pole Single Throw (DPST) contact configuration.
- Capacity supports switching currents up to 4A at 30V DC and 250V AC.
- Constructed with a brass actuator and Diallyl Phthalate case for durability.
- Solder terminal type ensures reliable electrical connection.
- Mechanical life rated at 100,000 operations for long-term usage.
- Operates in temperature range from -40°C to 85°C suitable for diverse environments.
- Compliance with UL, RoHS, CSA, and CECC standards ensures safety and reliability.
Product Description
APEM 5647A9 Toggle Switch is a robust panel mount switch featuring an On-Off-On DPST configuration designed for electrical and automation industries.
This toggle switch delivers reliable performance with a contact current rating of 4A supporting up to 30V DC and 250V AC applications. The solder terminal type facilitates secure connections while the brass actuator and durable Diallyl Phthalate case provide mechanical strength and resilience.
With an actuator length of 11.4 mm and compact dimensions of 34.2 mm height, 13.2 mm length, and 12 mm width, it is ideal for precise panel mounting requiring a 6.5 mm cutout. The switch operates seamlessly within temperatures ranging from -40°C to 85°C, suitable for diverse industrial and commercial environments.
Designed for 100,000 mechanical life operations, this switch complies with international standards including UL, RoHS, CSA, and CECC ensuring safety and quality assurance. Typical use cases span electrical control panels, automation equipment, industrial machinery controls, and HVAC systems where robust and reliable switching is critical.
Panel mount with 6.5 mm cutout size for secure installation. On-Off-On switch operation with a DPST contact configuration. Rated for 4A contact current at 30V DC and 250V AC. Durable brass actuator and Diallyl Phthalate case construction.
Solder terminal type for strong electrical connections. Mechanical life of 100,000 operations for long-lasting use. Operating temperature range: -40°C to 85°C. Compact dimensions with height 34.2 mm, length 13.2 mm, and width 12 mm.
Certifications: UL, RoHS, CSA, CECC compliant.
The APEM 5647A9 Toggle Switch is an excellent choice for industrial, laboratory, construction, and HVAC applications requiring reliable panel mount switching solutions. Explore more electrical switch options and panel mount components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has a maximum contact current rating of 4A.
It operates within a temperature range of -40°C to 85°C.
This model features a solder terminal type, ensuring reliable electrical connections.
The dimensions of this switch are 34.2 mm in height, 13.2 mm in length, and 12 mm in width.
The switch requires a panel cutout size of 6.5 mm for installation.
The mechanical life of this switch is rated for 100,000 operations.
It complies with UL, RoHS, CSA, and CECC standards.
The switch is rated for 30V DC and 250V AC contact voltage.
It features a Double Pole Single Throw (DPST) contact configuration.
The actuator is constructed from brass, providing mechanical strength.
This model is suitable for applications in electrical control panels, automation equipment, industrial machinery controls, and HVAC systems.
The switch operation type is On-Off-On, allowing for versatile control.
