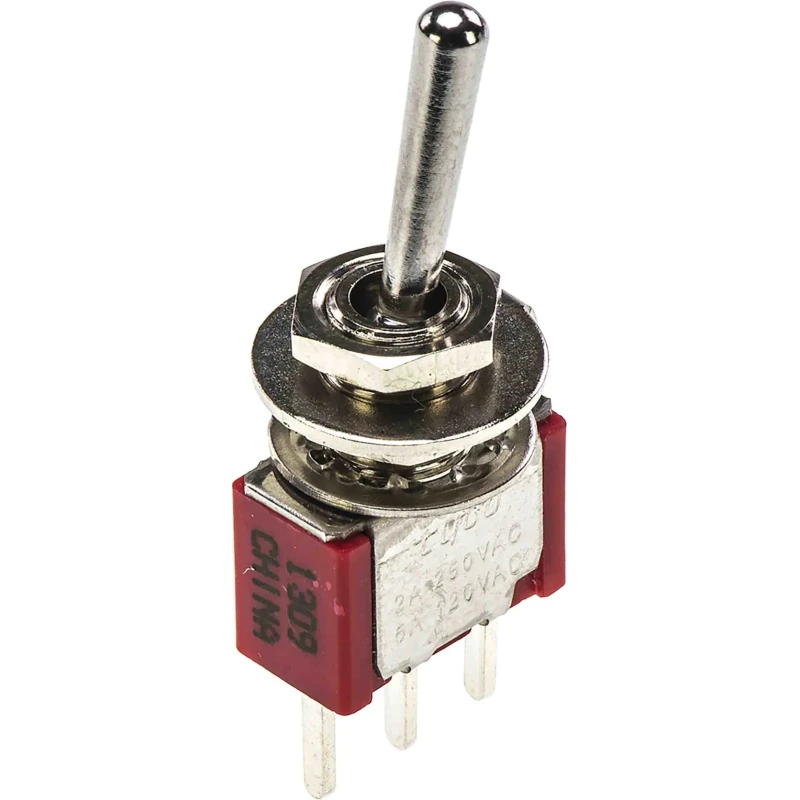

TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28 V dc 115 V ac 4-1825136-1

TE Connectivity 4-1825136-1 Toggle Switch is a PCB mount On-On SPDT type switch designed for high-reliability electronic applications. It supports a contact current of 5A and operates efficiently at contact voltages of 28 V dc and 115 V ac, making it suitable for various control and automation circuits.

The switch features a robust construction with a phenolic actuator material and epoxy sealed terminals enhancing durability and protecting against dust and moisture. Its stainless steel frame with brass tin-plated solder support ensures enhanced mechanical strength and reliable solder joints.

Compact in size with dimensions of 0.5 inches in length, 0.35 inches in height, and 0.27 inches in width, it is ideal for space-conscious PCB installations. The IP67 rating certifies its resistance against water and dust ingress, enabling usage in demanding industrial environments.

Operating temperature ranges from -30°C to 85°C provide the switch with versatility in different climatic conditions. The On-On switch configuration with break-before-make contact timing guarantees safe and effective circuit switching without short circuits.

Equipped with through-hole terminals, it ensures secure and stable solder connections to PCBs. Belonging to the Gemini A series, it complies with RoHS standards, ensuring environmental safety.

Rated 5A contact current ideal for moderate electrical loads. PCB mount with through-hole terminals for durable installation. Epoxy sealed terminals protect against environmental damage. IP67 rated for dust-tight and water immersion protection.

Compact size enables use in limited space PCB designs. Wide operating temperature range supports various applications. Stainless steel and brass components provide mechanical strength. On-On switch operation with break-before-make contact action.

RoHS compliant Gemini A series switch ensuring environmental compliance.

This Toggle Switch is suited for industrial automation, control panels, electronics manufacturing, and other demanding electrical applications requiring precise switch operation and environmental resilience. Browse the Electronics & Electricals category for related switch solutions at EnvMart.
