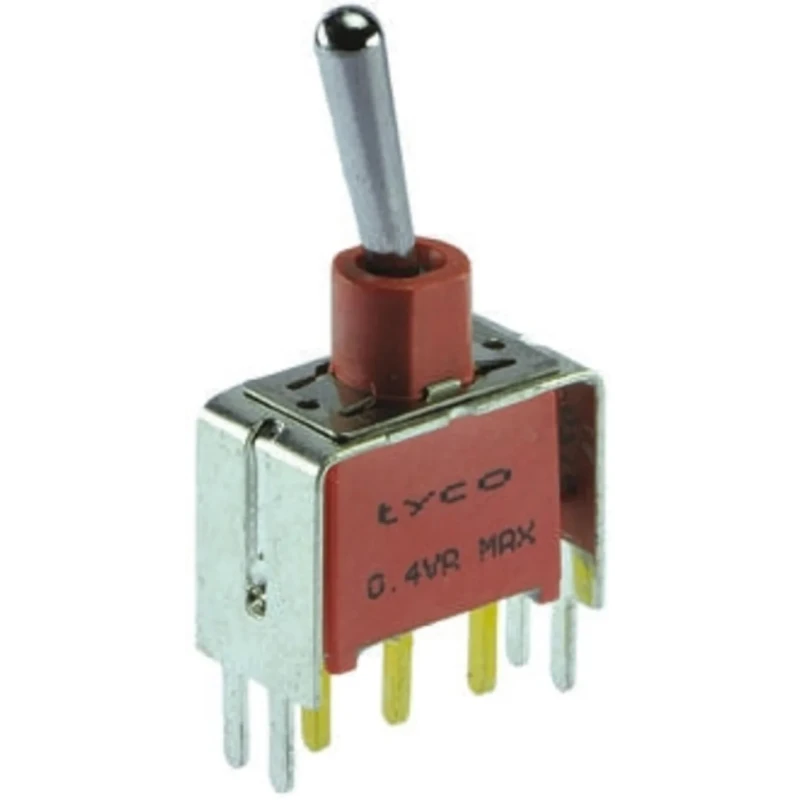

TE Connectivity Toggle Switch, PCB Mount, On-On SPDT, Through Hole Terminal, 28 V dc, 115 V ac 3-1825136-7

TE Connectivity 3-1825136-7 Toggle Switch is a high-quality PCB mount switch designed for robust industrial and electronic applications. This On-On SPDT switch operates reliably with a contact current of 5 A and supports both 28 V dc and 115 V ac voltages, making it versatile for control and signal switching tasks.

The Gemini A series toggle switch features a stainless steel frame with tin-plated brass solder support and epoxy sealed terminals, providing excellent mechanical strength and environmental protection achieved by an IP67 rating. The phenolic actuator measures 12.19 mm in length, designed for precise tactile feedback and durability.

With compact dimensions of 0.5 inches in length, 0.27 inches in width, and 0.35 inches in height, this switch fits efficiently into PCB layouts where space conservation is crucial. It operates effectively within a temperature range from -30°C up to 85°C, suitable for diverse industrial environments.

This toggle switch is supplied with through hole terminals for secure PCB mounting and ease of assembly. It finds widespread use in electrical, automation, and control systems, offering reliable switching performance under demanding conditions.

Configured as Single Pole Double Throw (SPDT) with On-On switch operation. Designed for PCB mounting with through hole terminals. Supports a switch contact current of 5 A. Rated for contact voltages of 28 V dc and 115 V ac.

Features an epoxy sealed stainless steel frame ensuring IP67 ingress protection. Actuator material is phenolic, measuring 12.19 mm in length. Operates comfortably in temperatures ranging from -30°C to 85°C. Compact dimensions: length 0.5 in, width 0.27 in, height 0.35 in.

Complies with RoHS standards ensuring environmental safety.

This switch is highly suited for use in industrial automation, electrical control panels, instrumentation, and manufacturing equipment where precise and reliable switching is required. It is an essential component for engineers and technicians requiring durable and compact Toggle Switches for PCB integration.
