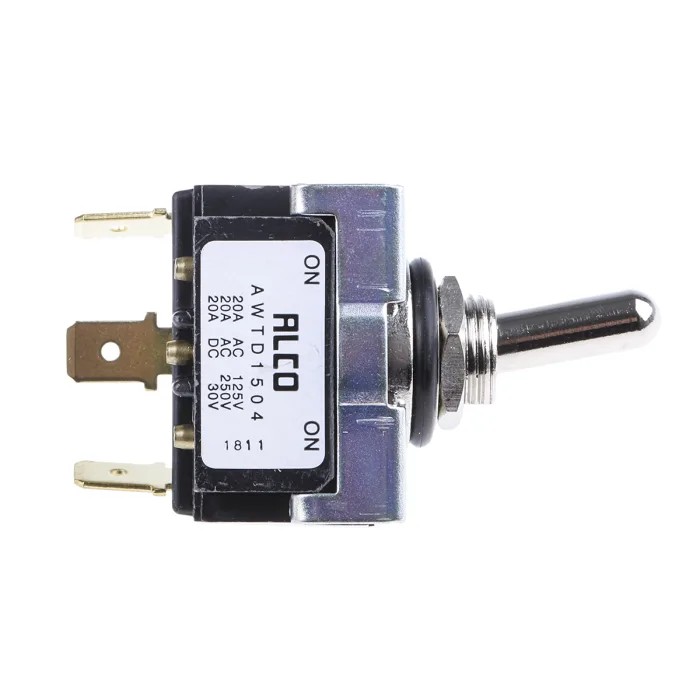

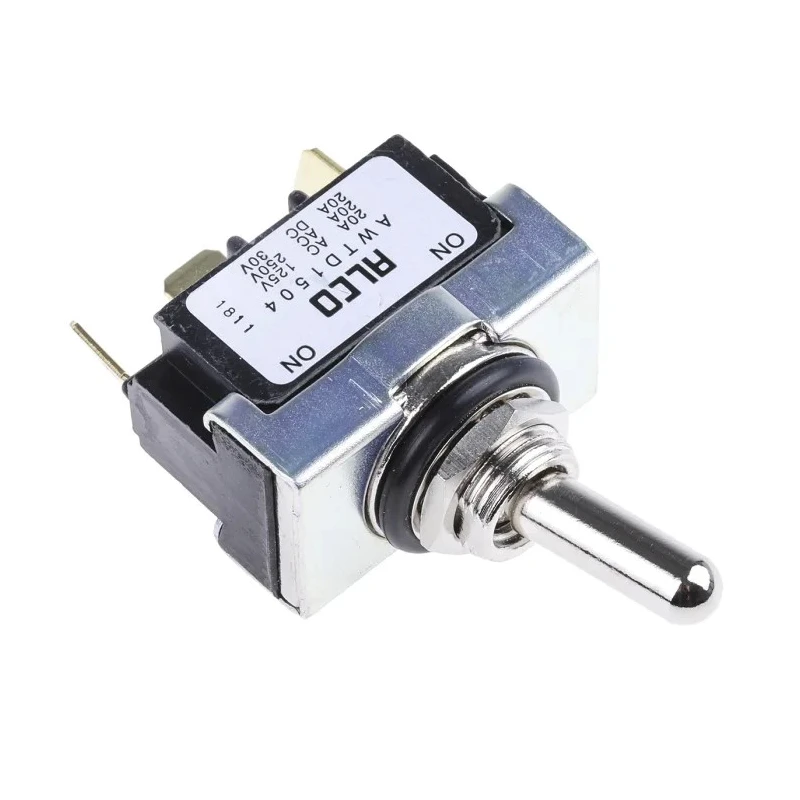

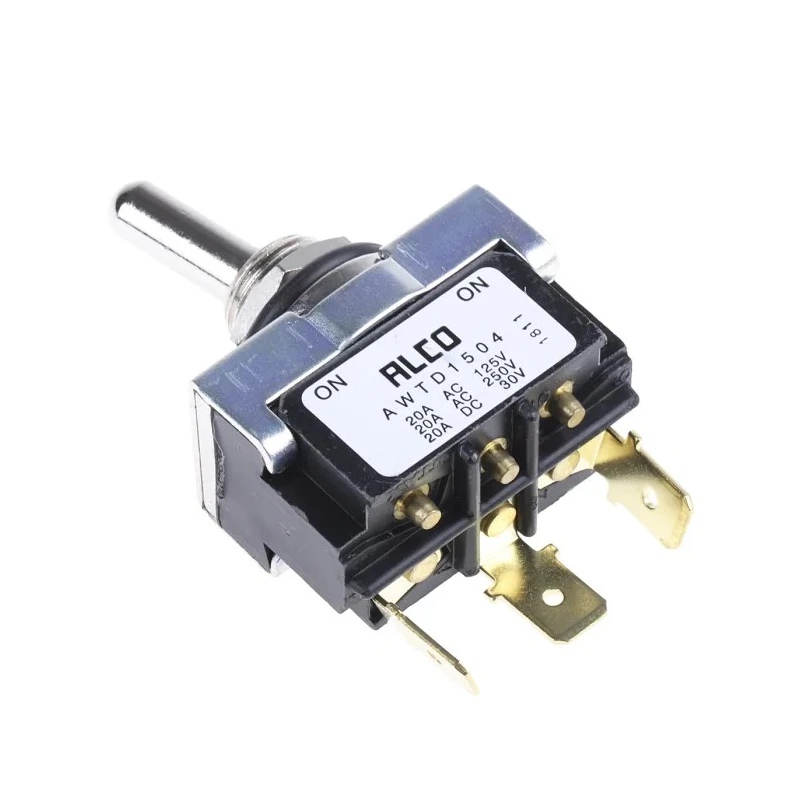

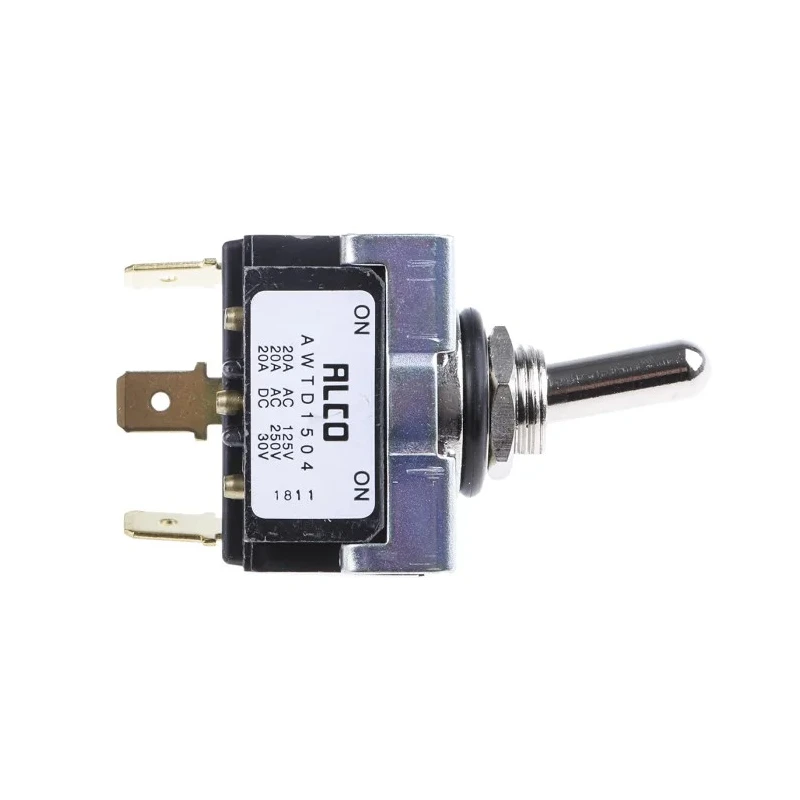

TE Connectivity Panel Mount Toggle Switch, On-On, SPDT, Tab Terminal, 30 V dc, 250 V ac AWTD1504
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | AWTD1504 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 8A |
| Mechanical Life | 40000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
| TE Connectivity Toggle Switch, Panel Mount, Latching, SPDT, Tab TerminalBrand | TE Connectivity |
Key Features
- This toggle switch supports a contact current of 8 amperes for reliable circuit control.
- Panel mount type with brass actuator and glass filled polyester case offers durability.
- Designed with silver plated contacts and sealed for waterproof IP67 protection.
- Operating temperature range from -20°C to 70°C suitable for varied environments.
- Mechanical life expectancy of 40,000 cycles ensures robust long-term use.
- Compliance with RoHS standards guaranteeing environmental safety.
- Actuator length measures 17.5 mm for precise user operation.
- Ideal for industrial automation, electrical equipment, and control panels.
Product Description
TE Connectivity AWTD1504 is a high-quality panel mount toggle switch providing On-On SPDT switching capabilities. Rated for 30V DC and 250V AC, it supports contact currents up to 8A, making it suitable for controlling various electrical circuits effectively.
This switch incorporates silver plated contacts sealed to IP67 waterproof standards, preventing ingress of dust and liquids, ensuring reliable long-lasting performance in harsh industrial and automation environments. The robust brass actuator and glass filled polyester case contribute to its durability and resistance to environmental stress.
With an actuator length of 17.5 mm, operation is ergonomic and precise, fitting seamlessly into control panels. The switch is designed to operate across a wide temperature range from -20°C to 70°C, supporting versatile industrial applications.
Mechanical endurance is rated at 40,000 cycles, providing confidence in the switch's longevity in demanding usage scenarios. The product complies with RoHS regulations, supporting environmentally responsible manufacturing standards.
The switch connects easily via standard 1/4 inch tab terminals, suitable for soldering or quick receptacle connections, facilitating installation in electrical equipment, machinery, and control systems.
This toggle switch is ideal for industrial automation equipment, HVAC controls, electrical panels, and manufacturing machinery requiring rugged and precise switching components. Its panel mounting design streamlines integration into varied control enclosures for professional installations.
Explore more premium Toggle Switches and other electrical components from TE Connectivity in the Environmental Mart catalog to meet your industry needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch supports a maximum contact current of 8 amperes.
It is rated for 30V DC and 250V AC.
This model has an IP67 rating, providing protection against dust and water ingress.
The operating temperature range is from -20°C to 70°C.
The actuator length measures 17.5 mm.
It features standard 1/4 inch tab terminals suitable for soldering or quick receptacle connections.
The mechanical life expectancy is rated at 40,000 cycles.
Yes, it complies with RoHS standards, ensuring environmentally responsible manufacturing.
The actuator is made of brass, and the switch case is constructed from glass filled polyester.
It is suitable for industrial automation, electrical equipment, and control panels.
The switch has a single pole double throw (SPDT) contact configuration.
This toggle switch is designed for panel mounting.
