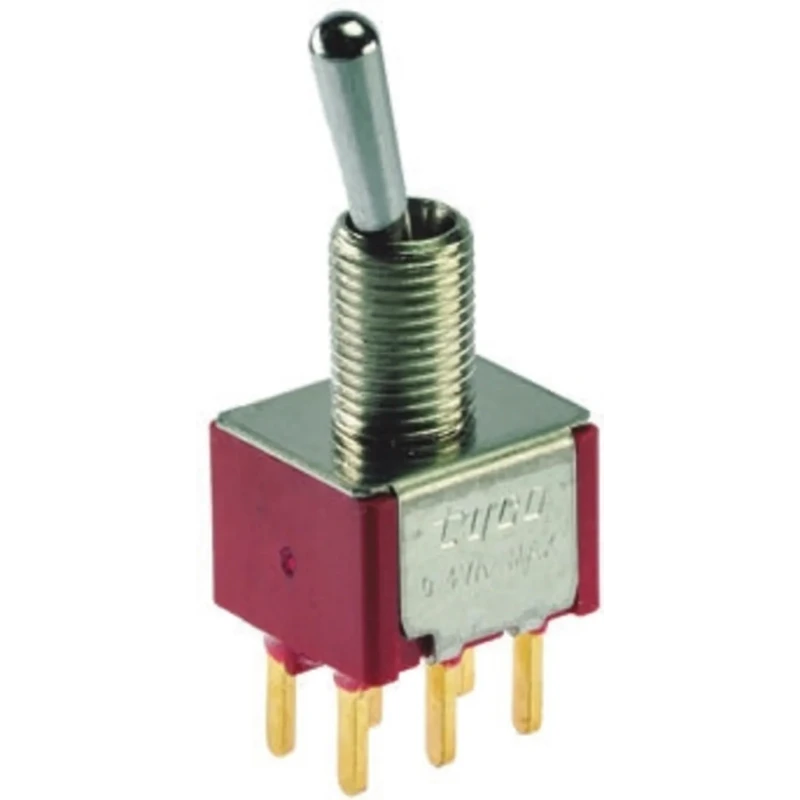

TE Connectivity Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 28V DC 20V AC 3-1825138-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 0.50in |
| IP Rating | IP67 |
| Width | 0.45in |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 20V ac |
| Actuator Material | Phenolic |
Key Features
- This toggle switch features a Double Pole Double Throw (DPDT) contact configuration.
- The On-On switch operation allows for alternate circuit connections.
- It is designed for PCB mounting with through-hole terminals for secure installation.
- Rated for contact voltages of 28V DC and 20V AC for versatile use.
- Constructed with phenolic actuator material ensuring durability at operating temperatures from -30°C to 85°C.
- Mechanical life of 6000 cycles attests to its reliability and longevity.
- Epoxy sealed terminals and stainless steel frame provide environmental protection with an IP67 rating.
- Compact size with actuator length of 10.41 mm and panel cutout size of 6.35 mm.
Product Description
TE Connectivity 3-1825138-6 Toggle Switch is a high-quality PCB mount switch with On-On DPDT functionality rated at 28V DC and 20V AC. It features a robust construction with a phenolic actuator and stainless-steel frame, making it suitable for demanding industrial and electrical automation applications.
This switch offers a mechanical life of 6000 cycles and is designed to withstand harsh environmental conditions with epoxy-sealed terminals and an IP67 ingress protection rating. Its through-hole terminal type allows for secure PCB installation and reliable electrical connectivity.
The actuator length is 10.41 mm with a panel cutout size of 6.35 mm, supporting compact PCB designs. Operating temperature range from -30°C to 85°C ensures stable performance in various environments.
Applications include factory automation, machinery, control panels, and other electrical switching needs in commercial and industrial contexts. RoHS compliance confirms the switch meets applicable environmental standards for safe use.
DPDT contact configuration supports multiple circuit operations. On-On switch operation enables alternate circuit connection. Phenolic actuator and epoxy sealed terminals enhance durability and protection. IP67 rating protects against dust and water ingress for industrial use.
Compact dimensions ideal for PCB mounting and tight installation spaces. Mechanical life of 6000 cycles ensures long operational reliability. Suitable for demanding industrial, automation and electrical systems. RoHS compliant for environmental safety.
Explore more Toggle Switches and related electrical components at EnvMart for your professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for alternate circuit connections.
It is rated for contact voltages of 28V DC and 20V AC, making it versatile for various applications.
The switch operates effectively within a temperature range of -30°C to 85°C.
This unit has a mechanical life rated for 6000 cycles, ensuring reliable performance over time.
It has an IP67 rating, providing protection against dust and water ingress, suitable for industrial environments.
This switch is designed for PCB mounting with through-hole terminals, ensuring secure installation.
The actuator length is 10.41 mm, and the panel cutout size required is 6.35 mm.
Yes, this model is RoHS compliant, meeting applicable environmental standards for safe use.
The actuator is made from phenolic material, and the frame is constructed from stainless steel for durability.
It is suitable for factory automation, machinery, control panels, and other electrical switching needs in commercial and industrial contexts.
The dimensions are approximately 0.50 inches in length and 0.45 inches in width.
It features through-hole terminals, which allow for secure connections on a PCB.
