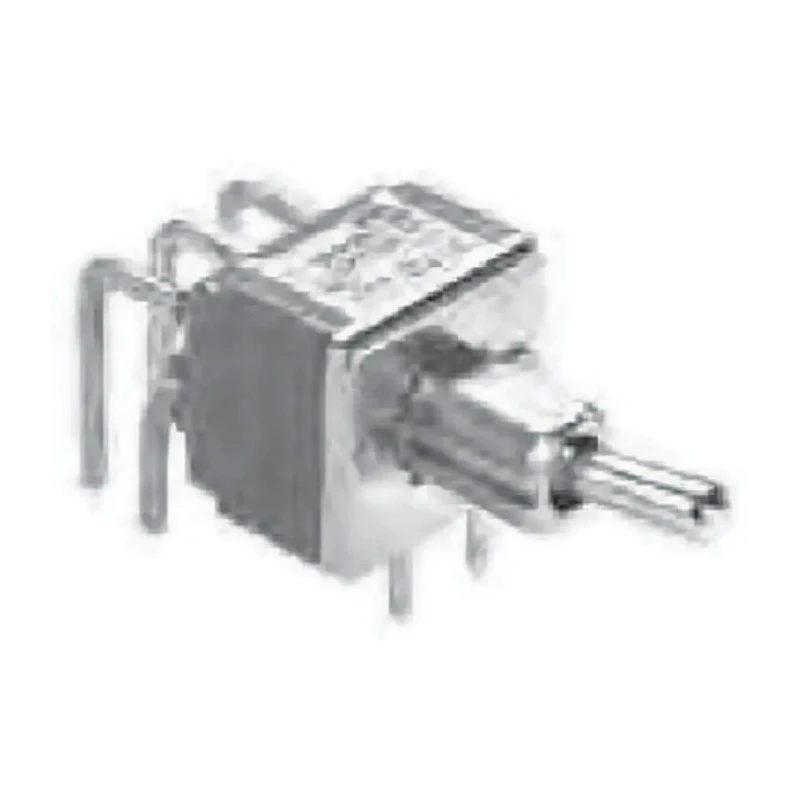

TE Connectivity DPDT On-Off-On Toggle Switch, PCB Mount, Through Hole Terminal, 28 V dc 20 V ac, Phenolic Actuator, 1825139-2

TE Connectivity 1825139-2 is a DPDT (Double Pole Double Throw) toggle switch featuring an On-Off-On configuration, ideal for various electrical and automation applications requiring reliable switching on printed circuit boards (PCBs). Designed with a phenolic actuator, the switch ensures robust mechanical operation and user tactile feedback.

This switch is mounted via through hole terminals and is epoxy sealed to guarantee protection against dust and moisture, certified to IP67 standards. Suitable for contact DC voltage up to 28 V dc and AC voltage up to 20 V ac, it supports a broad range of signal and control applications.

It operates reliably between -30°C and 85°C, making it suitable for industrial environments. The mechanical endurance rates at 6000 cycles, ensuring longevity in repeated switching tasks.

The compact size with a total length of 0.50 inches and actuator length of 6.86 mm facilitates integration into sophisticated electronic assemblies where space conservation is critical. The stainless steel frame combined with brass tin plated solder supports confirms high durability and ease of soldering.

The break-before-make contact timing minimizes risk of short circuits during switching. Additionally, it complies with RoHS standards, confirming it is free from hazardous substances.

This toggle switch finds application in industrial machinery control panels, automation systems, electrical signaling and testing devices, and other commercial electronic equipment requiring multi-contact switching capabilities.

The switch features a phenolic actuator material designed for mechanical reliability. Epoxy sealed construction with IP67 rating for environmental protection. Operates within a temperature range from -30°C to 85°C. Mechanical life rated at 6000 cycles for durability.

Compact 0.50 inch length and 6.86 mm actuator length. Break-before-make contact timing for safe switching. Robust stainless steel frame with brass tin plated solder support. RoHS compliant ensuring environmental safety. Explore the Electronics & Electricals category on EnvMart for a wide range of high-quality Toggle Switches and related components from trusted brands like TE Connectivity.
