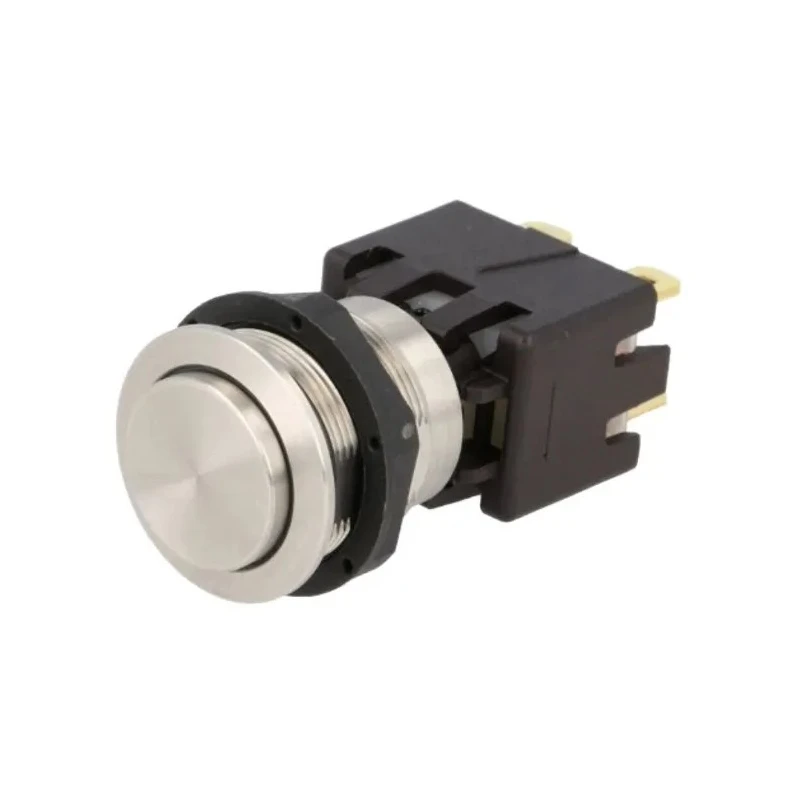

Schurter MSM LA 19 Series Push Button Switch, Latching, Panel Mount, 19 mm Cutout, DPDT, IP64, 125V AC/DC 1241.6821.1120000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 22mm |
| IP Rating | IP64 |
| Width | 22mm |
| Mount Type | Panel |
| Series | MSM LA 19 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Tab |
| Standards/Approvals | CE, RoHS |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 125V dc |
| Actuator Style | Round |
| Switch Contact Current | 12A |
| Contact AC Voltage | 125V ac |
| Legend | Lettering available (see Lettering section) |
Key Features
- Robust anti-vandal push button switch designed for harsh environments.
- Features latching switch operation for secure panel control.
- Suitable for 19 mm panel cutout, round actuator and natural actuator colour.
- DPDT contact configuration with tab terminals ensures reliable circuit switching.
- Rated for IP64 ingress protection and IK07 shock resistance.
- Supports operation at 125V AC or DC, with maximum contact current of 12A.
- Stainless steel housing and actuator, non-illuminated design.
- Operating force of 10N and actuator travel 4.5 mm, protrudes 3.7 mm when off.
Product Description
The Schurter MSM LA 19 Series Push Button Switch, model 1241.6821.1120000, is a highly robust latching switch engineered for demanding industrial and commercial environments. With a 19 mm cutout size and DPDT contact configuration, it offers reliable control within panel mount applications that require frequent switching and durable performance.
Its anti-vandal stainless steel housing ensures protection against harsh conditions, including impacts, moisture, and dust, supported by an IK07 shock resistance rating and IP64 ingress protection. The actuator is designed with a round, natural finish, offering an operating force of 10 Newtons and an actuator travel of 4.5 mm. When in the off state, the actuator protrudes 3.7 mm above the panel surface for clear tactile indication.
The push button is non-illuminated, with quick-connect tab terminals making installation straightforward. It operates at both 125V AC and 125V DC, supporting a maximum contact current of 12A. The switch is rated for a long service life, capable of 150,000 mechanical operations, making it ideal for applications requiring frequent activation.
The MSM LA 19 Series supports operation across a wide temperature range from -20°C to +85°C. The actuator style is round, and the mounting is panel type, compatible with natural actuator colour. The device is compliant with CE and RoHS standards for safety and reliability. It has a height and width of 22 mm each.
Industrial use cases include control panels for manufacturing machinery, automation systems, security access panels, vending machines, public kiosks, and environments where tamper-resistant switches are necessary. The optically visible switching status ensures clear feedback, and the rugged design guarantees longevity in heavy-duty applications.
Explore more Push Button Switches in the Schurter MSM LA series and other industrial switching solutions on EnvMart's Electronics & Electricals catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for reliable circuit switching in panel mount applications.
The maximum contact current rating for this switch is 12A, making it suitable for various electrical applications.
It operates at both 125V AC and 125V DC, providing versatility for different electrical systems.
The switch is rated IP64, indicating it is protected against dust and water splashes, suitable for harsh environments.
This model can operate within a temperature range of -20°C to +85°C, accommodating various environmental conditions.
The switch has a height and width of 22 mm each, fitting into a 19 mm panel cutout for installation.
It uses quick-connect tab terminals, which facilitate straightforward installation and connection.
The actuator style is round with an actuator travel of 4.5 mm, providing tactile feedback during operation.
This model has an IK07 shock resistance rating, ensuring it can withstand impacts in demanding applications.
Yes, it is compliant with CE and RoHS standards, ensuring safety and environmental compatibility.
When in the off state, the actuator protrudes 3.7 mm above the panel surface, providing clear tactile indication.
It is suitable for various applications including control panels for manufacturing machinery, automation systems, and security access panels.
