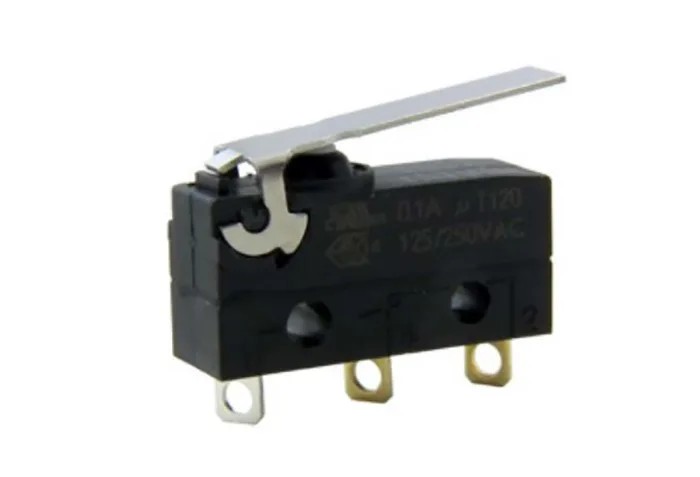

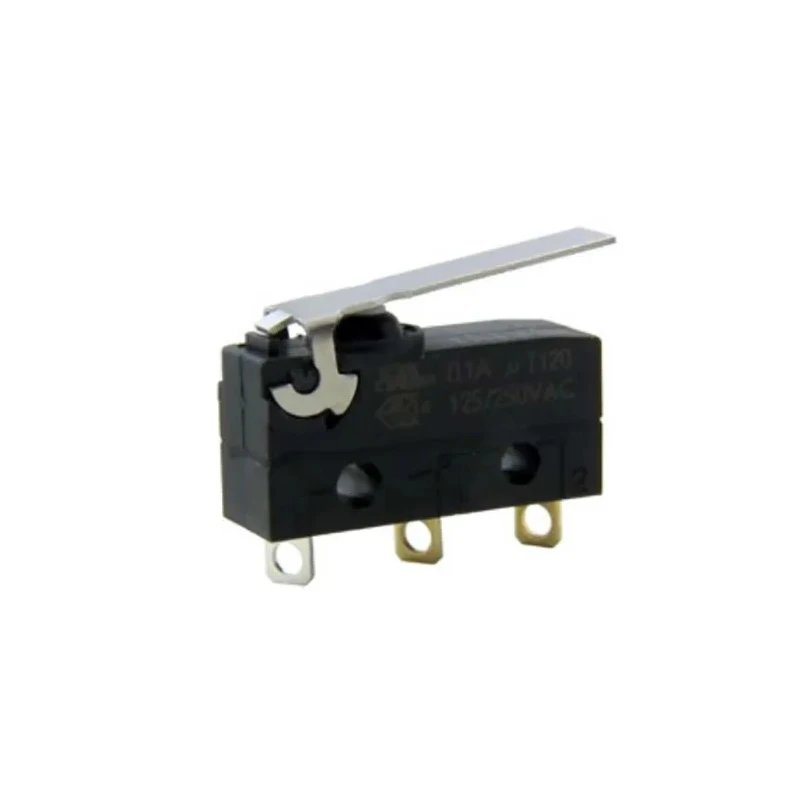

Honeywell Lever Micro Switch Cable Terminal 6A 250V AC SPDT IP67 ZW50F90CW1
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Honeywell |
| Length | 19.8mm |
| Model | ZW50F90CW1 |
| Depth | 9.25mm |
| IP Rating | IP67 |
| Width | 6.4mm |
| Housing Material | Polybutylene Terephthalate |
| Series | ZW |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Actuator Type | Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Cable |
| Standards/Approvals | ENEC, RoHS, cUL, UL, CQC |
| Switch Contact Current | 6A |
| Operating Force | 203g |
| Mechanical Life | 1000000min |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- Compact micro switch with lever actuator, ideal for industrial automation.
- Rated for 6A switch contact current and 250V AC operation.
- Cable terminal design ensures secure connectivity in confined installations.
- SPDT contact configuration provides flexible logic control between circuits.
- IP67-rated enclosure protects against dust and temporary water immersion.
- Operates from -40°C to 120°C for extreme temperature resilience.
- Made with polybutylene terephthalate housing for dimensional stability and chemical resistance.
- Mechanical life rated for 1,000,000 cycles, supporting extended service intervals.
Product Description
The Honeywell ZW50F90CW1 lever micro switch is a compact, high-performance device engineered for precise control and sensing tasks in industrial automation, machinery, and safety systems. Featuring a robust lever actuator and cable terminal, it provides single-pole changeover contact (SPDT) for reliable switching at 6A, 250V AC.
This micro switch stands out for its versatility and environmental resilience. The cable terminal ensures convenient wiring in tight or harsh environments, while the lever actuator delivers longer mechanical travel and easy interfacing with cams or linkages, making it suitable for limit and position sensing.
Its IP67 enclosure guards against dust and water, enabling use in applications exposed to challenging industrial conditions or outdoor installations. The housing is constructed from polybutylene terephthalate, offering chemical resistance and maintaining dimensional stability for accurate switching throughout its mechanical life of one million cycles.
The device operates reliably across extreme temperatures, from -40°C to 120°C, ensuring performance in both hot and cold environments. Flexible mounting and SPDT contact configuration allow integration in various control circuits, with approvals such as ENEC, RoHS, cUL, UL, and CQC supporting certified system installation.
Applications for the ZW micro switch span industrial production lines, enclosure door monitoring, and position sensing for mobile machines, as well as appliance safety interlocks and control inputs for equipment exposed to moisture or contaminants. Its compact subminiature design integrates seamlessly into modern automation panels and machinery.
Honeywell’s ZW50F90CW1 lever micro switch empowers engineers to design systems with enhanced durability, repeatability, and operational safety. Category: Micro Switches & Detector Switches - explore the Honeywell range for automation and industrial solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switch contact current for this model is 6A.
This micro switch is rated for 250V AC operation.
The micro switch has an IP67 rating, which means it is protected against dust and temporary water immersion.
The dimensions of this model are 19.8mm in length, 6.4mm in width, and 9.25mm in depth.
It operates reliably in temperatures ranging from -40°C to 120°C.
This micro switch features a lever actuator type, which allows for longer mechanical travel.
The housing is made from polybutylene terephthalate, providing chemical resistance and dimensional stability.
The mechanical life of this model is rated for 1,000,000 cycles.
This model has a single-pole double-throw (SPDT) contact configuration.
It complies with standards including ENEC, RoHS, cUL, UL, and CQC.
This unit features a cable terminal design, which ensures secure connectivity in confined installations.
It is commonly used in industrial production lines, enclosure door monitoring, position sensing for mobile machines, and appliance safety interlocks.
