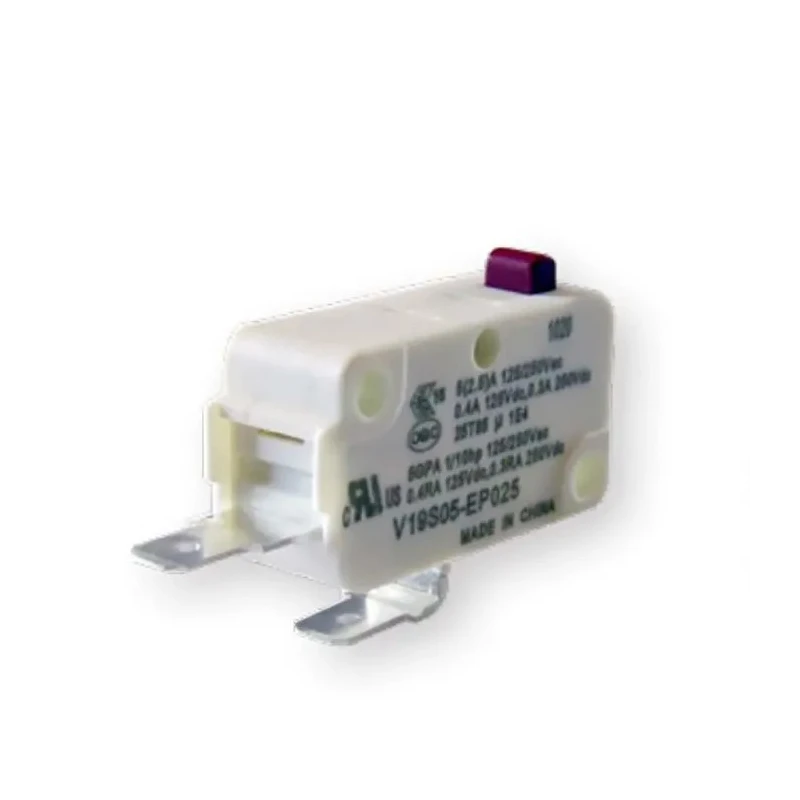

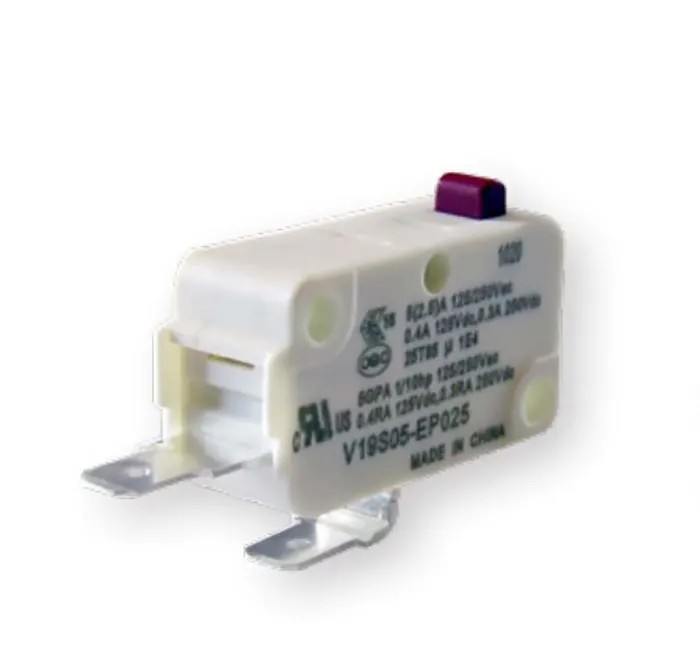

Honeywell Pin Plunger Micro Switch, Quick Connect Terminal, 5A, 250 V AC/DC, SPDT, IP40 V19S05-CZ050B01

Honeywell V19S05-CZ050B01 Pin Plunger Micro Switch offers a compact and reliable solution for single-pole double-throw (SPDT) switching, rated at 5 amps with compatibility for both 250 V AC and 250 V DC supply voltages.

The pin plunger actuator requires only 0.5 N operating force, enabling precise mechanical detection in control and detection assemblies. Its quick connect terminals allow for rapid, tool-free wiring, suitable for fast installation and maintenance.

The housing is engineered from thermoplastic polybutylene terephthalate (PBT), delivering stable electrical insulation while the unsealed design with IP40 ingress protection fits environments with minimal dust or moisture exposure.

Compactly sized at 27.8 mm in length, 10.3 mm in width, and 15.9 mm in depth, this micro switch integrates well within constrained industrial and electronic control panel spaces.

Operating temperature range extends from -25° C to +85° C to sustain performance in diverse environmental conditions. The device carries a certified mechanical life of 1,000,000 cycles, underscoring its durability for frequent actuation tasks.

Approvals including CSA, CQC, cUL, ENEC, RoHS, and UL certify its suitability for regulated industrial applications and equipment.

These micro switches are specifically designed for position sensing on automated machinery, limit switching of electromechanical actuators, input switching in control panels, and end-of-travel detection in small motion systems.

Honeywell’s V19 series pin plunger micro switch is an essential component in industrial, manufacturing, HVAC, automation, and electronic control applications requiring reliable and compact limit switches.

The pin plunger actuator requires low operating force of 0.5 N for precise actuation. Quick connect terminals enable fast and secure wiring connections. Thermoplastic PBT housing offers robust electrical insulation. Unsealed IP40 rating suitable for environments with limited exposure.

Compact form factor measuring 27.8 x 10.3 x 15.9 mm. Wide operating temperature range from -25°C to 85°C. Durable mechanical life of 1,000,000 cycles supports repeated use. Certified to multiple industry safety standards including RoHS and UL.

Suitable for automated machinery, control panels, and limit detection. Explore more Micro Switches and industrial automation components at EnvMart for reliable and certified products.
