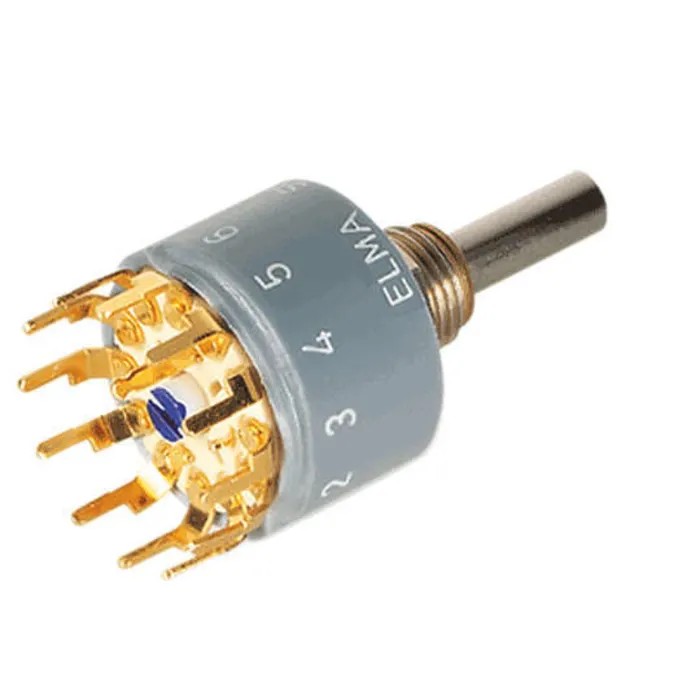

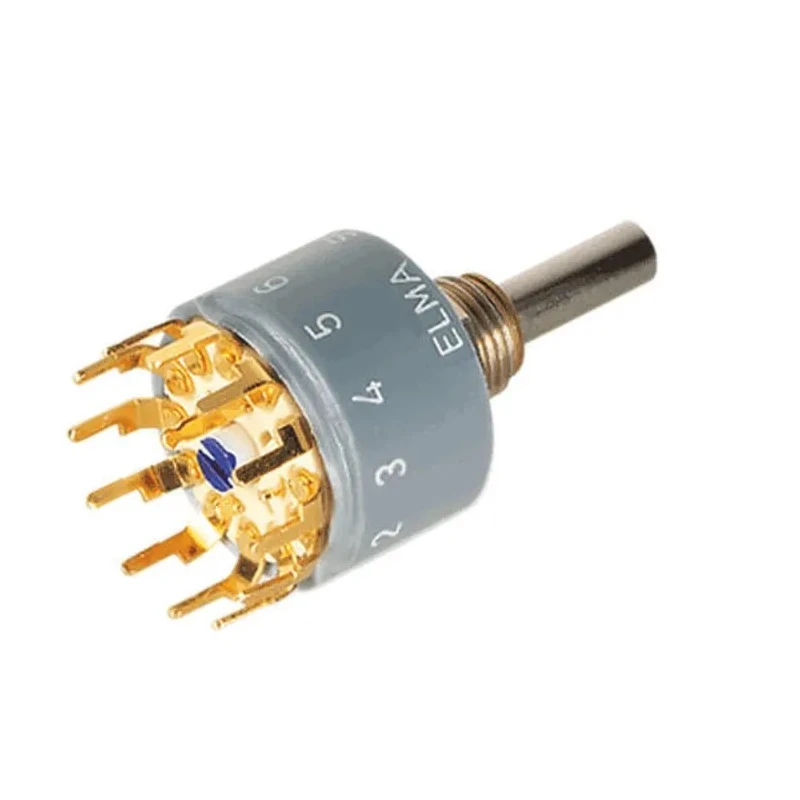

Elma Type 01, 6 Position 2A Rotary Selector Switch, Nickel Silver Housing, Panel Mount 01-1263
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 18mm |
| Brand | Elma |
| Height | 18mm |
| Model | 01-1263 |
| Depth | 18.3mm |
| IP Rating | IP60 |
| Width | 18mm |
| Mount Type | Panel |
| Housing Material | Nickel Silver |
| Series | Type 01 |
| Maximum Operating Temperature | 85°C |
| Number of Positions | 6 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Maximum dc Voltage | 42V dc |
| Number of Poles | 2 |
| Standards/Approvals | RoHS, ELV, UL |
| Actuator Colour | Silver |
| Switch Contact Current | 2A |
| Mechanical Life | 25000Operations |
| Angle of Throw | 30 ° |
Key Features
- Constructed with robust nickel silver housing for durability and corrosion resistance.
- Panel mount type with solder terminal connections ensures secure installation.
- Operates over a wide temperature range from -40°C to 85°C for versatile applications.
- Offers mechanical life of 25,000 operations for long-term reliability.
- Rated for maximum DC voltage of 42V with IP60 environmental protection.
- Features 30° angle of throw with silver actuator color for precise control.
- Compliance with RoHS, ELV, and UL standards meets industrial requirements.
Product Description
The Elma 01-1263 Type 01 rotary selector switch is engineered to provide precise multi-position control with six distinct positions and two poles designed for panel mounting applications. Featuring a solder terminal for robust electrical connections, this switch supports a contact current of 2A and a maximum DC voltage rating of 42V.
Its nickel silver housing material ensures excellent resistance to corrosion and mechanical wear, making it suitable for industrial environments requiring durability. The device operates reliably across a temperature range of -40°C to 85°C and has a mechanical life expectancy of approximately 25,000 cycles, ensuring long-lasting performance.
With an IP60 ingress protection rating, the switch withstands dust ingress while offering secure control via a silver-colored actuator and a 30-degree angle of throw. The dimensions of 18mm diameter, height and width, and 18.3mm depth make it a compact solution for control panels.
This Rotary Selector Switch complies with key standards such as RoHS, ELV, and UL, confirming its suitability for industrial controls, avionics, medical devices, and high-end audio equipment. The design combines precision, durability, and safety for demanding automation tasks.
Constructed with robust nickel silver housing for durability and corrosion resistance. Panel mount type with solder terminal connections ensures secure installation. Operates over a wide temperature range from -40°C to 85°C for versatile applications.
Offers mechanical life of 25,000 operations for long-term reliability. Rated for maximum DC voltage of 42V with IP60 environmental protection. Features 30° angle of throw with silver actuator color for precise control. Compliance with RoHS, ELV, and UL standards meets industrial requirements.
Explore the range of rotary switches by Elma on EnvMart for reliable automation and control solutions tailored to industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC voltage rating for this model is 42V.
It has a mechanical life expectancy of approximately 25,000 operations.
The dimensions are 18mm in diameter, 18mm in height, and 18.3mm in depth.
This unit operates over a wide temperature range from -40°C to 85°C.
It features six distinct positions for versatile control.
This rotary selector switch is designed for panel mounting.
It has an IP60 ingress protection rating, which means it is protected against dust ingress.
The housing is constructed from nickel silver, providing durability and corrosion resistance.
It features solder terminals for secure electrical connections.
It complies with RoHS, ELV, and UL standards, confirming its suitability for various applications.
The actuator has a 30-degree angle of throw for precise control.
The switch is rated for a contact current of 2A.
