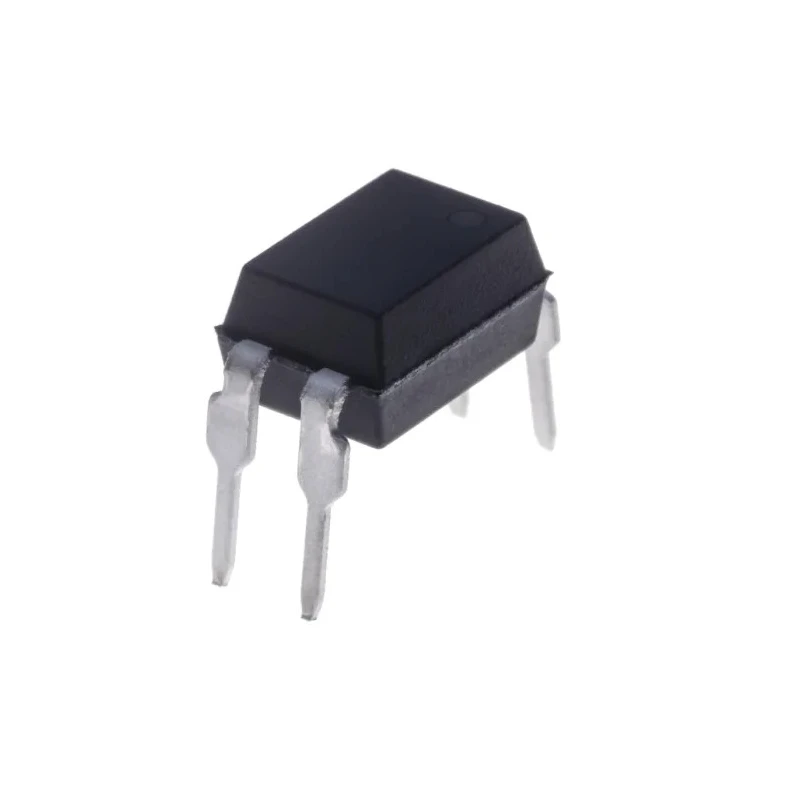

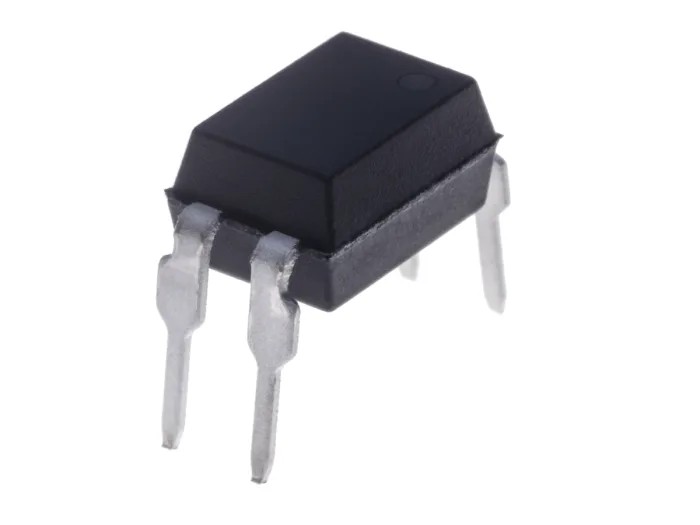

Isocom AC Input Optocoupler, Through Hole, 4-Pin DIP TLP620
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Isocom |
| Model | TLP620 |
| Mount Type | Through Hole |
| Series | TLP620 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -30°C |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.3V |
| Number of Pins | 4 |
| Input Current Type | AC |
| Typical Rise Time | 4μs |
| Maximum Current Transfer Ratio | 6% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 0.5% |
Key Features
- This optocoupler features AC input current type for efficient signal transmission.
- It offers a high isolation voltage of 5300Vrms for safe electrical separation.
- The package is a compact dual in-line (DIP) 4-pin design suitable for through-hole mounting.
- Operates between minimum temperature of -30°C and maximum temperature of 100°C for wide environmental tolerance.
- Features typical rise and fall times of 4μs and 3μs respectively for fast response.
- The device incorporates infrared LED emitters connected in inverse parallel for AC input compatibility.
- Current transfer ratio ranges from 0.5% minimum to 6% maximum for controlled signal gain.
- Complies with UL standards ensuring quality and safety compliance.
Product Description
Isocom TLP620 AC Input Optocoupler is designed for precise electrical isolation and signal transmission in electronic circuits. It is packaged in a space-efficient 4-pin dual in-line plastic (DIP) housing suitable for through-hole PCB mounting.
This optocoupler includes two infrared light emitting diodes connected in inverse parallel, enabling AC input current type functionality. The paired NPN silicon phototransistors provide reliable electrical isolation and signal transfer between circuits with different grounds or voltage potentials.
The TLP620 supports a maximum forward voltage of 1.3V and operates effectively within a temperature range of -30°C to 100°C, accommodating diverse industrial and commercial environments. Its high isolation voltage of 5300Vrms (7.5kV peak) ensures robust protection against high voltage surges.
Typical rise and fall times of 4μs and 3μs respectively allow for rapid switching performance, suitable for industrial systems controllers, telephone exchanges, and signal transmission applications between systems with varying potentials and impedances.
The device’s current transfer ratio varies between 0.5% minimum and 6% maximum, enabling flexible circuit design tailored to application needs. It complies with UL certification standards, ensuring quality and safety assurance for commercial and industrial use cases.
Manufactured in Thailand, this optocoupler combines precise performance with proven reliability. Ideal use cases include industrial automation, communication equipment, and electronics systems requiring secure optoelectronic isolation.
This optocoupler features AC input current type for efficient signal transmission. High isolation voltage of 5300Vrms ensures electrical safety. Compact 4-pin DIP package designed for through-hole mounting. Wide operating temperature range from -30°C to 100°C supports harsh environments.
Fast switching with typical rise and fall times of 4μs and 3μs respectively. Current transfer ratio ranges from 0.5% to 6% for versatile circuit performance. UL certification validates quality and reliability. Manufactured in Thailand with strict quality control.
Explore more Optocouplers and electronic components at EnvMart for high-quality industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TLP620 optocoupler has a high isolation voltage of 5300Vrms, ensuring robust protection against high voltage surges.
This model operates effectively within a temperature range of -30°C to 100°C, accommodating diverse industrial and commercial environments.
The current transfer ratio for the TLP620 ranges from a minimum of 0.5% to a maximum of 6%, allowing for flexible circuit design.
The TLP620 is designed for through-hole mounting, packaged in a compact 4-pin dual in-line (DIP) configuration.
This optocoupler features typical rise and fall times of 4μs and 3μs respectively, allowing for rapid switching performance.
The maximum forward voltage for the TLP620 is 1.3V, which is essential for its operation in AC input applications.
The TLP620 complies with UL certification standards, ensuring quality and safety assurance for commercial and industrial use cases.
This model has one channel, making it suitable for various signal transmission applications.
The TLP620 is designed for AC input current type functionality, which enhances its signal transmission capabilities.
The TLP620 is manufactured in Thailand, adhering to strict quality control measures.
The TLP620 is ideal for applications in industrial automation, communication equipment, and electronics systems requiring secure optoelectronic isolation.
The TLP620 comes in a DIP package type, which is compact and suitable for through-hole PCB mounting.
