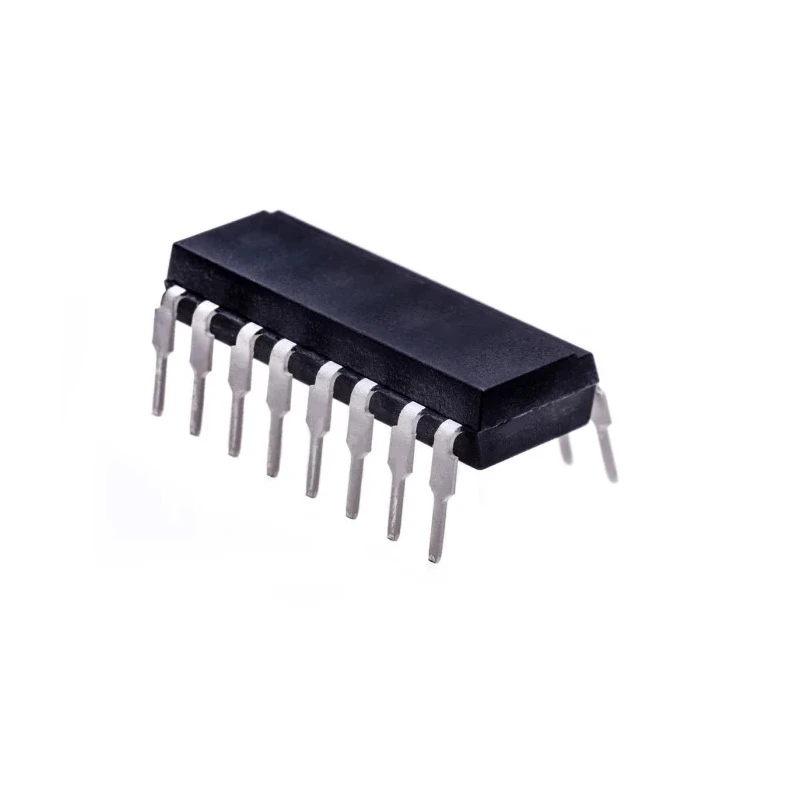

Isocom Optocoupler Through Hole 16-Pin DIP TLP621-4GBG

Isocom TLP621-4GBG is a precision optocoupler composed of an infrared light emitting diode and an NPN silicon phototransistor within a space-efficient Dual In Line Plastic (DIP) package. This through-hole 16-pin optocoupler is designed for reliable signal isolation and transmission between circuits operating at different potentials and impedances.

The device supports a maximum forward voltage of 1.3 volts and a maximum input current of 50 milliamps at the LED. It features typical rise and fall times of 2μs and 3μs respectively, allowing rapid switching suited for numerous electronic applications.

With a high isolation voltage rating of 5300 Vrms, the TLP621-4GBG ensures robust protection against high voltages, making it ideal for industrial, commercial, and instrumentation systems requiring electrical isolation.

Operating temperatures range widely from -30°C to 100°C, enabling dependable performance in diverse environments. The current transfer ratio ranges from a minimum of 100% to a maximum of 600%, providing versatile signal amplification capabilities.

This optocoupler complies with international safety standards including RoHS, VDE, and UL, confirming its manufacturing quality and environmental compliance.

The product is packaged in tube reels, making it convenient for automated assembly processes. Its reliable through-hole DIP package simplifies mounting on printed circuit boards for ease of integration in electronics systems.

Common use cases include industrial automation, computer interface isolation, measuring instruments, and signal transmission applications where electrical separation is critical. Isocom's TLP621 series represents high-quality optocouplers designed for performance and reliability in demanding electronic circuit isolation requirements.

Explore more Optocouplers and related components in EnvMart’s Electronics Components category for advanced electronics design and development. Through hole mount design suitable for PCB integration. Dual in-line package with 16 pins for reliable connectivity.

Typical rise and fall times are 2μs and 3μs respectively ensuring fast response. Maximum forward voltage of 1.3V across input LED. Maximum input current rating of 50mA for LED. High isolation voltage of 5300Vrms provides electrical safety.

Wide operating temperature range from -30°C to 100°C. Current transfer ratio ranges between 100% minimum and 600% maximum. Complies with RoHS, VDE and UL standards for quality and safety. Package type is DIP available in tube reel packaging.
