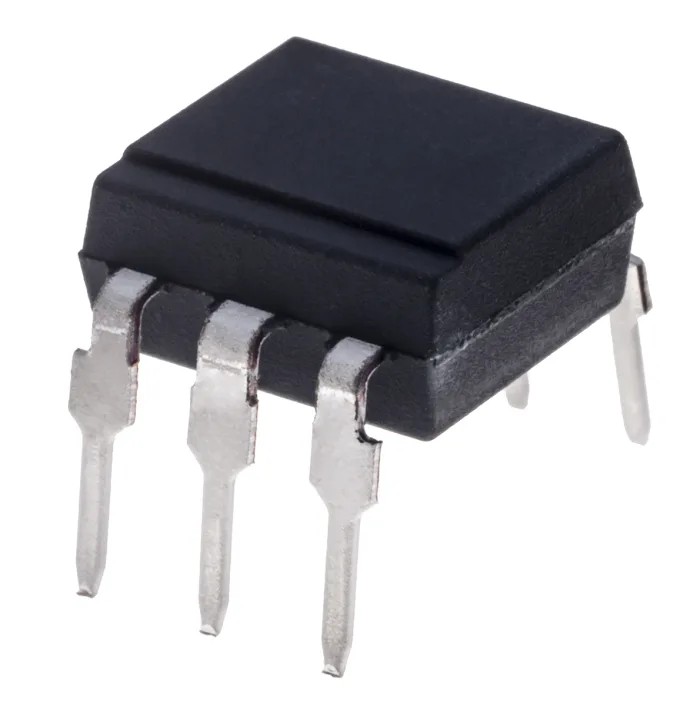

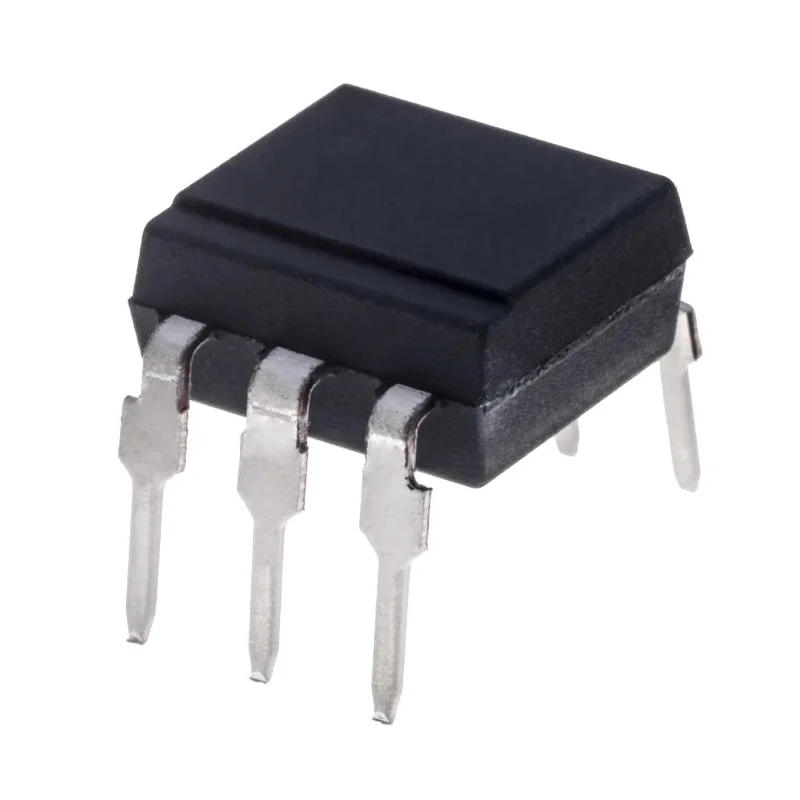

Isocom AC Input Optocoupler Through Hole 6-Pin DIP MOC3061

The Isocom MOC3061 is an AC input optocoupler packaged in a compact 6-pin DIP through-hole mount suitable for integration into electronic circuits requiring galvanic isolation. The device consists of a Gallium Arsenide infrared LED paired with a monolithic silicon detector designed to perform as a zero crossing bilateral triac, offering reliable switching capabilities. This configuration ensures minimal noise generation and efficient control of AC loads.

Its photo-triac output can withstand isolation voltages up to 7500V and a peak blocking voltage of 600V, enhancing safety in industrial, automation, and electronic power control systems. With a maximum input current rating of 50mA AC at a forward voltage of 1.4V, this optocoupler balances performance and low power dissipation.

Designed to operate in harsh environments, the device supports operating temperatures from -40°C to 100°C, making it adaptable to a wide range of industrial and commercial applications. It also meets stringent safety and reliability standards including VDE 0884, UL File No. E91231, and CECC 00802, ensuring compliance with global regulatory requirements.

The MOC3061 series is widely used in automation controllers, HVAC systems, power supplies, lighting controls, and other equipment requiring effective isolation and triac switching. The low-cost dual-in-line package facilitates easy mounting and soldering onto PCBs.

Gallium Arsenide infrared emitting diode ensures stable input signal emission. Monolithic silicon detector performs zero crossing and triac switching functions efficiently. Photo-triac output has 7500V isolation voltage for electrical safety.

Maximum input current of 50mA AC at 1.4V forward voltage supports low power consumption. Temperature range from -40°C to 100°C provides robustness in diverse environments. Complies with international safety and quality standards VDE, UL, and CECC.

Available in 6-pin DIP through-hole mounting for ease of PCB integration. Ideal for industrial, laboratory, commercial, and HVAC applications requiring electrical isolation. Explore the full range of Optocouplers and optoelectronic components at EnvMart for advanced electronic design and industrial control solutions.
