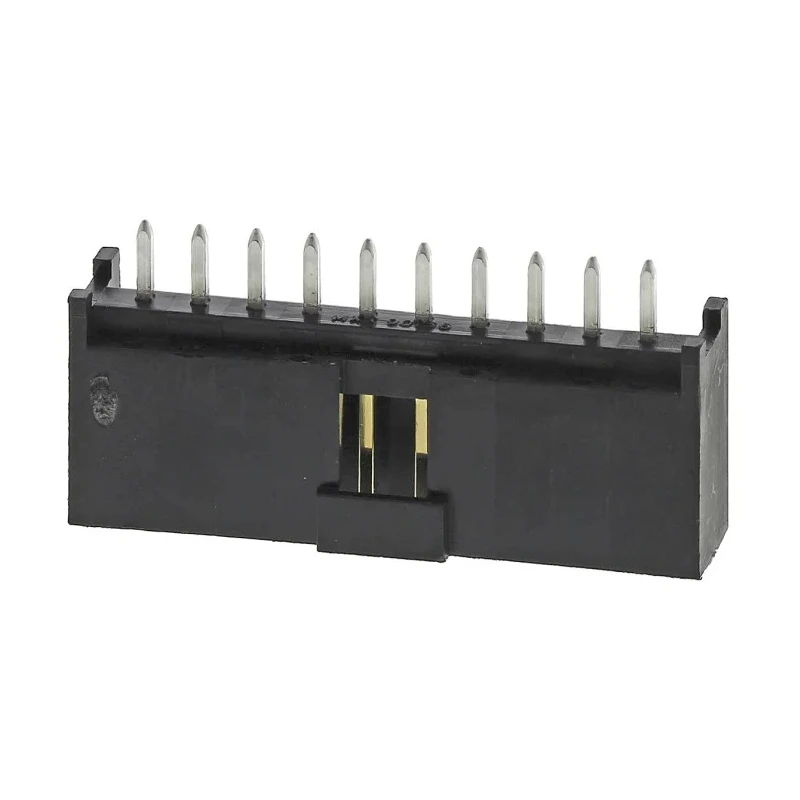

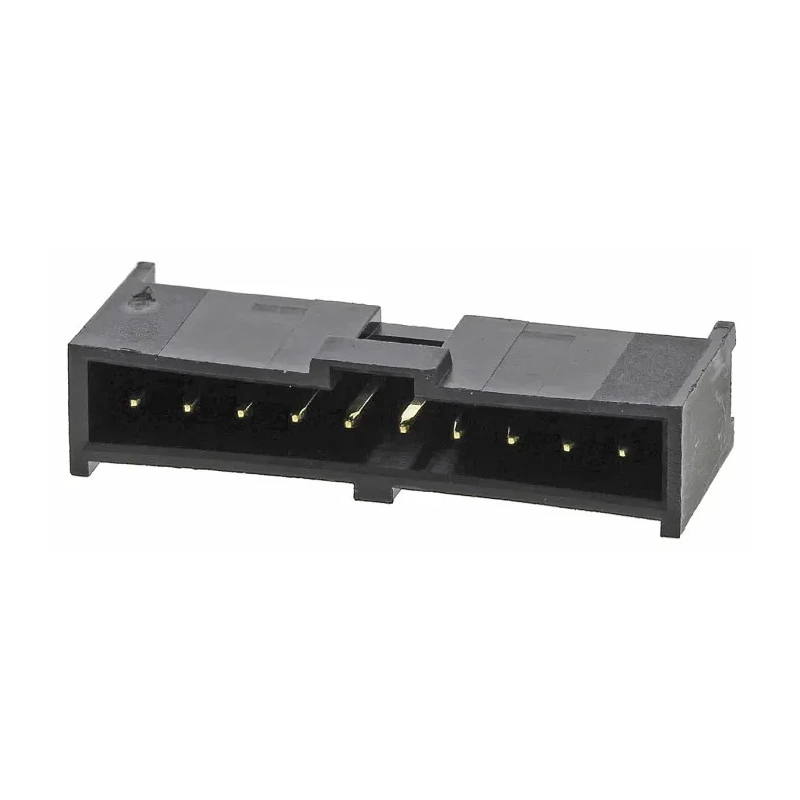

Molex C-Grid III Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 90136-1210

Free Delivery in India | Lowest Global Shipping Charges

Molex C-Grid III Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 90136-1210

Name: Molex C-Grid III Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 90136-1210
Brand: Molex
SKU: 169742
Price: 3.43 USD
Availability: InStock



Category PCB Connector Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Straight
Current	3A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Brass
Series	C-Grid III
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm
Mating Pin Length	6.75mm

Key Features

Part of the C-Grid III series with a 2.54 mm row pitch.
Compatible with wire-to-board connector systems.
Brass contact material plated with gold for reliable conductivity.
Rated for 3 A current with 350 V voltage capability.
Designed for through-hole mounting with solder termination type.
Operates in temperatures from -55°C to 125°C.
Male contact gender with a tail pin length of 2.9 mm and mating pin length of 6.75 mm.
Shrouded for protection and prevents misalignment during connection.

Product Description

Molex 90136-1210 is a high-quality PCB header from the C-Grid III series designed for reliable wire-to-board connections. Featuring 10 gold-plated brass contacts arranged in a single row with a 2.54 mm pitch, this straight, shrouded header ensures secure mating and excellent electrical performance.

Constructed with a durable polyester housing, the connector supports a current rating of 3 A and withstands voltages up to 350 V. Its through-hole mount type and solder termination provide strong mechanical stability and ease of assembly into printed circuit boards.

The product is rated for operation across a wide temperature range from -55°C to 125°C, making it suitable for a variety of industrial, commercial, and manufacturing applications requiring dependable PCB connections under varying environmental conditions.

Additional features include a tail pin length of 2.9 mm and a mating pin length of 6.75 mm, designed to fit locking housings and improve production assembly efficiency. The shrouded design prevents misalignment and enhances connector longevity.

This Molex C-Grid III Series PCB header complies with DIN 41651 and HE13/14 standards, ensuring compatibility and quality. Part of the C-Grid III series, ensuring consistent quality and compatibility. Gold-plated brass contacts provide corrosion resistance and superior conductivity.

Through-hole mounting offers mechanical robustness. Wide temperature operating range suits harsh environments. Shrouded design reduces risk of damage and misalignment during assembly. Explore Molex connectors and related components on EnvMart for a broad range of reliable electronic assembly solutions tailored to your industrial needs.

Explore more products in our PCB Connector category.
