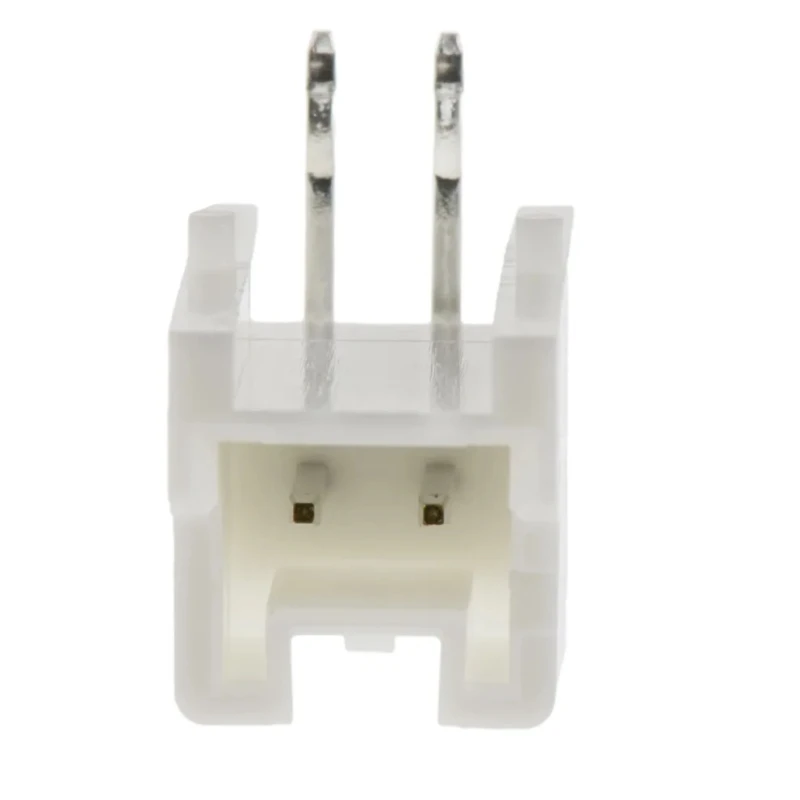

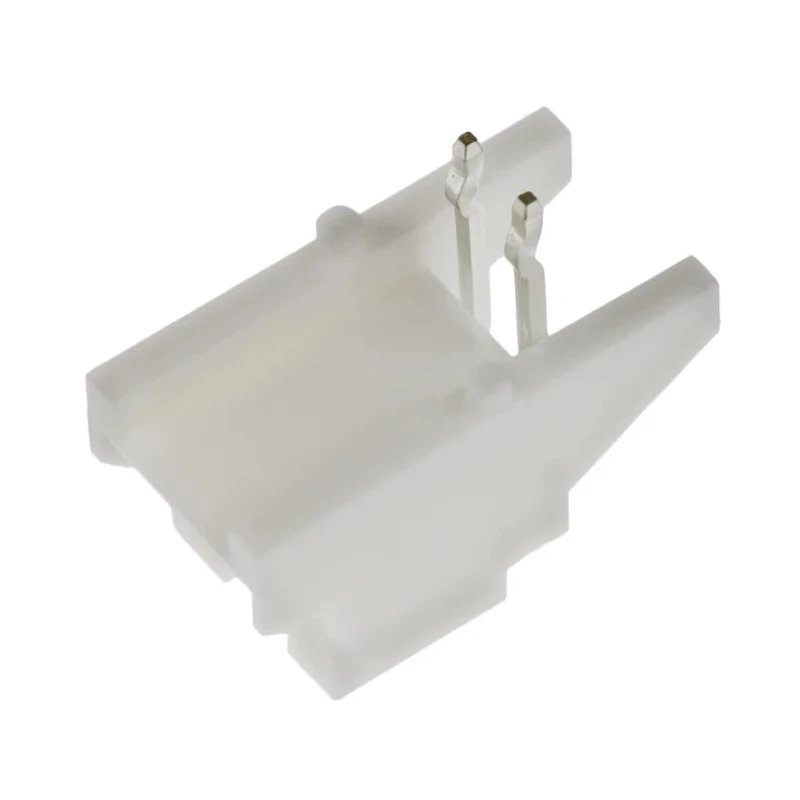

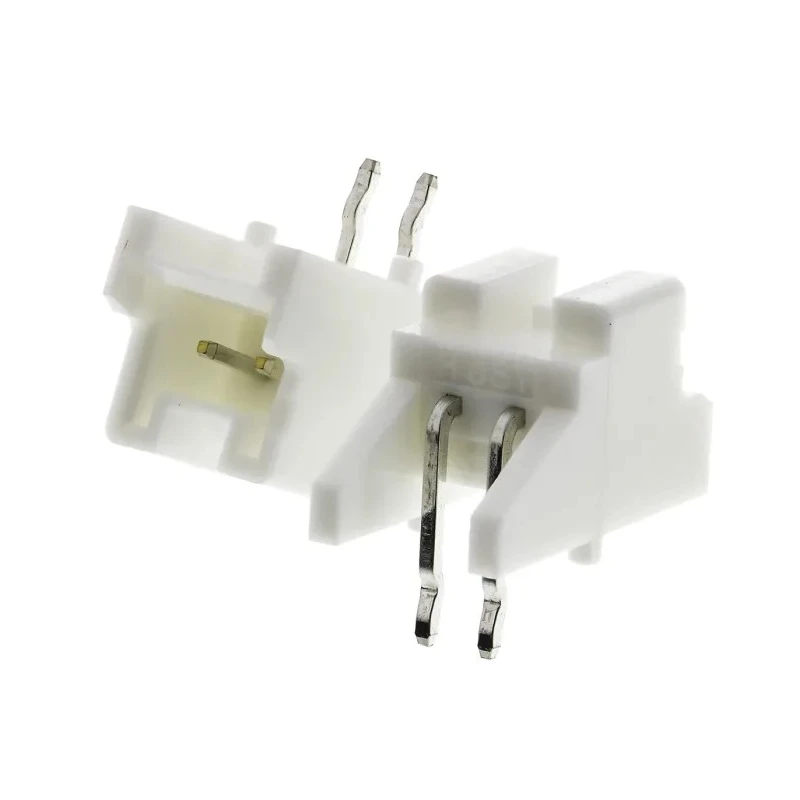

JST PA Series Right Angle Through Hole PCB Header 2 Contacts 2 mm Pitch 1 Row Shrouded S02B-PASK-2 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Right Angle Through Hole PCB Header 2 Contacts 2 mm Pitch 1 Row Shrouded S02B-PASK-2 (LF) (SN)



Category PCB Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	JST
Orientation	Right Angle
Current	3A
Model	S02B-PASK-2 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

This PCB header features a shrouded design for enhanced safety during use.
It has a right angle orientation suitable for side entry applications.
Constructed with copper alloy contacts plated with tin for reliable conductivity.
Supports a maximum operating voltage of 250V and a current rating of 3A.
The header includes a thumb depress locking mechanism to prevent accidental disconnections.
Compatible with solder termination and through-hole mount type.
Operates reliably between -25°C and 85°C temperature range.
Pin length is 3 mm with one row of contacts.

Product Description

JST S02B-PASK-2 (LF) (SN) Right Angle Through Hole PCB Header is a precision-engineered connector designed for reliable wire-to-board interfacing on a 2.0 mm pitch. This shrouded header features 2 male contacts arranged in a single row with a right angle orientation, facilitating secure side entry connections.

The connector system is built with copper alloy contacts plated in tin, offering good electrical conductivity and corrosion resistance. Its through-hole mounting style ensures stable mechanical and electrical connection when soldered onto a PCB.

This header accommodates a current rating of 3A and withstands voltages up to 250V. It operates efficiently within an ambient temperature range of -25°C to 85°C, suitable for various industrial electronic applications. The inclusion of a thumb depress locking mechanism enhances the connection security by preventing accidental disconnection during handling or vibration.

This product is ideal for industrial electronics, manufacturing equipment, telecommunications, automotive interfaces, and other commercial electronic assemblies where robust and vibration-resistant PCB connections are needed.

This PCB header features a shrouded design for enhanced safety during use. It has a right angle orientation suitable for side entry applications. Constructed with copper alloy contacts plated with tin for reliable conductivity.

Supports a maximum operating voltage of 250V and a current rating of 3A. The header includes a thumb depress locking mechanism to prevent accidental disconnections. Compatible with solder termination and through-hole mount type.

Operates reliably between -25°C and 85°C temperature range. Pin length is 3 mm with one row of contacts. Manufactured in Japan ensuring high quality standards. Explore the full range of JST PCB headers and related connectors on EnvMart for your industrial and electronics component needs.
