JST PHD Series Straight Through Hole PCB Header 12 Contacts 2 mm Pitch 2 Row Shrouded B12B-PHDSS (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PHD Series Straight Through Hole PCB Header 12 Contacts 2 mm Pitch 2 Row Shrouded B12B-PHDSS (LF)(SN)



Category PCB Connector Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B12B-PHDSS (LF)(SN)
Mount Type	Through Hole
Housing Material	Glass Filled Nylon
Contact Material	Copper Alloy
Series	PHD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3mm
Mating Pin Length	2.9mm

Key Features

Compact 2.0 mm pitch double-row configuration supports high-density PCB layouts.
Shrouded housing prevents incorrect mating and protects against flux and contaminants.
Housing made of glass filled nylon ensures durability and electrical insulation.
Copper alloy contacts plated with tin provide reliable conductivity and corrosion resistance.
Rated for current up to 3 Amps and voltage up to 250 Volts.
Through-hole mount type allows secure soldering to PCBs.
Straight orientation with male contact gender and tails 3 mm long for easy PCB insertion.
Operating temperature range from -25°C to 85°C suitable for varied environments.

Product Description

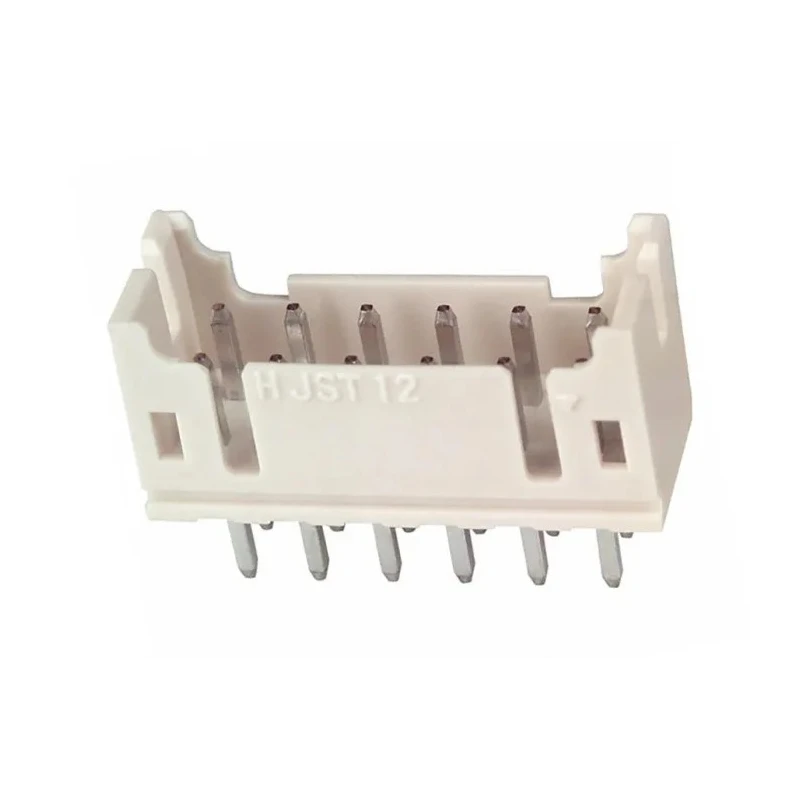

JST B12B-PHDSS (LF)(SN) is a straight through hole PCB header connector from the PHD Series, featuring 12 contacts arranged in 2 rows with a 2 mm pitch. This shrouded connector provides secure wire-to-board connections designed for high-density and low-profile electronic applications.

The housing is constructed from glass filled nylon offering robust insulation and mechanical strength. The copper alloy contacts are plated with tin to ensure consistent conductivity and protection against corrosion during soldering and operation. Its male contact gender and tail pin length of 3 mm are optimized for through-hole PCB mounting.

This connector supports a current rating of 3 Amperes and voltage up to 250 Volts, making it suitable for various electronic and industrial applications. It operates reliably across a temperature range of -25°C to 85°C. The shrouded design prevents mis-mating and intrusion of flux or contamination to guarantee long-term, reliable connectivity.

Its low profile, with just 8.8 mm height after mating, fits compact assembly requirements commonly needed in communications, industrial equipment, and consumer electronics. Compact double-row 2.0 mm pitch configuration for high-density wiring.

Shrouded housing reduces risk of incorrect mating and contamination. Durable glass filled nylon housing for insulation and mechanical stability. Tin-plated copper alloy contacts ensure excellent electrical performance. Rated for 3A current and 250V voltage applications.

Through-hole straight orientation with 3 mm tail pin length for secure solder connection. Temperature range -25°C to 85°C for varied operating environments. Low profile height of 8.8 mm after mating supports compact PCB designs.

This product is manufactured in Malaysia and conforms to high-quality standards, ideal for industrial, manufacturing, and electronics assembly environments. Discover more PCB Connectors and electronic components at EnvMart.
