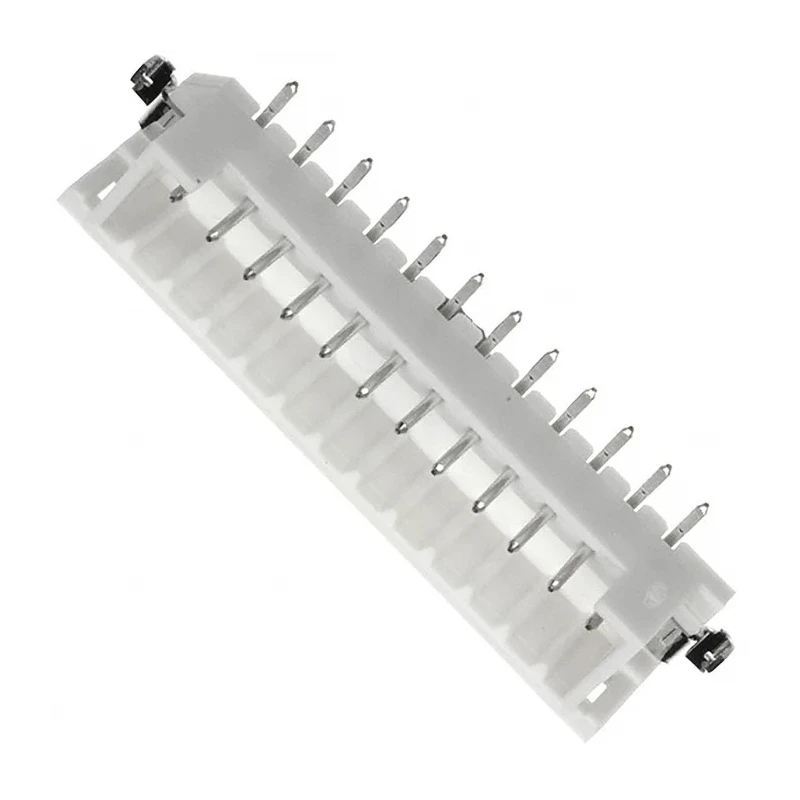

Hirose DF3 Series Straight Surface PCB Header, 12 Contacts, 2 mm Pitch, 1 Row, Shrouded DF3EA-12P-2V(21)

Hirose DF3EA-12P-2V(21) PCB Header is a high-quality 2.00 mm pitch, single-row, shrouded surface mount connector designed for reliable electronic component connection on printed circuit boards. It features 12 brass contacts plated with tin enclosed in a polyamide housing with a low profile for efficient space usage on PCBs.

This series includes a friction locking mechanism that ensures a secure and stable connection with mating DF3 sockets, making it ideal for connections requiring durability in dynamic environments. The connector includes PCB mounting bosses which help in accurate positioning during the soldering process for improved assembly quality.

Reinforced metal fittings on the sides enhance attachment security and prevent solder joint peeling, extending the lifespan of the connection under mechanical stress.

The Hirose DF3EA-12P-2V(21) is rated for up to 3 amperes current and can withstand voltages up to 250 volts, suitable for a wide range of electronics applications. Its operating temperature range spans from -55°C to 105°C, enabling use in harsh and variable environments.

Applications for this connector are typical in business equipment such as copy machines and printers where compact, secure, and reliable board-to-board and wire-to-board connections are crucial.

Low profile surface mount design for compact PCB integration. Secure friction locking mechanism ensures reliable connections. PCB mounting bosses improve soldering accuracy. Reinforced metal fittings prevent peeling at solder joints.

Brass contacts with tin plating guarantee durability. Polyamide housing ensures insulation and mechanical stability. Wide operating temperature range from -55°C to 105°C. Supports 3A current and 250V voltage ratings. Ideal for applications in business equipment and office machinery.

Manufactured in Japan, ensuring high quality and reliability. Explore the extensive range of PCB Connectors at EnvMart for all your electronic component needs.
