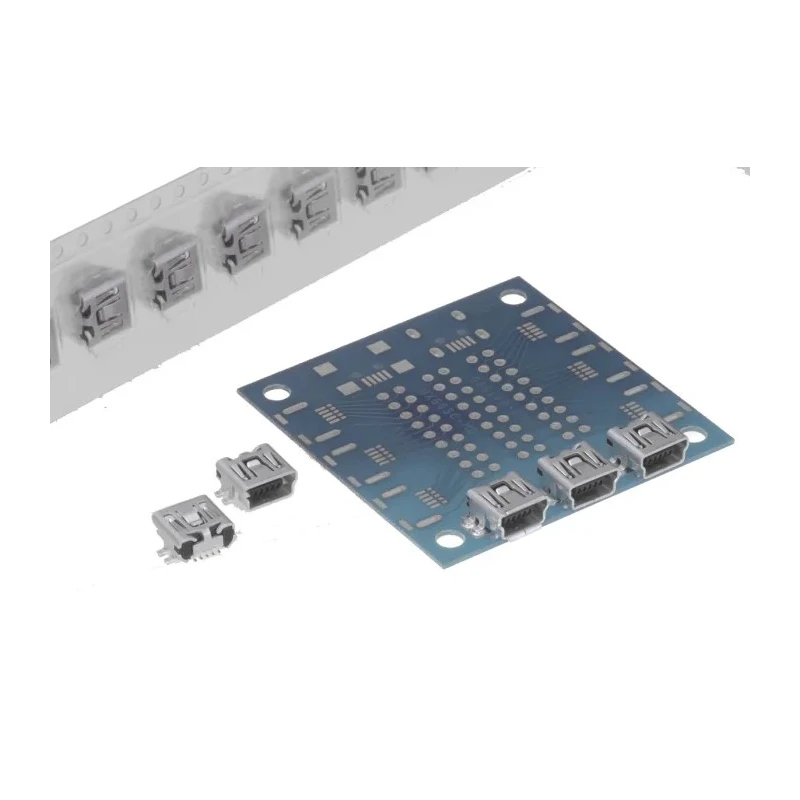

Hirose Right Angle Surface Mount Female USB Connector Mini USB Type B USB 2.0 UX60SC-MB-5ST(80)

Hirose UX60SC-MB-5ST(80) is a right angle surface mount female USB Connector designed to meet the Mini USB Type B USB 2.0 standard. It is part of the UX series from Hirose, engineered for reliable high-speed data transfer and electrical performance.

Constructed with copper alloy contacts and encased in a metal shield, this connector provides robust durability and effective EMI shielding. With a current rating of 1A and voltage capacity of 100V, it is suitable for a variety of electronic devices and modules requiring USB connectivity.

The connector supports surface mounting with solder terminations, providing ease of integration into SMT PCB designs. It operates over a temperature range from -30°C to 75°C, ensuring consistent performance in industrial, electronic, and commercial environments.

The low skew design minimizes signal distortion, making it ideal for applications requiring USB 2.0 data speeds. This connector is RoHS compliant, reflecting adherence to environmental and safety standards.

With 1 port and 5 contacts in a compact mini USB Type B format, this right angle connector is perfectly suited for devices where space and orientation constraints exist. It is made in China and is part of Hirose’s recognized UX series known for quality and reliability in connector technology.

The connector is a right angle type designed for surface mounting. Mini USB Type B interface suitable for USB 2.0 standard applications. Features a female connector gender and current rating of 1A. Operates reliably between temperatures of -30° C and +75° C.

Constructed with copper alloy contacts and a metal shield for durability and shielding. Termination type is solder, compatible with SMT PCB assembly. Supports voltage up to 100V for various electronic uses. RoHS compliant and designed with a low skew structure ensuring signal integrity.

Compact miniature design with 5 contacts ideal for space-constrained applications. Made in China with the Hirose UX series standard quality and reliability.

Suitable for industrial electronics, equipment manufacturing, electronic designing, and assembly lines requiring USB connectivity components. Explore more Hirose connectors and related electronic components on EnvMart.
