RS PRO USB Connector Panel Mount Female to Female 2 Port USB Type A to A USB 3.0 235-4748

Free Delivery in India | Lowest Global Shipping Charges

RS PRO USB Connector Panel Mount Female to Female 2 Port USB Type A to A USB 3.0 235-4748

Name: RS PRO USB Connector Panel Mount Female to Female 2 Port USB Type A to A USB 3.0 235-4748
Brand: RS PRO
SKU: 423326
Price: 36.13 USD
Availability: InStock



Category USB Connector Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Orientation	Straight
Operating Temperature	Min -20 °C, Max +50 °C
Model	235-4748
Mount Type	Panel
Current Rating	1.8 A max
Series	RS PRO
Number Of Ports	2
Termination Type	Plug-In
Maximum Operating Temperature	50°C
Insulation resistance	20 mΩ min
Frame	Diecast, Metal or black plated
Voltage Rating	30 V AC
Minimum Operating Temperature	-20°C
Interfaces	USB 3
USB Type	USB Type A to A
Shell	Nickel plated steel
Contact Resistance	50 mΩ max
Contacts	Gold Plated
Connector Gender	Female/Female
USB Specification	USB 3.0
Dielectric Withstanding Voltage	500V AC
Insert	ABS UL94 HB
Inner Over-mouldings	PE + PVC
USB 3.0 A-A FT metal frame, CSK holes, RS stock no	235-4748
USB 3.0 A-A FT Black metal frame, CSK holes, RS stock no	235-4749

Key Features

This connector features two USB Type A female ports.
It is designed for panel mounting with a slim, straight profile.
The USB 3.0 compliance provides SuperSpeed data transfer capabilities.
No soldering or punch termination is required; it offers push-fit installation.
Materials include ABS UL94 HB insert and nickel plated steel shell for durability.
It operates reliably between -20°C and 50°C ambient temperature.
The contacts are gold plated to ensure low contact resistance and stable signal transmission.
Ideal for telecommunications, Ethernet networking, audio sound boards, and computer applications.

Product Description

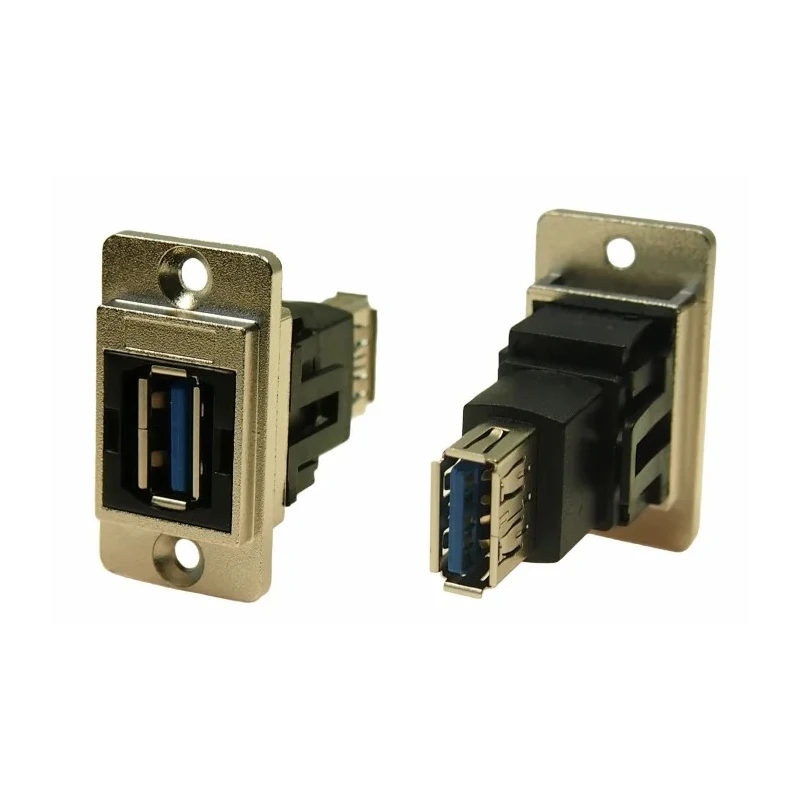

RS PRO 235-4748 USB Connector is a high-quality panel mount USB Type A to A feedthrough connector featuring dual female ports designed for USB 3.0 SuperSpeed compatibility. This slim straight connector allows for convenient front or rear panel mounting in enclosures or rack panels while occupying minimal space due to its low profile.

The connector's construction combines durable ABS UL94 HB insert material, a diecast metal or black plated frame, PE and PVC inner over-mouldings, and a nickel plated steel shell, providing robust mechanical and electrical performance.

The gold plated contacts ensure excellent conductivity with a maximum contact resistance of 50 milliohms and insulation resistance not less than 20 milliohms, supporting reliable high-speed data transmission.

Rated for 30 V AC and capable of carrying up to 1.8 A current, this connector also withstands a dielectric voltage of 500 V AC, making it suitable for demanding industrial and laboratory applications.

It operates efficiently within an ambient temperature range of -20°C to 50°C, making it well suited for various electronic equipment environments including telecommunications, network infrastructure, audio sound boards, and computer hardware.

This product includes dual USB 3.0 A-A female feedthrough connectors. The slim panel mount design enables easy installation without soldering or punch termination. Compatible with male USB 3.0 SuperSpeed cables for maximum data throughput.

Materials and plating enhance corrosion resistance and longevity. Provides reliable electrical connectivity and mechanical stability. Ideal for use in telecommunications network interfaces and computer peripheral connections.

This RS PRO product is a trusted choice for engineers and system integrators seeking dependable USB connectors with straightforward installation features and high performance. Explore a comprehensive range of USB Connectors and related accessories at EnvMart for industrial, laboratory, and commercial applications.
