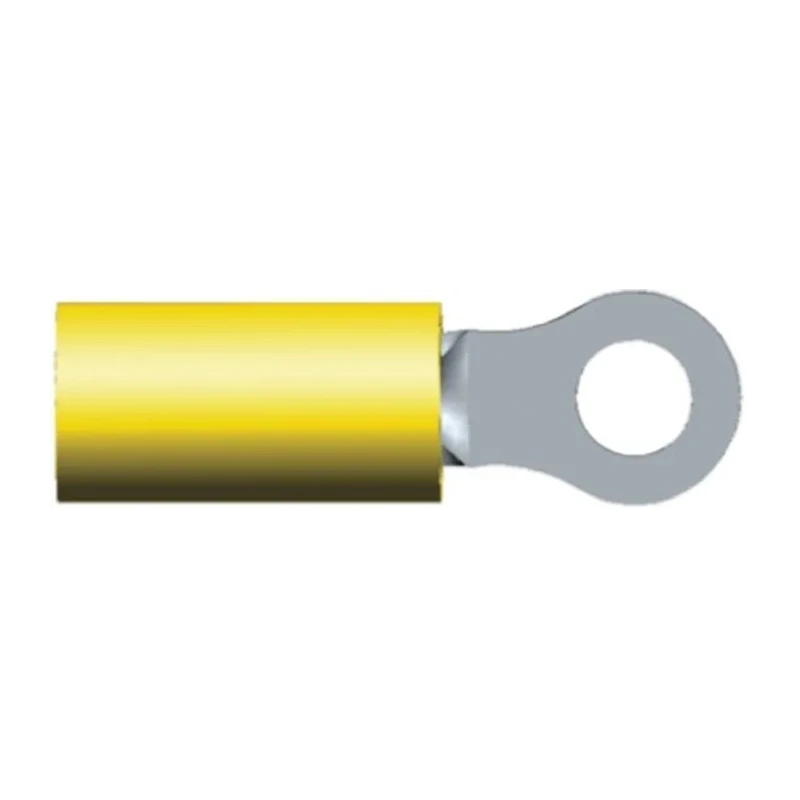

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 12 AWG to 10 AWG Wire Size Yellow 35787

TE Connectivity 35787 PIDG Insulated Ring Terminal offers a reliable and uniform crimp connection with an M4 stud size, supporting wires sized from 12 AWG to 10 AWG. This component features a high conductivity copper body with tin plating that ensures excellent electrical performance in industrial and commercial applications.

The ring terminal has a nylon insulation sleeve in yellow for clear wire size identification and enhanced safety. Its design includes an internal copper sleeve for superior wire insulation support, which minimizes the risk of fraying and damage.

This product is engineered to meet stringent standards including MIL-T-7928 Type II, Class 1 and 2, making it suitable for use in demanding electrical and electronic systems. Its maximum operating temperature of 105°C enables it to perform reliably under elevated temperatures.

The funnelled wire entry enables fast, accurate insertion of wire strands, supporting high-speed production lines and reducing assembly time. Serrations in the wire barrel guarantee strong mechanical and electrical contact after crimping, ensuring prolonged durability.

Typical industrial applications include instrumentation and control systems, panel wiring, aerospace systems, power supply wiring, lighting circuits, motors, and lifting equipment, among others.

Constructed with high conductivity copper body for reliable electrical contact. Copper sleeve inside wire barrel improves wire insulation support and prevents fraying. Serrations provide maximum tensile strength after crimping.

Yellow nylon insulation sleeve for wire size identification. Funnelled wire entry for easy wire insertion during crimping. Supports wire sizes 12 AWG to 10 AWG, suitable for various wiring needs. Maximum operating temperature is 105°C, suitable for harsh environments.

Complies with MIL-T-7928 Type II, Class 1 and 2 for high reliability.

Ideal for use in industrial manufacturing, electrical installation, aerospace, automotive, and control panel assembly. This terminal ensures performance and safety across a wide range of demanding applications.
