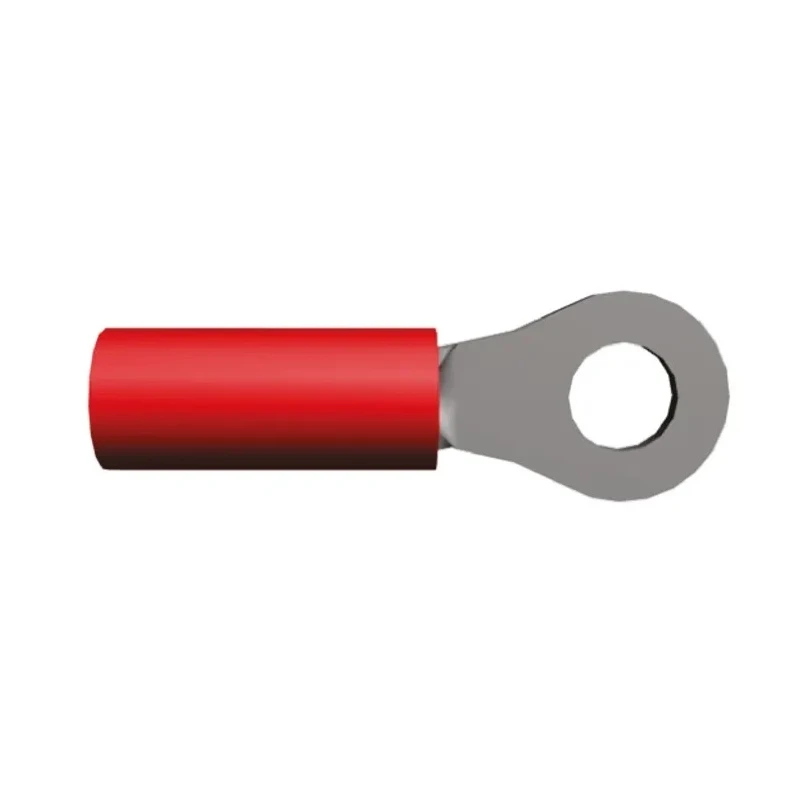

RS PRO PIDG Insulated Ring Terminal M3.5 Stud Size 22 AWG 16 AWG Wire Size Red 51863-1

TE Connectivity 51863-1 PIDG Insulated Ring Terminal designed for reliable electrical connections with M3.5 stud size compatibility. This terminal supports wire sizes ranging from 22 AWG to 16 AWG, with a distinctive red nylon insulation for quick size differentiation and enhanced electrical insulation.

The terminal features a high conductivity copper body and barrel with internal serrations that guarantee maximum contact and tensile strength after crimping. A copper sleeve surrounds the wire barrel to improve insulation support and prevent fraying, contributing to long-lasting and secure wire connections. The funnelled wire entry design allows fast and reliable wire insertion, ideal for high-speed production environments.

With an overall length of 19.86 mm, thickness of 0.79 mm, outer ring diameter of 6.35 mm, and an inner ring diameter of 3.68 mm, the terminal is designed for precision fit and durability. It is rated for maximum operating temperatures up to 105°C, making it suitable for demanding industrial, automotive, aerospace, lighting, power supply, and control panel applications.

These PIDG terminals provide a uniform and reliable crimp, meeting the needs of complex electrical circuits and harsh operating conditions. The colour-coded red insulation facilitates correct wire size and tooling recognition.

High conductivity copper body ensures efficient electrical flow. Copper sleeve improves wire insulation support preventing fraying. Serrated barrel offers strong contact and tensile strength. Red nylon sleeve allows quick wire size identification.

Funnelled wire entry supports easy and fast insertion. Designed for industrial, aerospace, automotive, and power supply applications. Rated for maximum temperature of 105°C for durable performance. Precision dimensions allow reliable mechanical and electrical fit.

Manufactured in United States to high-quality standards. Explore more TE Connectivity products and similar ring terminals at EnvMart for your industrial and electronic connector needs.
