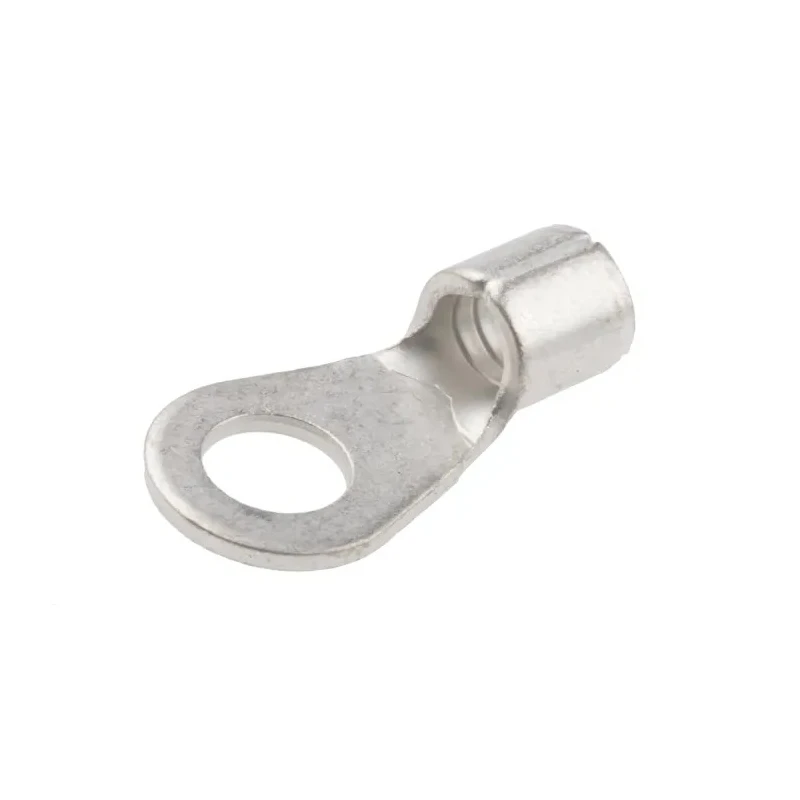

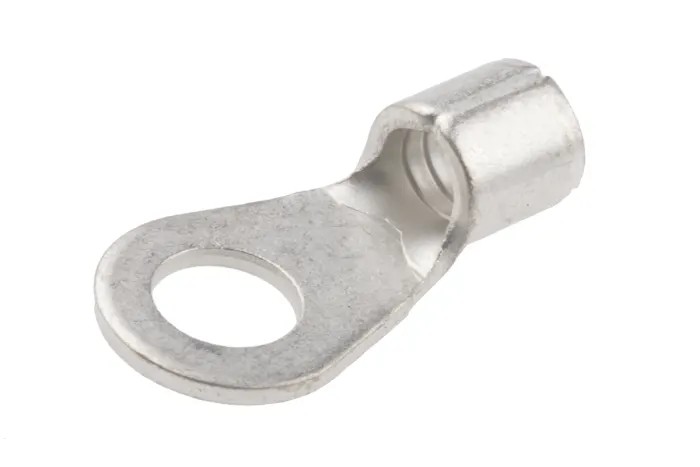

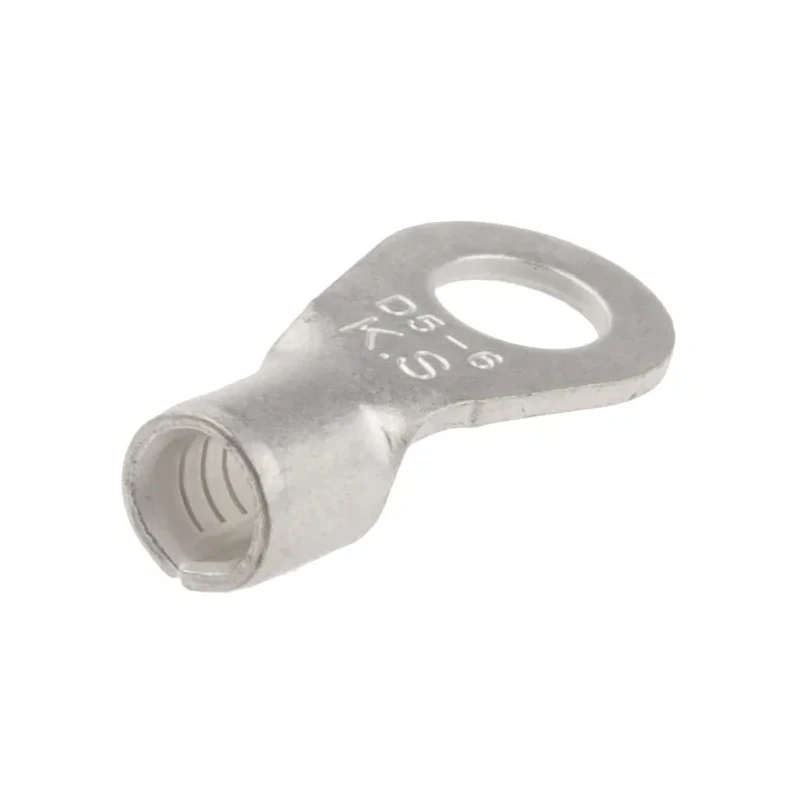

RS PRO Uninsulated Ring Terminal 10 Stud Size, 12 AWG to 10 AWG Wire Size, Copper Tin-Plated, Grey 809-2256
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Grey |
| THICKNESS | 1mm |
| Model | 809-2256 |
| Insulation | Uninsulated |
| Overall Length | 20mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 Electrostatic Control Standard |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 10mm |
| Inner Ring Diameter | 5.3mm |
| Stud Size | 10 |
| Standards/ApprovalsRoHS, ANSI/ESD S20.20 | 2021 Electrostatic Control Standard |
Key Features
- Constructed of highly conductive copper with tin plating for corrosion resistance.
- Uninsulated design allows reliable crimps directly on wires without added sleeve.
- Outer ring diameter measures 10 mm with 5.3 mm inner ring diameter.
- Overall length is 20 mm and thickness of 1 mm supports industrial applications.
- Suitable for electrical installations and cable connections requiring secure termination.
- Operates safely up to 150°C temperature and withstands down to -40°C.
- Ideal for use in power connections, battery terminals, and electrical control equipment.
- Colour coded grey for easy identification.
Product Description
RS PRO 809-2256 uninsulated ring terminal is a high-quality copper electrical connector designed for crimping onto 12 AWG to 10 AWG wires. The terminal features a 10 stud size suitable for mounting securely on electrical posts or battery terminals. Its uninsulated construction consists solely of a copper ring with tin plating, ensuring excellent electrical conductivity and corrosion resistance while allowing direct crimp connection without insulation sleeves.
This ring terminal has an inner ring diameter of 5.3 mm and an outer ring diameter of 10 mm. The overall length is 20 mm and its thickness of 1 mm supports robust mechanical strength for electrical installations. The grey colour coding aids easy identification of wire size compatibility in wiring looms and assemblies.
Certified to meet RoHS environmental compliance and the ANSI/ESD S20.20:2021 Electrostatic Control Standard, it can handle temperatures from -40°C up to 150°C, making it suitable for industrial, commercial, and automotive electrical applications. Its copper construction with brazed seams ensures superior electrical performance and durability in demanding environments.
Made from tin-plated copper for enhanced conductivity and corrosion resistance. Uninsulated design for applications requiring direct crimping on the wire conductor. Measures 20 mm in length and 1 mm thick for mechanical reliability.
Fits 12 AWG to 10 AWG wire sizes and mates with 10 stud size terminals. Compliant with RoHS and ANSI/ESD S20.20 for electrostatic control. Operates safely within a wide temperature range from -40°C to 150°C. Grey colour coding for easy wire size identification.
Commonly used in electrical installations, circuitry, power distribution, and battery connections. Origin: Taiwan, Province Of China.
This RS PRO model 809-2256 uninsulated ring terminal is a reliable choice for electrical engineers and technicians requiring quality terminations for wire-to-post connections in industrial, laboratory, commercial, HVAC, manufacturing, and electrical maintenance settings.
Explore EnvMart's full range of electrical connectors for compatible accessories and complementary wiring solutions.
Explore more products in our Electrical Connectors and Terminals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This uninsulated ring terminal is compatible with 12 AWG to 10 AWG wire sizes, which corresponds to a minimum wire size of 2.5 mm² and a maximum wire size of 6 mm².
The maximum operating temperature for this model is 150°C, making it suitable for various industrial and commercial applications.
The inner ring diameter measures 5.3 mm, while the outer ring diameter is 10 mm, allowing for secure connections on electrical posts or battery terminals.
This terminal is constructed from copper with tin plating, which enhances electrical conductivity and provides corrosion resistance.
It complies with RoHS environmental standards and the ANSI/ESD S20.20:2021 Electrostatic Control Standard, ensuring it meets specific safety and environmental criteria.
The overall length of this ring terminal is 20 mm, and it has a thickness of 1 mm, providing mechanical reliability for electrical installations.
This model features an uninsulated design, allowing for direct crimping onto wire conductors without the need for insulation sleeves.
The stud size for this terminal is 10, which allows it to be securely mounted on compatible electrical posts or battery terminals.
The terminal is color-coded grey, which aids in easy identification of wire size compatibility in wiring looms and assemblies.
It is suitable for use in industrial, commercial, and automotive electrical applications, given its wide operating temperature range and robust construction.
The tin plating on this copper terminal enhances its electrical performance by improving conductivity and providing resistance to corrosion, which is essential for reliable connections.
This model is manufactured in Taiwan, ensuring compliance with international standards and quality controls.
