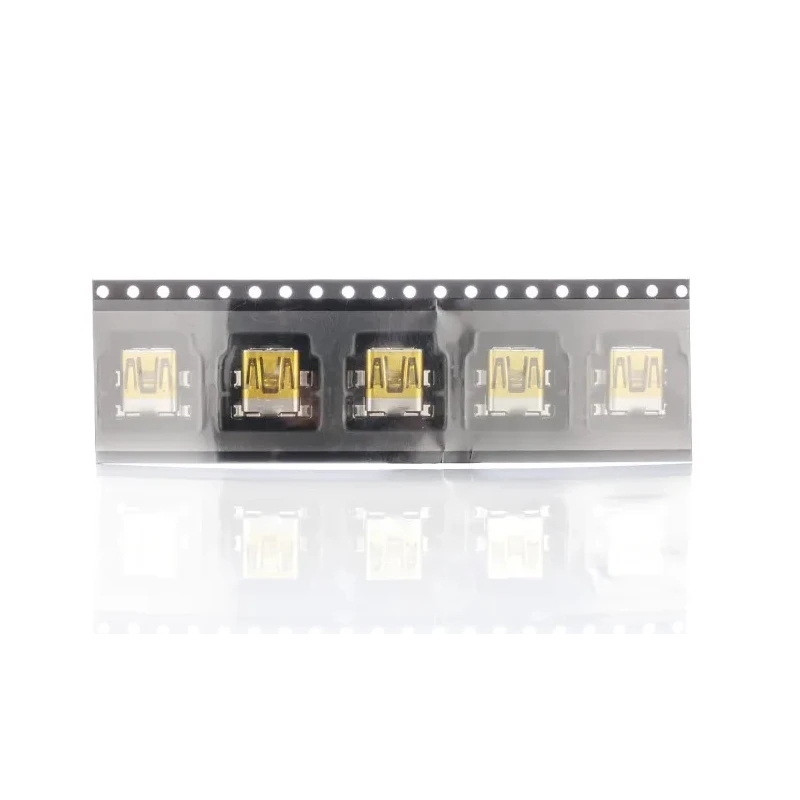

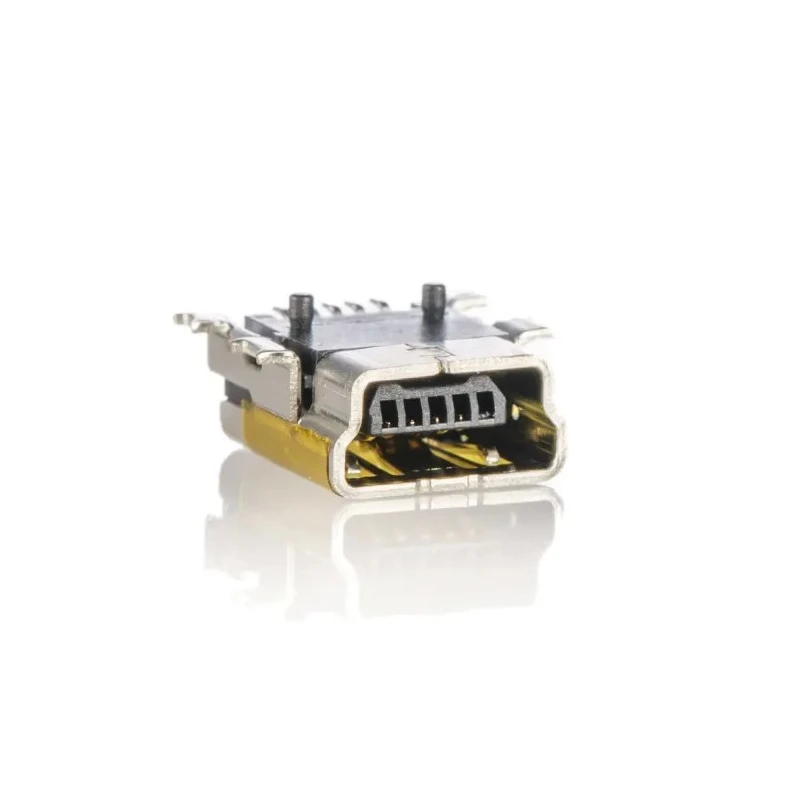

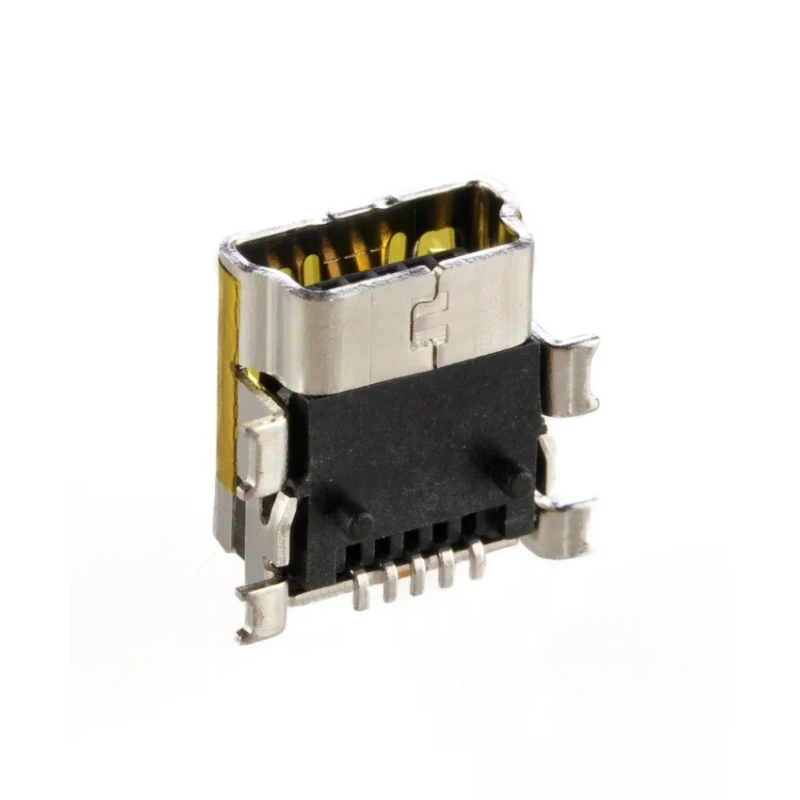

Molex Right Angle Surface Mount Female USB Connector Mini USB Type B 30V 1A USB 2.0 67503-1020

Molex 67503-1020 is a Right Angle Surface Mount Female USB Connector with Mini USB Type B interface designed to meet USB 2.0 specifications. It provides high-speed data transfer of up to 480 Mbps, making it ideal for reliable connection between fixed and mobile devices.

This USB connector supports a voltage rating of 30V and current capacity of 1A, suitable for various electronic and computer peripheral connections. Its compact size and right-angle orientation help save space on printed circuit boards, while the surface mount termination ensures a secure and robust soldered joint.

The connector uses gold-plated copper alloy contacts which enhance electrical conductivity and signal integrity. It operates effectively within temperature ranges of 0°C to 50°C, allowing usage in harsher environments with consistent performance.

The 5-pin pitch design minimizes mounting space requirements, beneficial for dense electronic assemblies. The connector is also engineered to resist Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI), preserving data signal clarity essential for USB On-The-Go (OTG) functionality.

This model is part of Molex’s 67503 series manufactured in China, offering proven durability and compatibility with USB 2.0 compliant hardware including automotive panel mounts and computer peripherals such as mice and keyboards.

Supports USB 2.0 specification with 30V voltage rating and 1A current capacity. Compact right angle orientation for efficient PCB space usage. Surface mount termination using solder for reliable connection. Constructed with gold-plated copper alloy contact material for superior conductivity.

Operates in ambient temperatures from 0°C to 50°C for versatile application environments. Features a 5-pin pitch reducing mounting footprint on printed circuit boards. Designed for connection of peripherals including automotive panel and computer hardware.

Resistant to electromagnetic and radio frequency interference for stable signal transmission. Mini USB Type B form factor compatible with USB On-The-Go (OTG) supplement Rev. 1.0. Manufactured in China under Molex's 67503 series for durable and consistent performance.

This Molex USB Connector is suitable for electronic, industrial, automotive, and commercial applications ensuring reliable data transmission in demanding environments. Explore the wide range of Molex connectors on EnvMart for your diverse electronics and connectivity needs.
