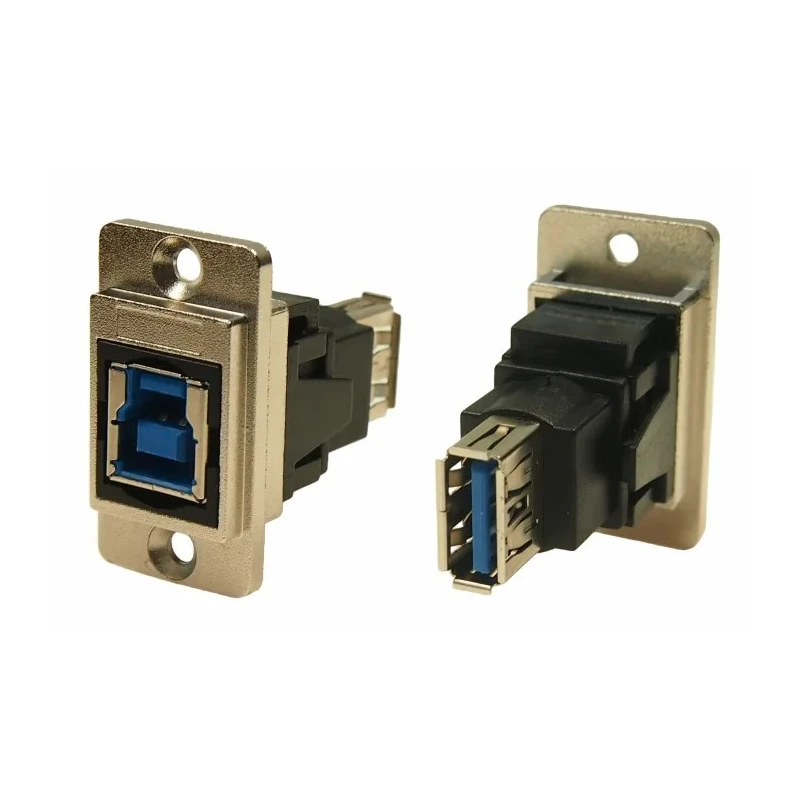

RS PRO USB Connector Panel Mount Female/Female 2 Port USB Type B to A USB 3.0 235-4750

RS PRO 235-4750 USB Connector is a USB 3.0 panel mount connector featuring a straight, female/female dual port configuration for USB Type B to A connections. It provides a slim profile ideal for custom electronic enclosures and rack panels where space is minimized while maintaining excellent data transfer rates.

This connector supports USB 3.0 SuperSpeed technology, ensuring high-speed communication compatible with male USB 3.0 SuperSpeed cables. The dual ports allow simultaneous connections using a compact footprint suitable for telecommunication, Ethernet networking, and audio sound board interfaces.

Manufactured with a durable ABS UL94 HB insert, the frame is crafted from diecast metal with nickel or black plating, while the outer shell is nickel-plated steel for enhanced mechanical strength and corrosion resistance. Contacts are gold plated to reduce signal degradation, delivering high reliability in diverse industrial environments.

The installation process is user-friendly, requiring no soldering or punch termination; simply push-fit the connector through a standard rectangular panel cut-out and fix it with retaining screws. Its low rear profile design facilitates mounting in confined spaces without compromising accessibility.

This product operates reliably within a temperature range from -20°C to 50°C, with a voltage rating of 30 V AC and a maximum current rating of 1.8 A, meeting the demanding requirements of industrial and commercial applications.

Supports USB 3.0 SuperSpeed data transfer standards. Dual female 2 port USB Type B to A configuration for versatile connection options. Panel mount with front and rear mounting capability using retaining screws. Plug-in termination type for quick, solderless installation.

Constructed with ABS insert and diecast, nickel-plated frame for durability. Gold plated contacts to ensure minimal contact resistance and signal quality. Voltage rating of 30 V AC and current rating of 1.8 A max for efficient power handling.

Compact slim design suitable for space-constrained installations in telecom and networking equipment. Reliable operation between -20°C and 50°C ambient temperatures.

This RS PRO model 235-4750 USB connector is an ideal choice for industrial, laboratory, telecommunications, networking, and audio-video applications where high-speed data transfer and secure panel mounting are essential. Its robust construction and ease of installation add value to any electronic assembly project.
