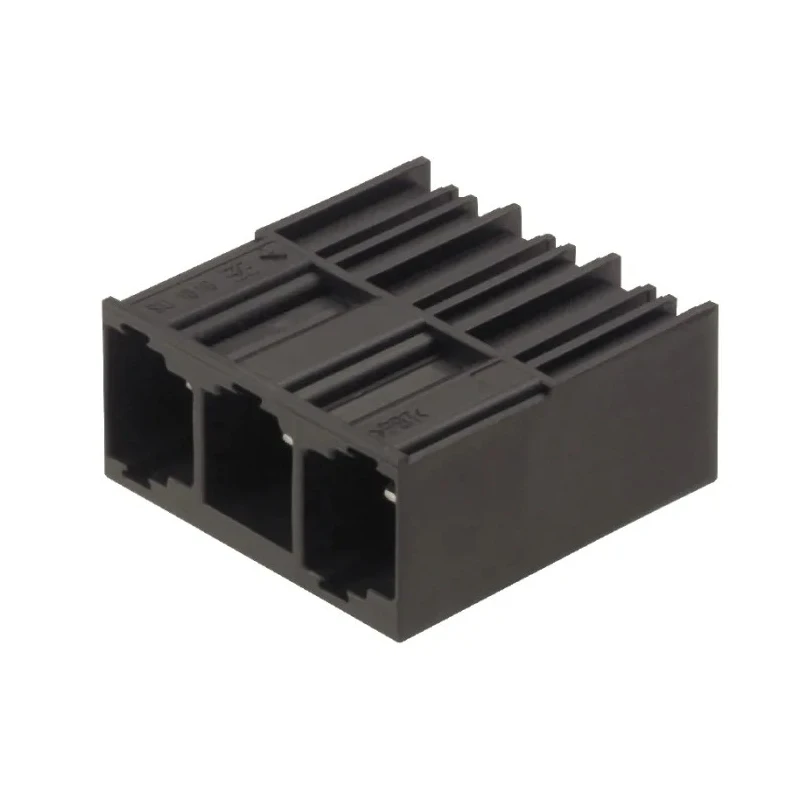

Weidmüller PCB Connector 3-Contact 10.16 mm Pitch 1 Row 1kV 60A Fibreglass Reinforced Polybutylene Terephthalate 1813340000

Weidmüller 1813340000 PCB Connector is a high-performance electrical connector designed for printed circuit board applications. It features a fibreglass reinforced polybutylene terephthalate housing that ensures mechanical stability and resistance to heat, chemicals, and environmental factors. Rated to carry currents up to 60A and withstand voltages of up to 1kV, this connector is suitable for demanding industrial and electronic environments.

This connector has a single-row configuration with 3 male contacts spaced at a 10.16 mm pitch, making it ideal for side-by-side mounting on PCBs. The 90° orientation allows for an outgoing elbow design, facilitating optimal wire connection via soldering. The pin length of 3.5 mm is optimized for wave soldering processes, enhancing assembly efficiency and connection reliability.

Standards compliance includes IEC 61984 ensuring safety and performance of connectors, UL 1059 for industrial control equipment, RoHS for hazardous substance reduction, and IEC 60664-1 for insulation coordination, certifying this connector’s suitability for global markets and stringent industrial use.

The compact dimensions of 30.48 mm length, 32 mm depth, and 13.16 mm width allow integration in various electronic assemblies without sacrificing space. The design includes a patented flange that enables fast locking without tools and a mating profile that prevents incorrect connections, featuring unique coding diversity for enhanced operational safety.

Manufactured in the Czech Republic, this connector emphasizes quality control and build precision. Applications include industrial controls, automation systems, power electronics, and other demanding PCB mounting requirements.

Constructed with fibreglass reinforced polybutylene terephthalate housing for durability. Rated for high current capacity of 60A and voltage of 1kV. Single-row design with 3 male contacts and 10.16 mm pitch. Orientation is 90° for side-beside PCB mounting.

Complies with IEC 61984, UL 1059, RoHS, and IEC 60664-1 standards. Measures 30.48mm in length, 32mm in depth, and 13.16mm in width. Optimized pin design for wave soldering with 3.5mm pin length. Manufactured in Czech Republic ensuring quality and reliability.
