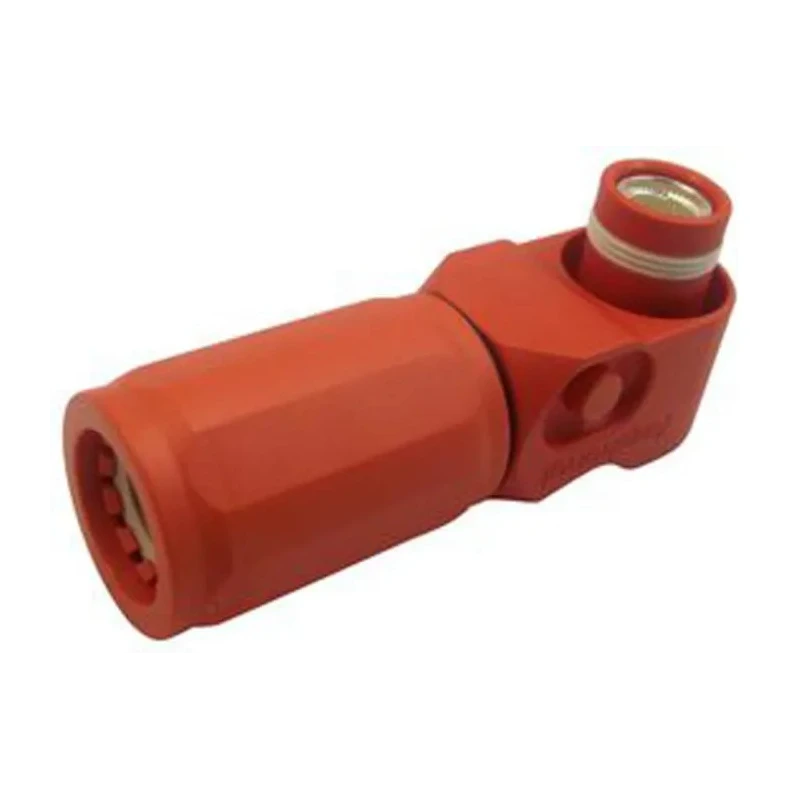

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Male 120A, 1000V, Crimp Termination SLPPA25BSO / C10-730186-000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 120A |
| Height | 58.8mm |
| Model | SLPPA25BSO / C10-730186-000 |
| Depth | 22.6mm |
| IP Rating | IP67 |
| Connector Type | RADSOK |
| Width | 18mm |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | SURLOK PLUS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pin Diameter | 5.7mm |
| Number of Rows | 1 |
| Wire size | 25mm² |
| Operating Voltage | 1000V |
| For Use With | SurLok 1-Position Receptacle |
| Standards/Approvals | UL 94-V0 |
| Number of Contacts | 1 |
| Contact Gender | Female |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
Key Features
- This plug features R4 Radsock technology ensuring high tensile strength and excellent conductivity.
- Rated for 120A current with IP67 environmental sealing for reliable outdoor use.
- The connector supports 25mm² wire size and has a 5.7mm pin diameter.
- Thermoplastic housing and copper alloy contacts provide durability and corrosion resistance.
- Operating temperature ranges from -40°C to 125°C for versatile application environments.
- Connector body is orange with a right-angle orientation and is keyed to prevent mismating.
- Flammability rating complies with UL 94-V0 standards for safe industrial use.
- Commonly used in electric vehicle systems, process control, medical devices, battery management, and rail mass transit.
Product Description
Amphenol Industrial SLPPA25BSO / C10-730186-000 SURLOK PLUS RADSOK EV Connector Male 120A is a premium automotive electrical connector optimized for demanding EV and industrial environments. Designed to operate at up to 1000 volts and carry currents up to 120 amperes, this connector features a compact, quick-mating compression lug design that assures a robust, reliable connection.
The connector adopts R4 Radsock technology to provide an exceptionally high tensile strength connection combined with a highly conductive surface area. Its plug rotates 360 degrees and includes touch-proof and spring locking features for secure and safe engagement. The keyed design prevents mismating, further ensuring installation safety.
Constructed with thermoplastic housing and copper alloy contacts, it offers excellent durability, corrosion resistance, and a flammability rating conforming to UL 94-V0. The connector's IP67 rating guarantees protection against dust and water ingress, suitable for outdoor and harsh industrial conditions. Operating temperature ranges from -40°C to 125°C make it suitable for various climates and applications.
This male connector terminates to 25mm² wires with crimp termination and includes a 5.7mm pin diameter. Its right-angle orientation and bright orange color aid in easy identification during assembly and maintenance.
The SurLok Plus series connectors are widely used in electric vehicle applications (EV/HEV), rail mass transit, process control systems, medical devices, and battery management or energy storage systems. Its reliable locking and environmental sealing make it invaluable for critical applications requiring sustainability and safety.
This plug features R4 Radsock technology ensuring high tensile strength and excellent conductivity. Rated for 120A current with IP67 environmental sealing for reliable outdoor use. The connector supports 25mm² wire size and has a 5.7mm pin diameter.
Thermoplastic housing and copper alloy contacts provide durability and corrosion resistance. Operating temperature ranges from -40°C to 125°C for versatile application environments. Connector body is orange with a right-angle orientation and is keyed to prevent mismating.
Flammability rating complies with UL 94-V0 standards for safe industrial use. Commonly used in electric vehicle systems, process control, medical devices, battery management, and rail mass transit. Explore more high-quality EV Connectors and power connectors in the Amphenol Industrial range at EnvMart, your destination for reliable industrial electrical components.
