Amphenol Industrial SLP Receptacle EV Connector Female 1500V 350A Panel Mount IP67 SLPIRCTPSR1

Free Delivery in India | Lowest Global Shipping Charges

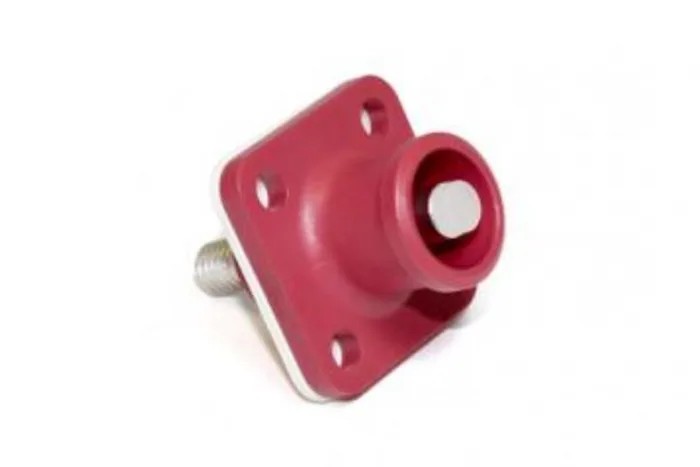

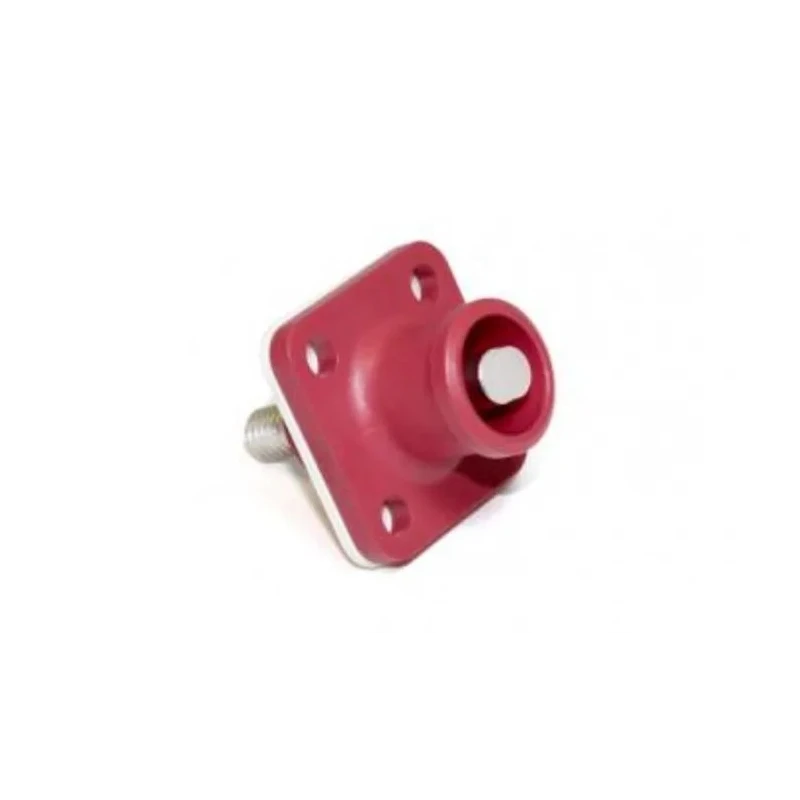

Amphenol Industrial SLP Receptacle EV Connector Female 1500V 350A Panel Mount IP67 SLPIRCTPSR1

Name: Amphenol Industrial SLP Receptacle EV Connector Female 1500V 350A Panel Mount IP67 SLPIRCTPSR1
Brand: Amphenol Industrial
SKU: 176960
Price: 37.64 USD
Availability: InStock



Category EV Connector Brand Amphenol Industrial Condition New

Specifications

Country of Origin	China
Brand	Amphenol Industrial
Colour	Red
Orientation	Straight
Current	350A
Height	31mm
Model	SLPIRCTPSR1
Depth	48mm
IP Rating	IP67
Connector Type	Receptacle
Width	31mm
Mount Type	Panel
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	SLP
Termination Type	Threaded Post
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Pin Diameter	10.3mm
Number of Rows	1
Operating Voltage	1500V
Standards/Approvals	TUV, RoHS Compliant, UL
Number of Contacts	1
Contact Gender	Female
Connector Gender	Female
Better World Claim	Renewable Energy Solution

Key Features

Designed for panel mount with flange and screw termination.
Rated IP67 for dust and water resistance.
Constructed with copper alloy contacts and thermoplastic housing.
Operates reliably from -40°C to 125°C temperature range.
Features 10.3mm RADSOK pin diameter ensuring excellent conductivity.
Straight orientation with threaded post termination type.
Complies with TUV, RoHS, and UL standards for safety and quality.
Red colored housing for easy identification in EV systems.

Product Description

Amphenol Industrial SLPIRCTPSR1 is a high-performance SLP series receptacle EV connector designed for electric vehicle applications. This female connector supports a high current of 350A and an operating voltage up to 1500V, making it suitable for demanding power delivery needs.

The connector features a single row with one contact and utilizes a threaded post termination for secure connection. It has a straight orientation and panel mount type with flange, ensuring reliable mounting on EV panels.

Constructed with copper alloy contacts and a robust thermoplastic housing, the connector provides durability and excellent electrical conductivity. It offers an IP67 ingress protection rating, ensuring performance against dust and water exposure in industrial and automotive environments.

The device functions reliably within a broad temperature range from -40°C minimum to a maximum of 125°C. The pin diameter is 10.3mm RADSOK, supporting efficient current flow and connectivity.

Certified to meet TUV, RoHS compliance, and UL standards, this connector contributes to safe and sustainable EV solutions. Its red color aids easy identification and system integration.

This product is made in China and is a part of Amphenol Industrial's SLP series, supporting sustainable industrial applications especially in renewable energy and electric vehicle sectors.

Designed for panel mount with flange and screw termination. Rated IP67 for dust and water resistance. Constructed with copper alloy contacts and thermoplastic housing. Operates reliably from -40°C to 125°C temperature range.

Features 10.3mm RADSOK pin diameter ensuring excellent conductivity. Straight orientation with threaded post termination type. Complies with TUV, RoHS, and UL standards for safety and quality. Red colored housing for easy identification in EV systems.

Single row, single contact receptacle connector suitable for harsh environments.

Amphenol Industrial EV Connectors provide reliable electrical connections critical for electric vehicle functionality, industrial power applications, and renewable energy systems. Explore our extensive category for related products that meet your electrical connectivity needs.
