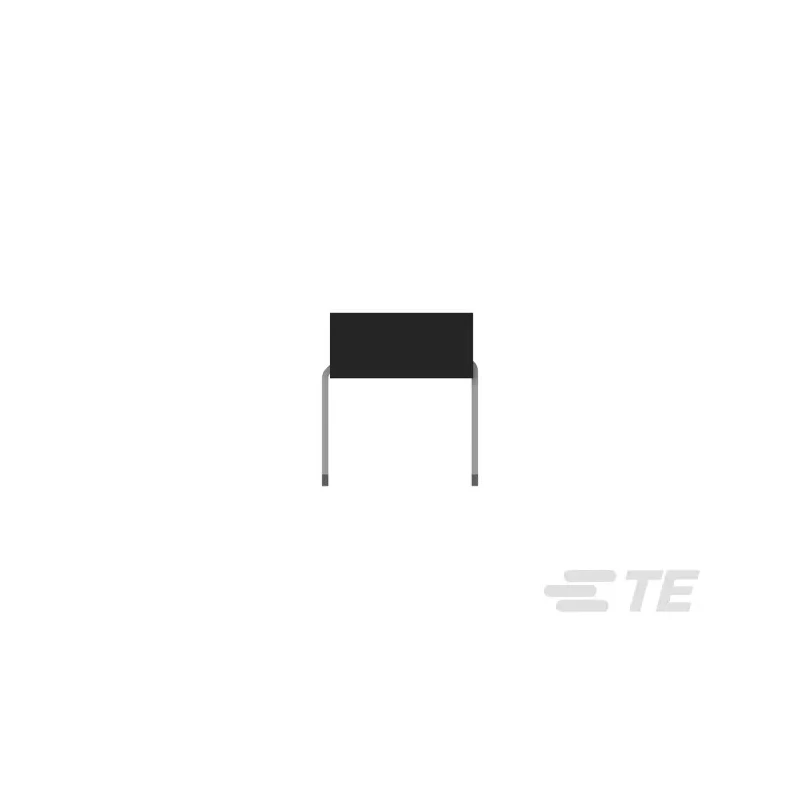

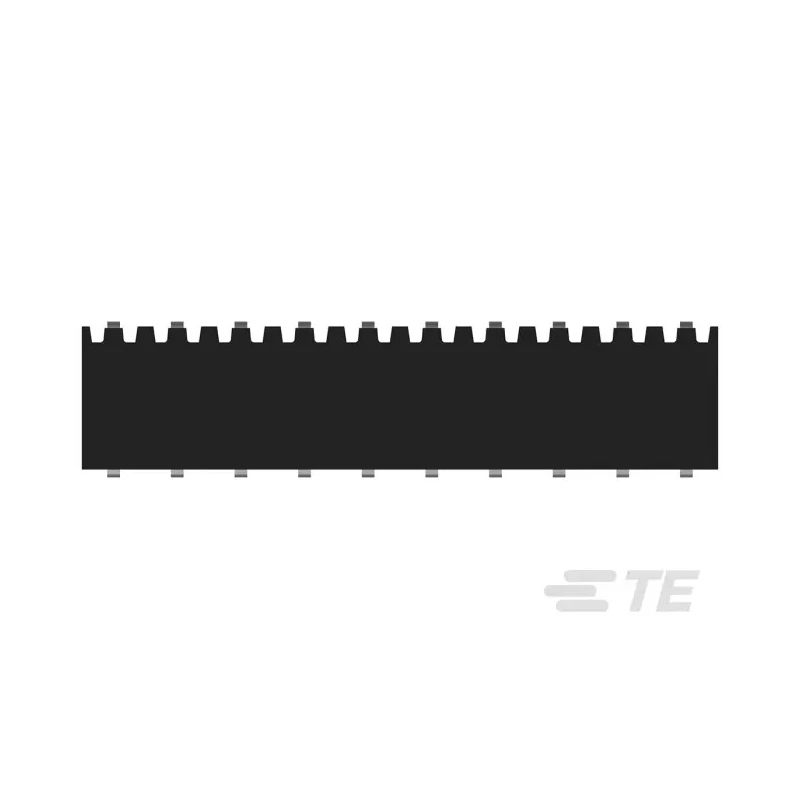

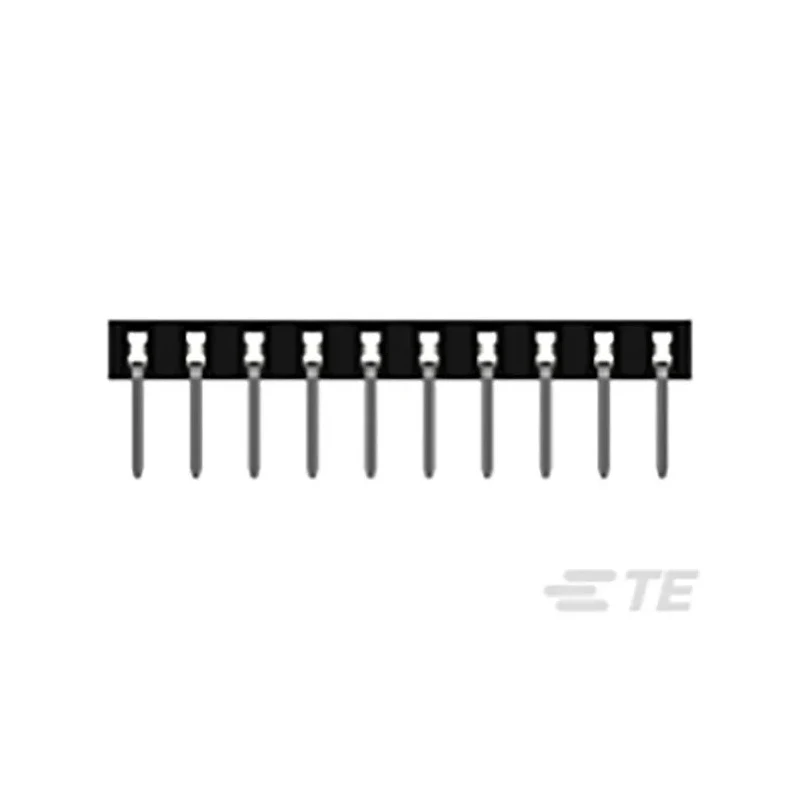

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket, 10-Contact, 1 Row, 2 mm Pitch, 12A, 650V 1-2314936-0

TE Connectivity 1-2314936-0 AMPMODU Series Straight Through Hole PCB Socket is a precision-engineered connector designed for board-to-board electrical interconnection, featuring 10 contacts in a single row with a 2 mm pitch. The socket housing is made from liquid crystal polymer, providing excellent mechanical strength and thermal stability suitable for harsh industrial environments. This connector supports a current rating of 12A and a voltage of 650V, ensuring reliable power and signal transmission.

The contact elements are bronze with nickel-plated and tin plating, contributing to corrosion resistance and longevity. This socket utilizes dual beam receptacle contacts to maintain two-point electrical stability, optimizing connection security during operation and assembly. The socket mounts through the PCB via through-hole technology with a straight orientation, simplifying board design and manufacturing processes.

Operating temperature ranges from -65°C to 105°C, making it suitable for a wide range of applications including industrial controls, servo drives, instrumentation, and building automation systems. Its halogen-free and low halogen composition reflect environmentally conscious manufacturing standards. The compact 2 mm pitch design occupies 38% less PCB space compared to standard 2.54 mm pitch connectors, enabling extended functionality in space-constrained layouts.

Installation and assembly are facilitated by compatibility with headers and receptacles for board stacking configurations. The product is available in various packaging forms such as tube, tape, and reel, accommodating diverse production needs.

Constructed with liquid crystal polymer housing for durability and reliability. Supports a current rating of 12A and voltage up to 650V. Features nickel-plated and tin contact plating with bronze contact material. Designed for through-hole mounting with straight orientation for easy PCB integration.

Operates reliably between -65°C and 105°C temperature range. Offers dual beam receptacle contact for enhanced electrical stability. Compatible with board-to-board stacking using headers and receptacles. Environmentally friendly with halogen-free and low halogen construction.

Ideal for industrial controls, servo drives, and instrumentation applications. Available in multiple packaging options including tube, tape, and reel.

This TE Connectivity PCB socket is an excellent choice for industrial, manufacturing, laboratory, and commercial electronic assembly requiring high-density, reliable board-to-board connection solutions. Browse EnvMart for more high-performance connectors and electronic components.
