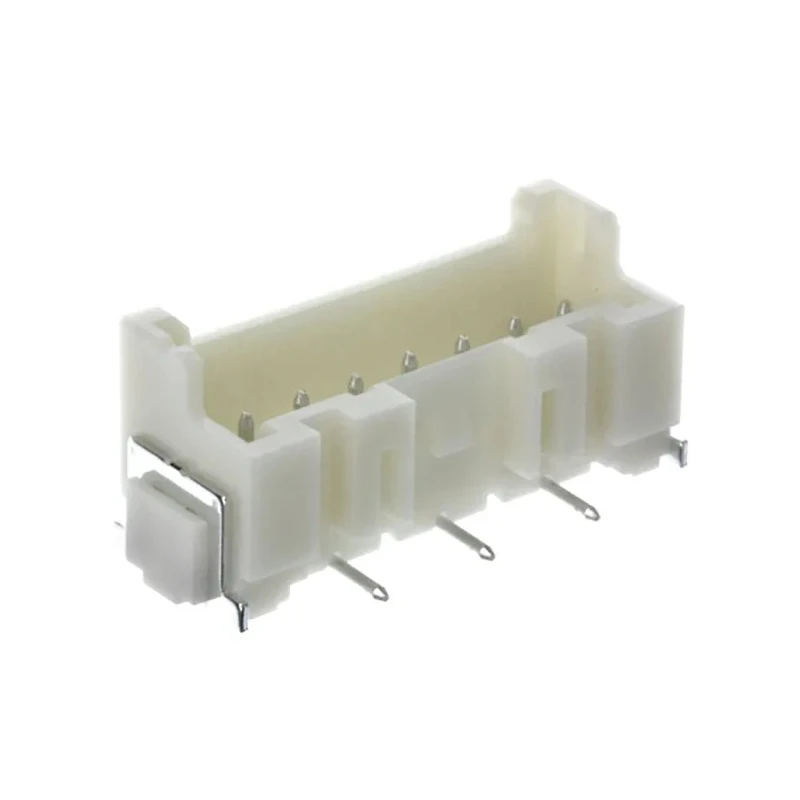

JST XA Series 2.5mm Pitch Straight Surface PCB Header, 7 Contacts, 1 Row, Shrouded BM07B-XASS-TF (LF)(SN)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Straight |
| Current | 3A |
| Model | BM07B-XASS-TF (LF)(SN) |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | XA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a shrouded design enhancing connection security and safety.
- Equipped with a locking ramp for secure mating and vibration resistance.
- Constructed with copper alloy contacts plated with tin for corrosion resistance.
- Housing is made of glass-filled PA66 nylon, preventing solder cracking.
- Insertion guides and polarization bosses ensure proper alignment on the PCB.
- Supports a current rating of 3 A at 250 V with a temperature range from -25°C to 85°C.
- Designed for surface mount assembly with solder termination type.
- Rounded header pins are reflow treated to provide low insertion force.
Product Description
JST BM07B-XASS-TF (LF)(SN) XA Series Straight Surface PCB Header is a high-performance wire-to-board connector designed with a 2.5 mm pitch, 7 contacts, and a single row configuration. Its shrouded housing ensures secure connections, incorporating a locking ramp to prevent disconnection during assembly or under vibration stresses.
The copper alloy contacts with tin plating provide excellent conductivity and corrosion resistance. Rounded and reflow-treated header pins significantly reduce insertion force, facilitating efficient PCB assembly. Additional features include insertion guides and polarization bosses to ensure precise alignment and ease of insertion, reducing assembly errors.
This PCB header operates safely within a temperature range from -25°C to 85°C and supports voltages up to 250 V with a current rating of 3 A, making it suitable for various electronic and industrial applications requiring reliable board connections.
Its surface mount design and solder termination type enable compatibility with automated assembly lines in electronics manufacturing, enabling high throughput and consistent quality.
Applications include electronic devices, power supply connections, industrial equipment, embedded systems, and other electrical assemblies requiring secure and precise wire-to-board interfaces.
Features a shrouded housing to enhance connection security. Locking ramp device ensures stable mating and vibration resistance. Copper alloy contacts with tin plating for durability and conductivity. Glass-filled PA66 nylon housing prevents solder cracking issues.
Insertion guides and polarization bosses for easy, precise PCB insertion. Temperature range from -25°C to 85°C suitable for industrial use. Supports 3 A current at 250 V, meeting standard electronic requirements. Surface mount solder termination enables automated manufacturing.
Explore the comprehensive range of JST PCB Connectors and headers at EnvMart for your electronic design and manufacturing needs.
